DESCRIPTION

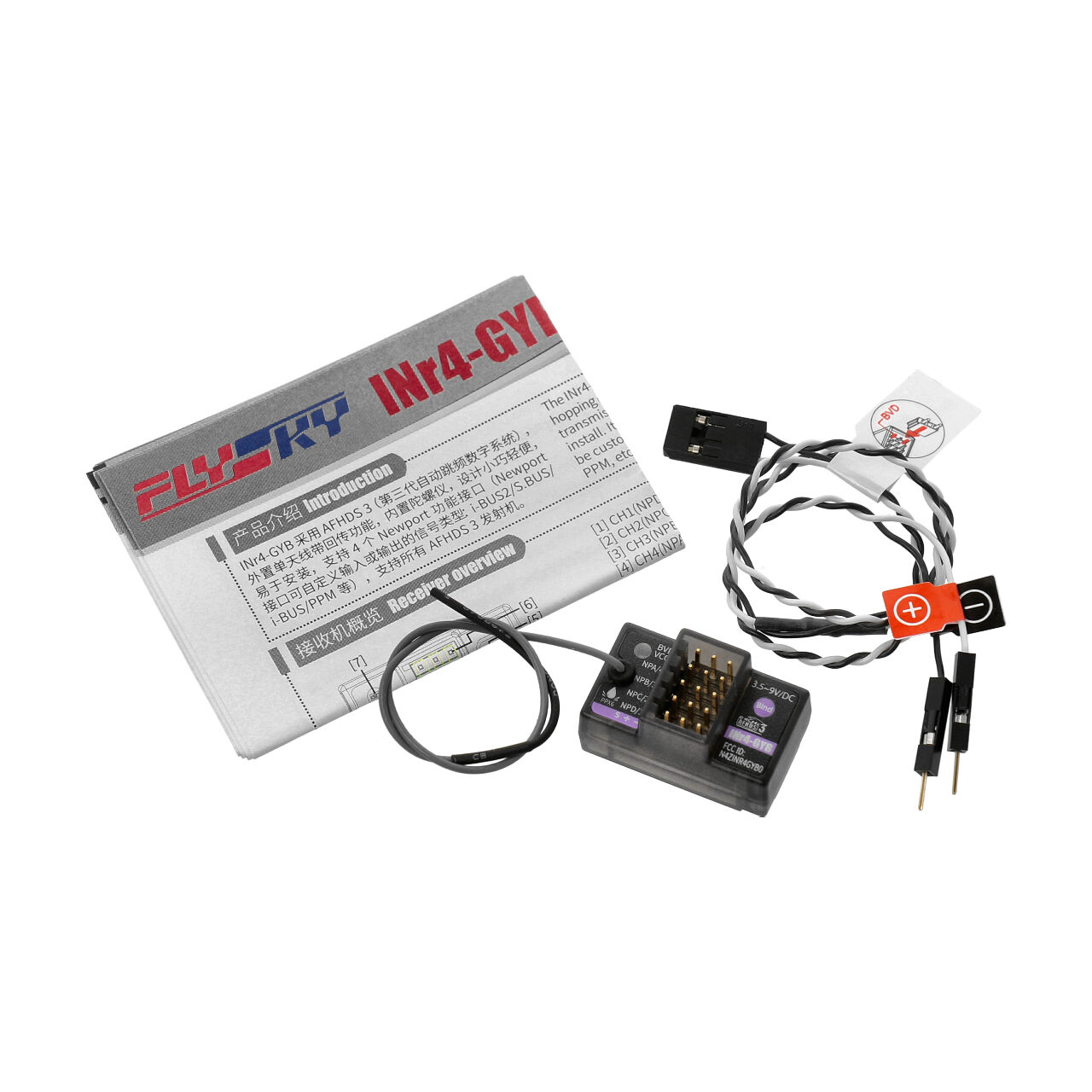

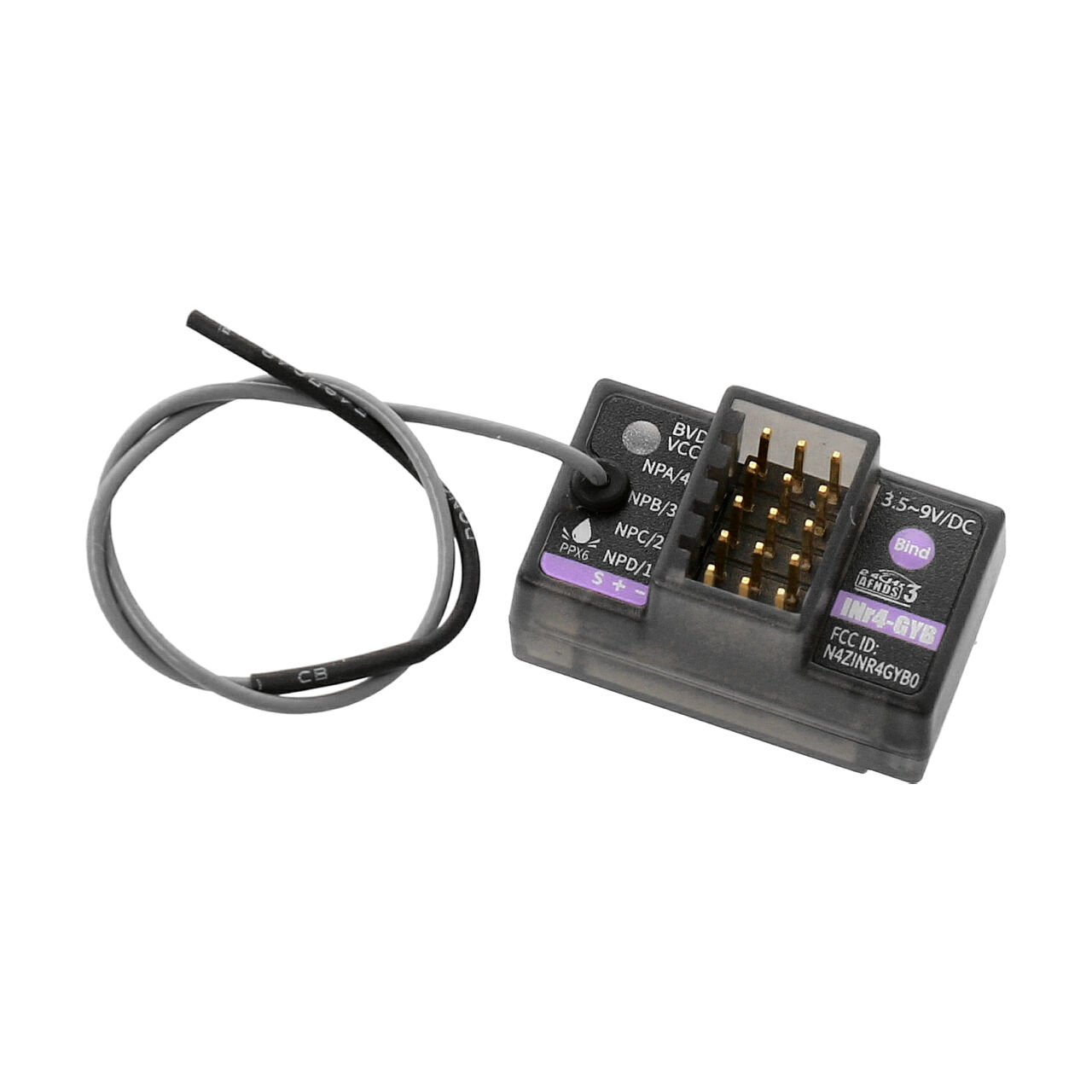

The INr4-GYB is a receiver for Flysky remote controls using the automatic frequency hopping digital system (AFHDS3). It has bidirectional transmission via its antenna and a built-in gyroscope, and is designed for PWM/PPM/i-BUS/i-BUS2 and S.BUS signals. It supports all AFHDS3-enabled transmitters and is intended for drift cars, F1-category cars and cars with linear acceleration.
SPECIFICATIONS
| PWM Channels | 4 |
|---|---|
| RF | 2.4 GHz |
| Protocol | AFHDS 3 |
| Antennas | Single |
| Input Voltage | 3.5–9 V (DC) |
| Output | PWM/PPM/i-BUS/i-BUS2/S.BUS |
| Temperature Range | -10 °C to +60 °C |
| Max. Humidity | 20%–95% |
|---|---|
| Update | Yes, online |
| Dimensions | 17 × 29 × 16.6 mm |
| Weight | 6.5 g |
| Suitable For | Cars, Boats, etc. |
| Compatible Transmitter | all AFHDS3-Transmitter |
