DESCRIPTION

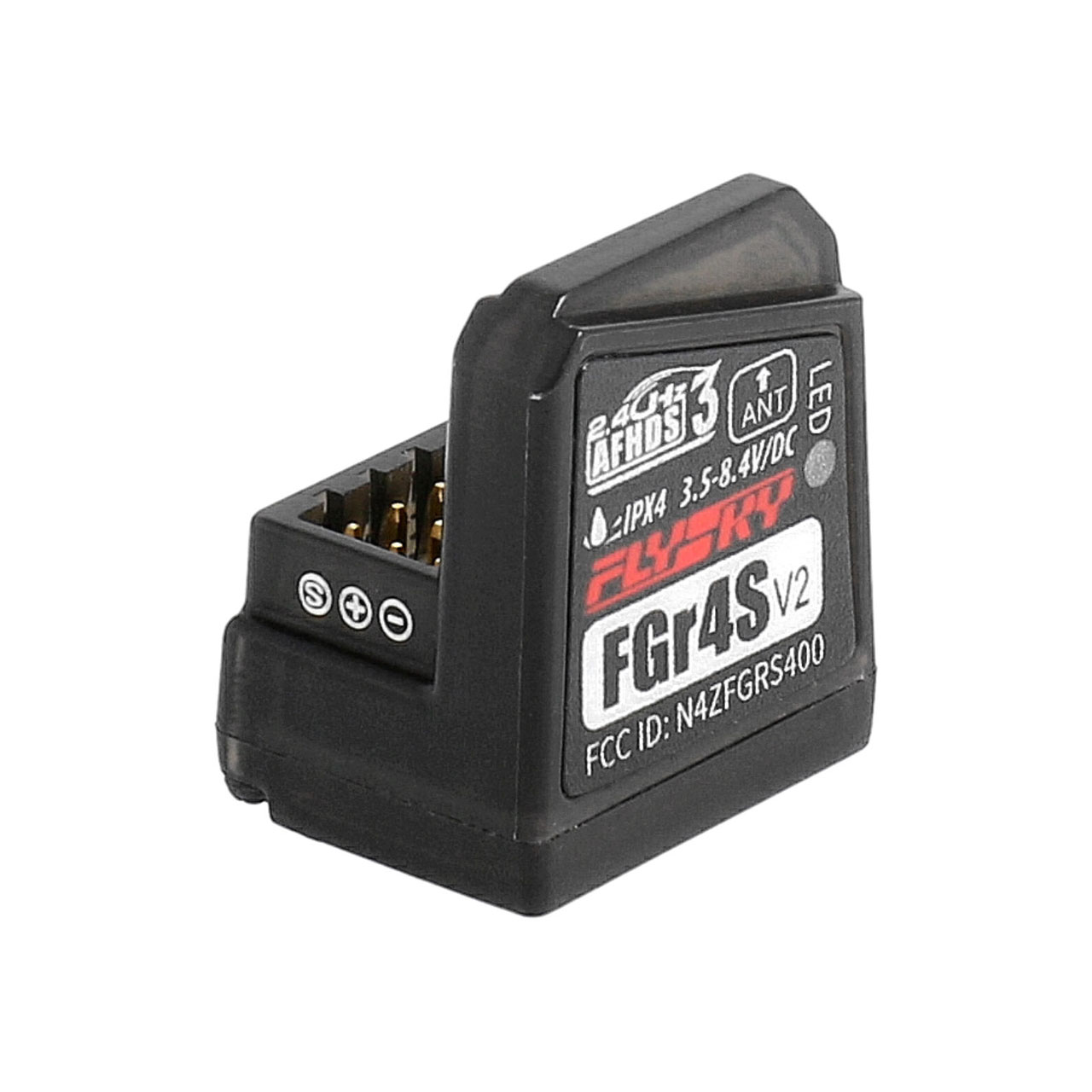

The Flysky FGr4S receiver uses the automatic frequency hopping digital system (AFHDS 3) used by Flysky transmitters. It has bidirectional transmission via a single antenna and is designed for PWM, PPM, i-BUS and S.BUS signals. It supports all AFHDS 3-capable transmitters.
SPECIFICATIONS
| PWM Channels | 4 |
|---|---|
| RF | 2.4 GHz |
| Protocol | AFHDS 3 |
| Antennas | Single |
| Input Voltage | 3.5–8.4 V |
| Range | >200 m |

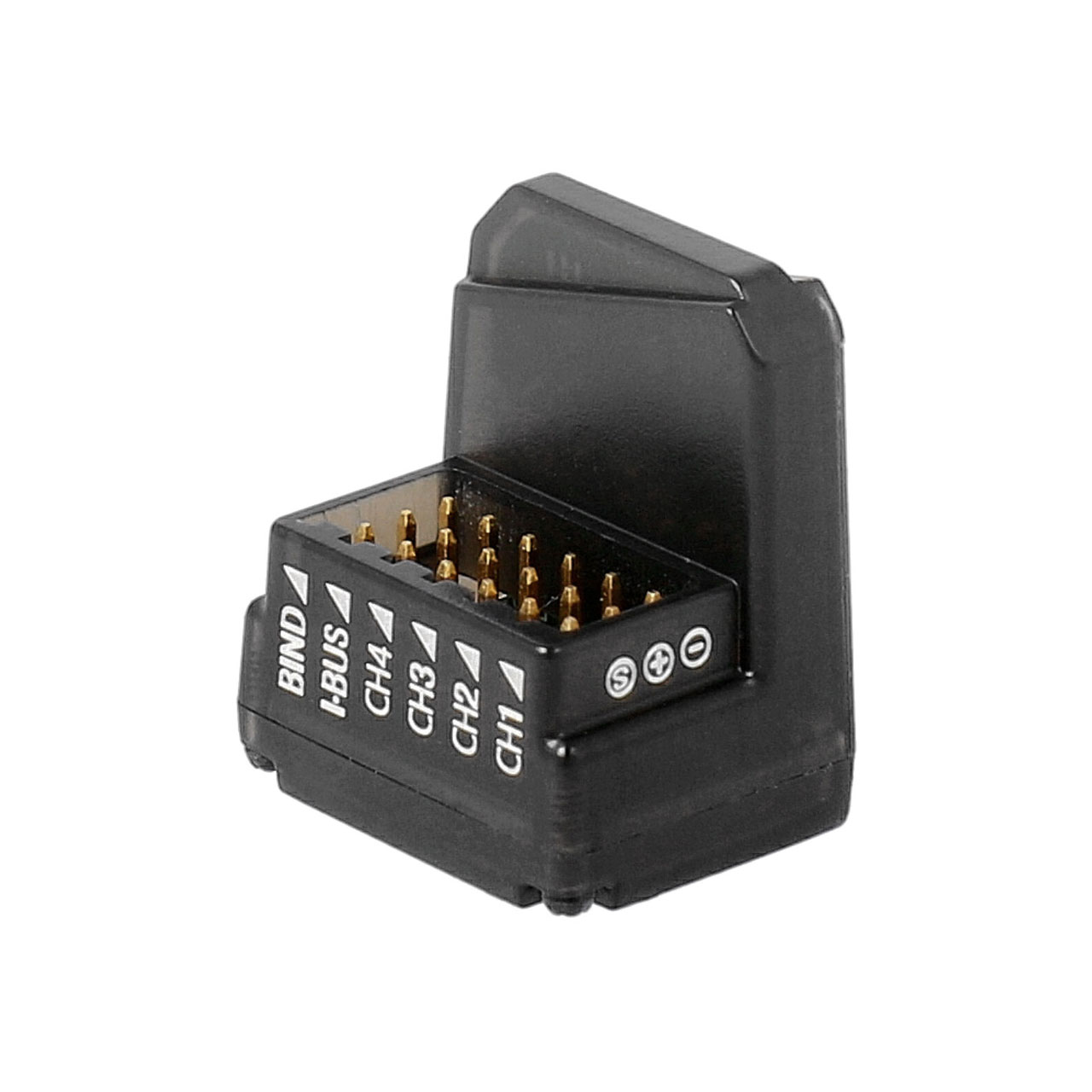

| Output | PWM/PPM/i-BUS/S.BUS |
| RSSI | Supported |
| Temperature Range | −10 °C to +60 °C |
|---|---|
| Max. Humidity | 20%–95% |
| Update | Yes, online |
| Dimensions | 25.5 × 22 × 17.3 mm |
| Weight | 5.1 g |
| Suitable For | Cars, Boats, etc. |
| Compatible Transmitter | all AFHDS3-Transmitter |
