DESCRIPTION

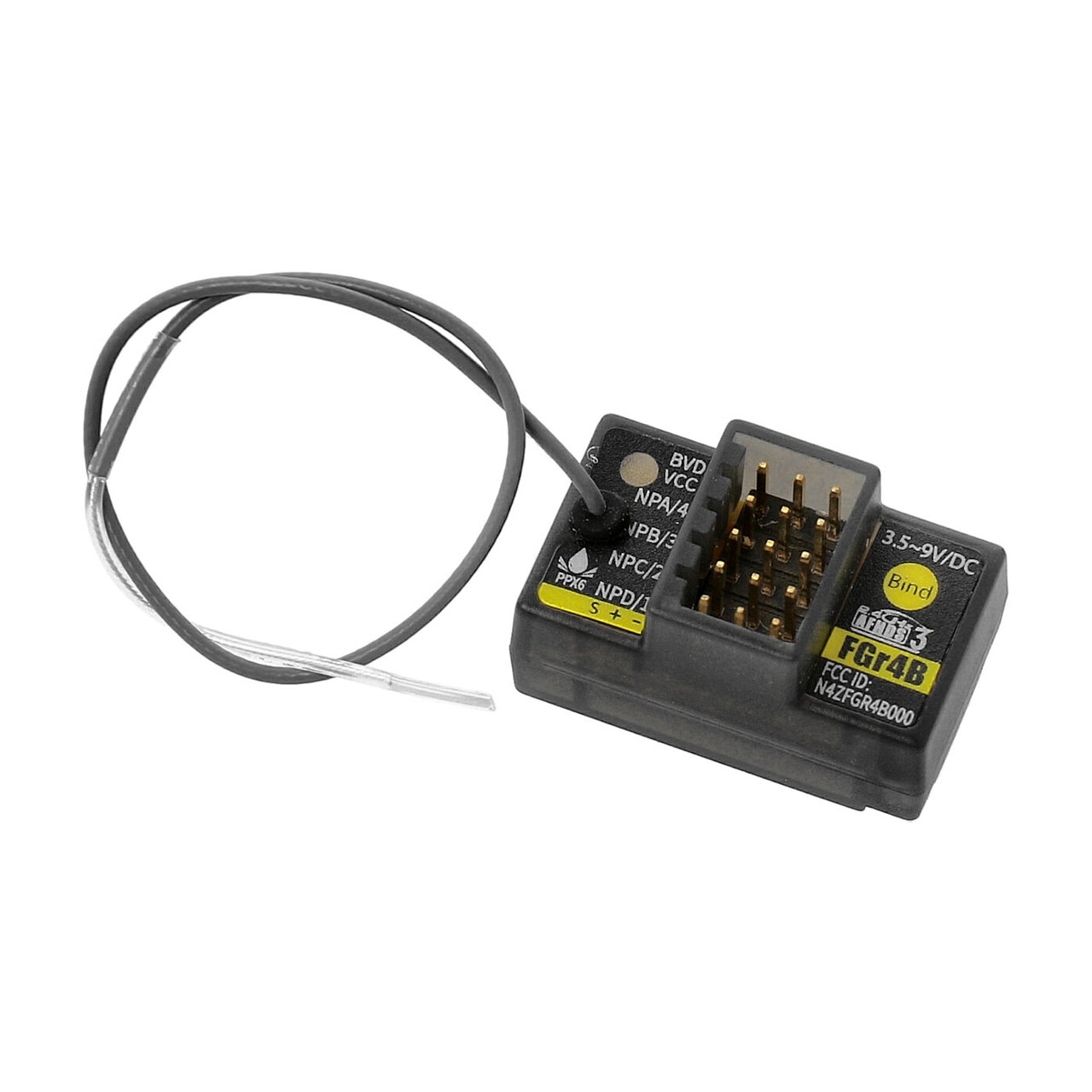

The Flysky FGr4B is a 4-channel receiver for Flysky remote controls. It uses the automatic frequency hopping digital system (AFHDS3) and bidirectional transmission via its antenna. It supports installation and output of PWM/PPM/i-BUS out/S.BUS signals and works with all AFHDS3-capable transmitters.
SPECIFICATIONS
| PWM Channels | 4 |
|---|---|
| RF | 2.4 GHz |
| Protocol | AFHDS 3 |
| Antennas | Dual |
| Input Voltage | 3.5–9 V |
| Output | PWM/PPM/i-BUS out/S.BUS |
| Temperature Range | -10 °C to +60 °C |
| Max. Humidity | 20%–95% |
|---|---|
| Update | Yes, online |
| Dimensions | 17 × 29 × 16 mm |
| Weight | 6.4 g |
| Suitable For | Cars, Boats, etc. |
| Compatible Transmitter | all AFHDS3 transmitters and RF modules (PL18, Paladin EV, NB4, NB4 Lite etc.) |
