DESCRIPTION

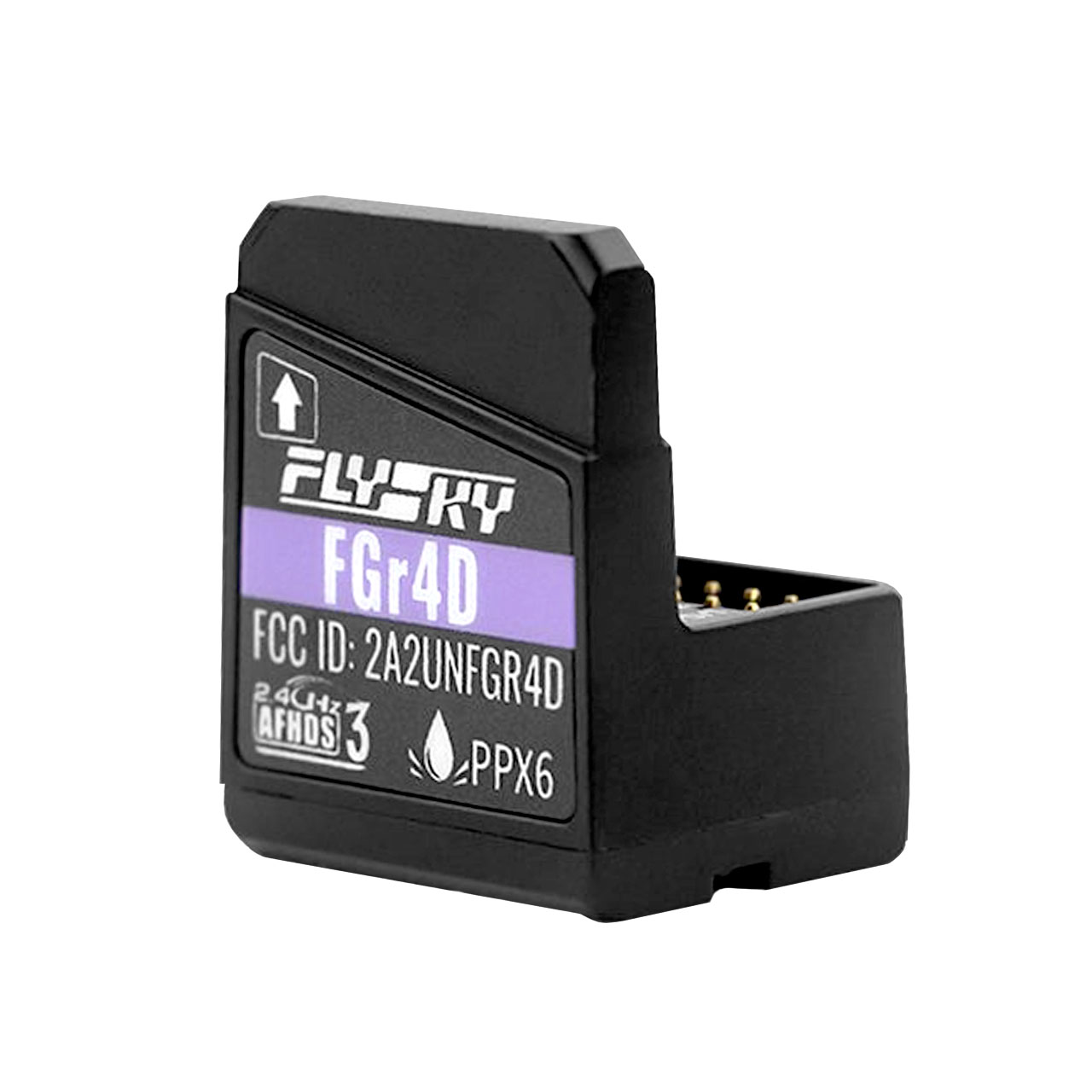

The bidirectional FGr4D receiver has four channels and uses the AFHDS 3 protocol. Its two built-in antennas and compact design allow use in confined spaces. Alongside the four channels, it offers five functional interfaces configurable for signal types including i-BUS2, S.BUS, i-BUS and PPM. The receiver is waterproof according to the PPX6 standard.
SPECIFICATIONS
| PWM Channels | 4 |
|---|---|
| RF | 2.4 GHz |
| Protocol | AFHDS 3 |
| Antennas | Dual (internal) |
| Input Voltage | 3.5–9 V |
| Output | PWM/PPM/i-BUS/S.BUS/i-BUS 2 |
| Temperature Range | −10 °C to +60 °C |
| Max. Humidity | 20%–95% |
|---|---|
| Update | Yes, online |
| Dimensions | 30.3 × 25.8 × 20 mm |
| Weight | 7.2 g |
| Suitable For | Cars, Boats |
| Compatible Transmitter | all AFHDS3-Transmitter |
