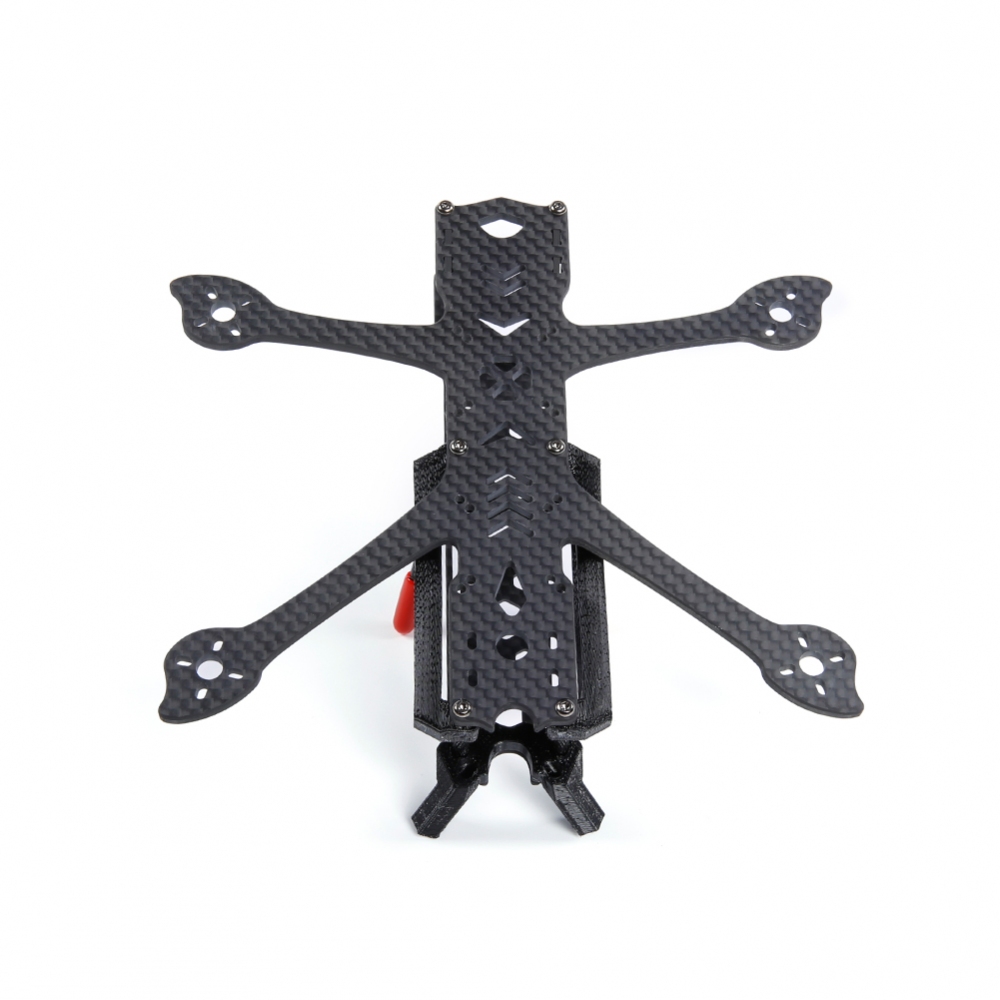

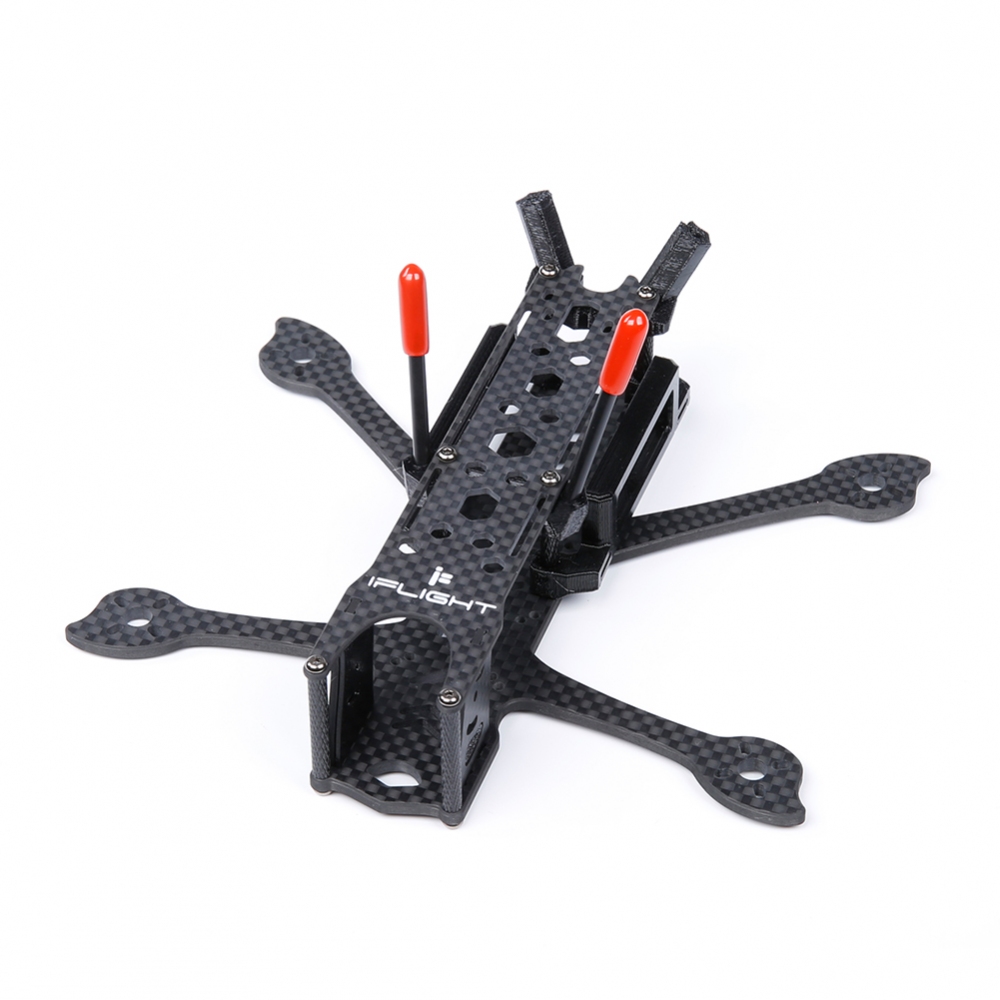

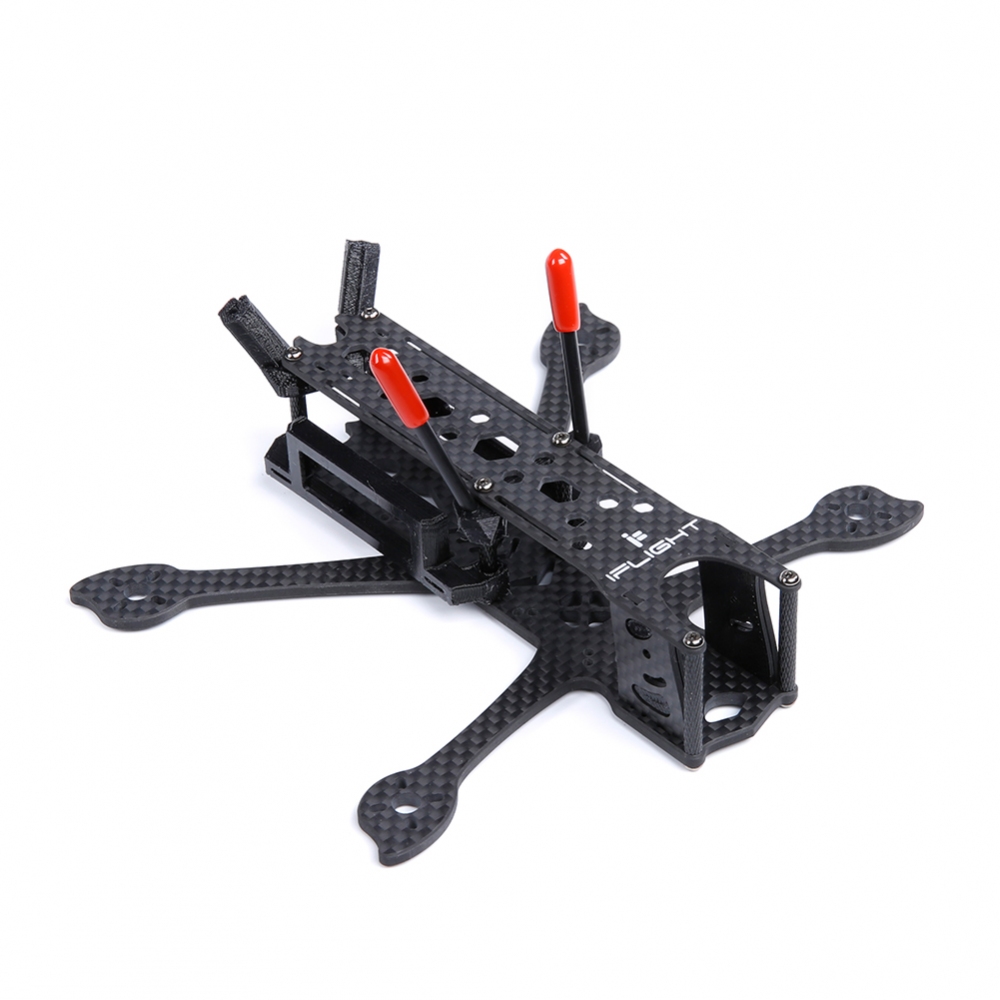

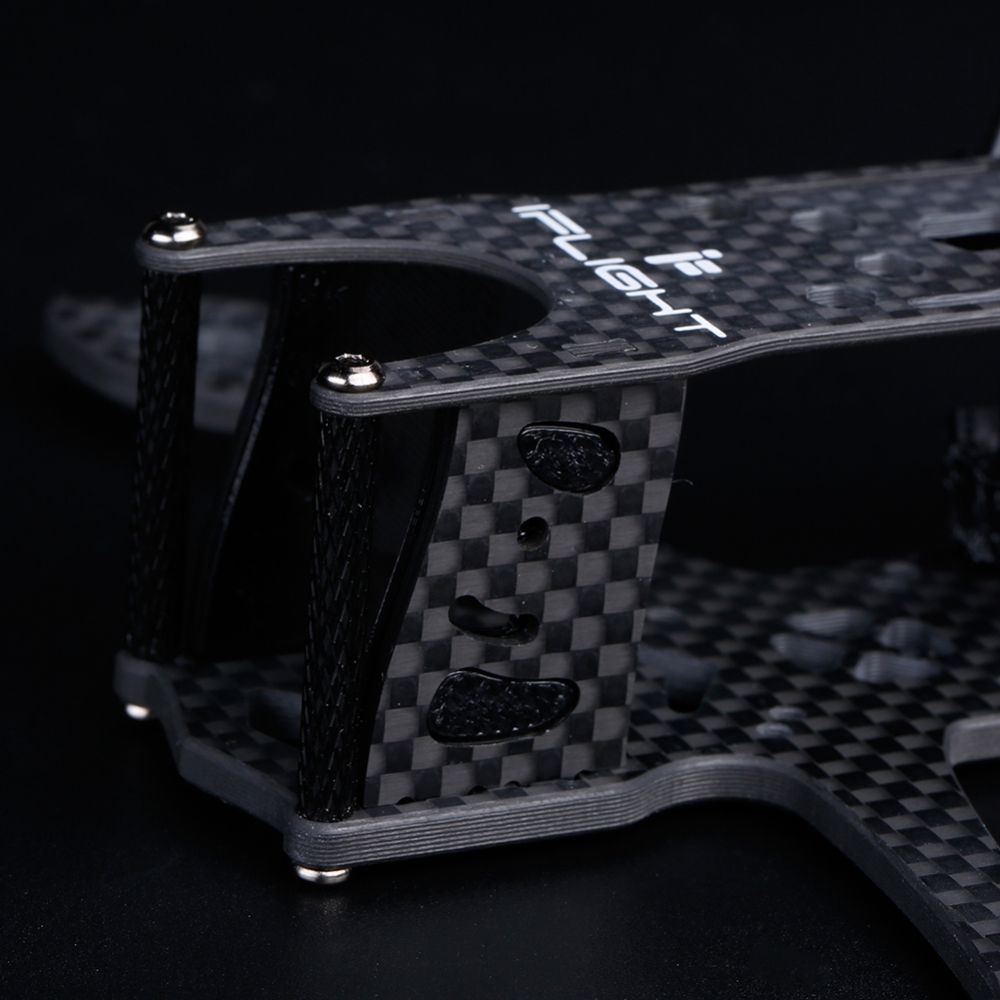

The DC3 was designed for the DJI Digital FPV System with less total weight than 250g. It is also suited for a 5-inch propeller power system and flight controllers. The DC3 HD Frame design makes installation and maintenance easy. With the 3-inch propeller power system, users have ensured a super great flying experience.

Features：

-Full 3K Carbon Fiber airframe

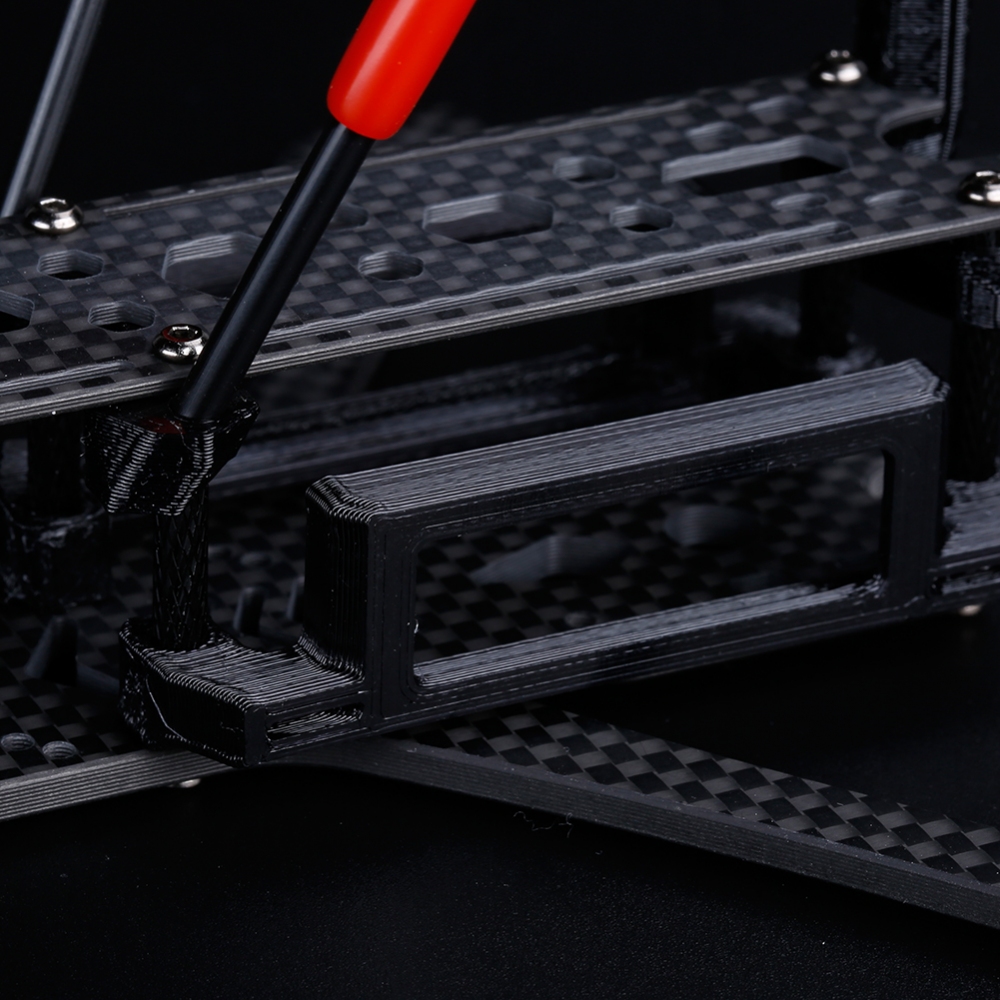

-TPU bracket protect to crash Air Unit Module

-144mm wheelbase，40.5g

-Popular Deadcat style configuration, No prop in View

-Fits 20x20 stacks

Specifications:

- Type: 3" FPV Freestyle frame

- Frame wheelbase: 144mm

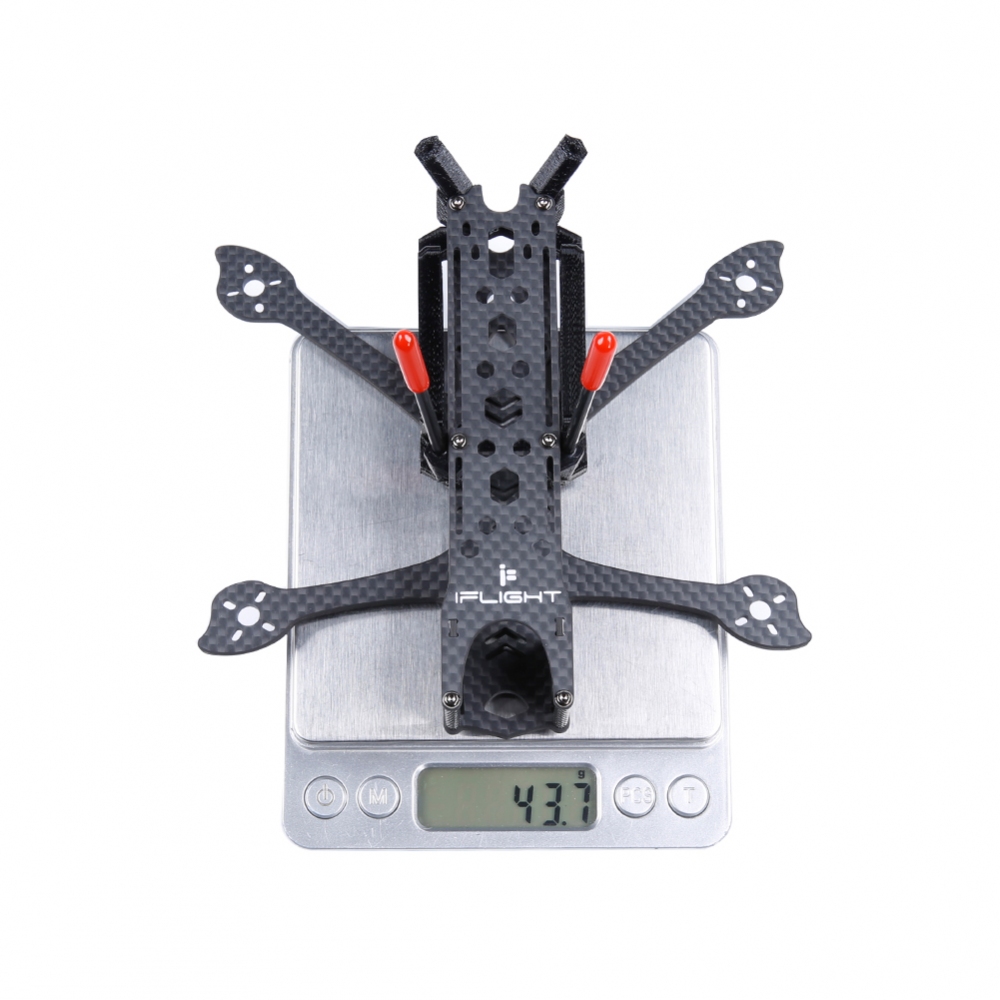

- Frame weight:40.5g approx

- Standoff: M2*25mm(4pcs)

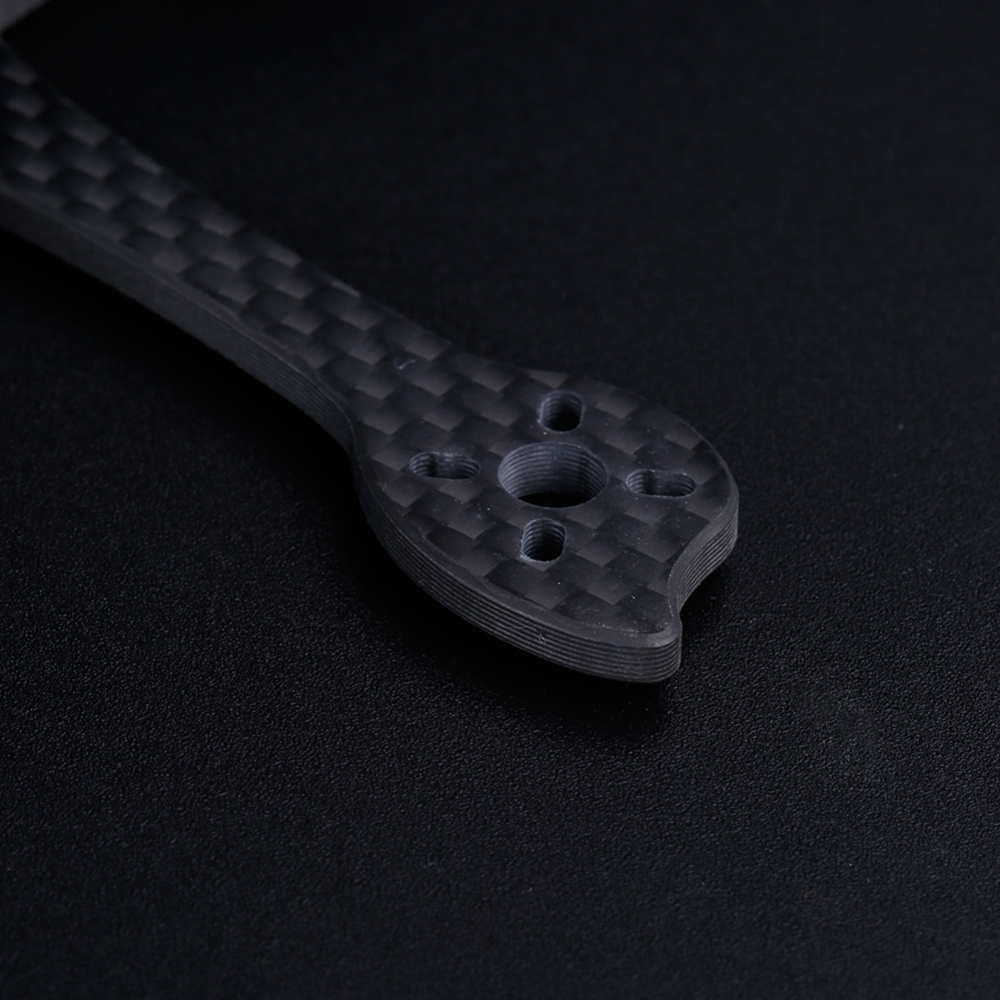

- 3mm thickness, 11.3mm width arms,1.5mm vertical side plates

- 2mm top, the upper & bottom plate

- Mounting Holes: 20*20mm

- Support camera size: 19*19mm 22*22mm

- Recommended motors: 14XX，12XX

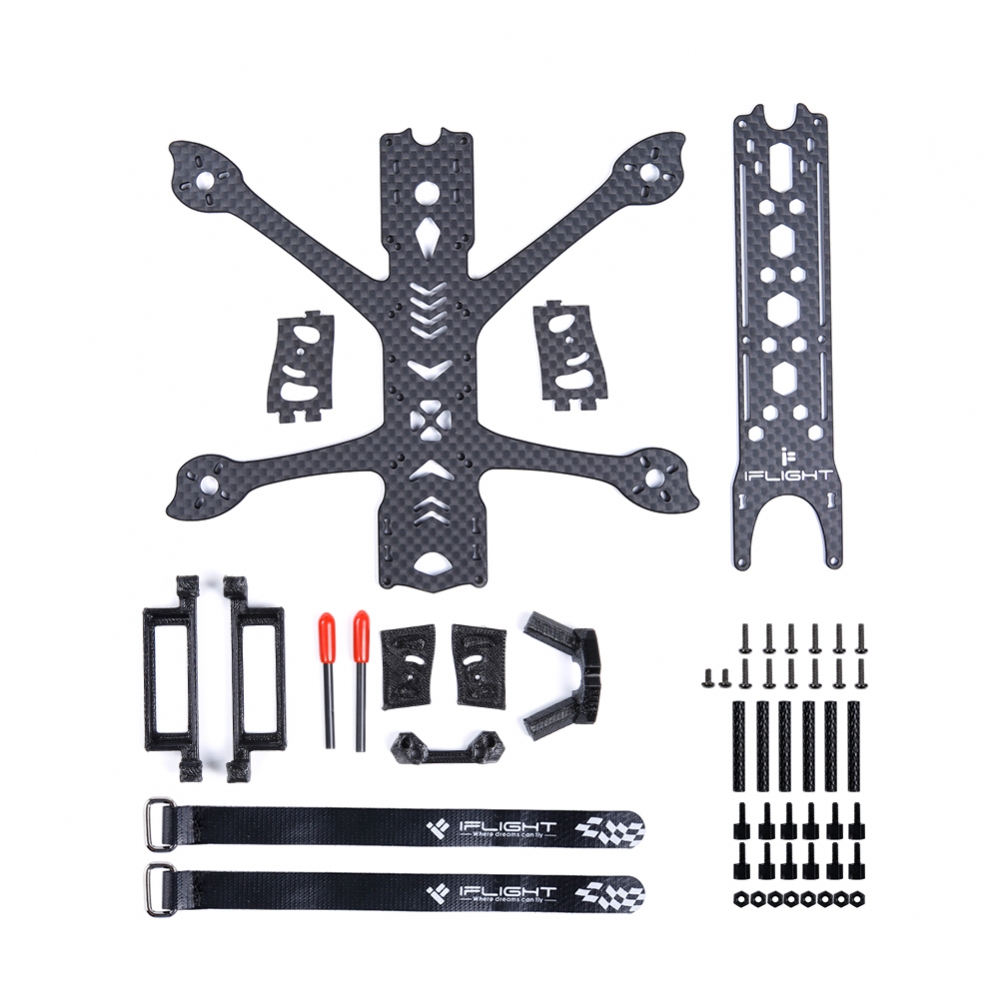

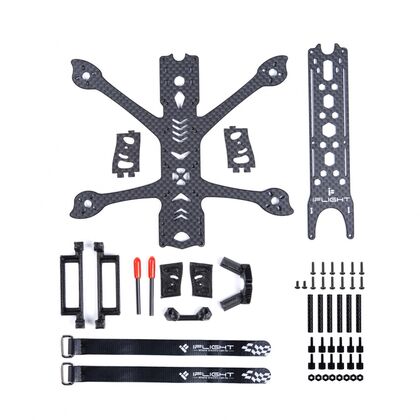

Package included:

-1 x DC3 HD Frame

-1 x Screw Bag

-1 x TPU Camera mount adapters

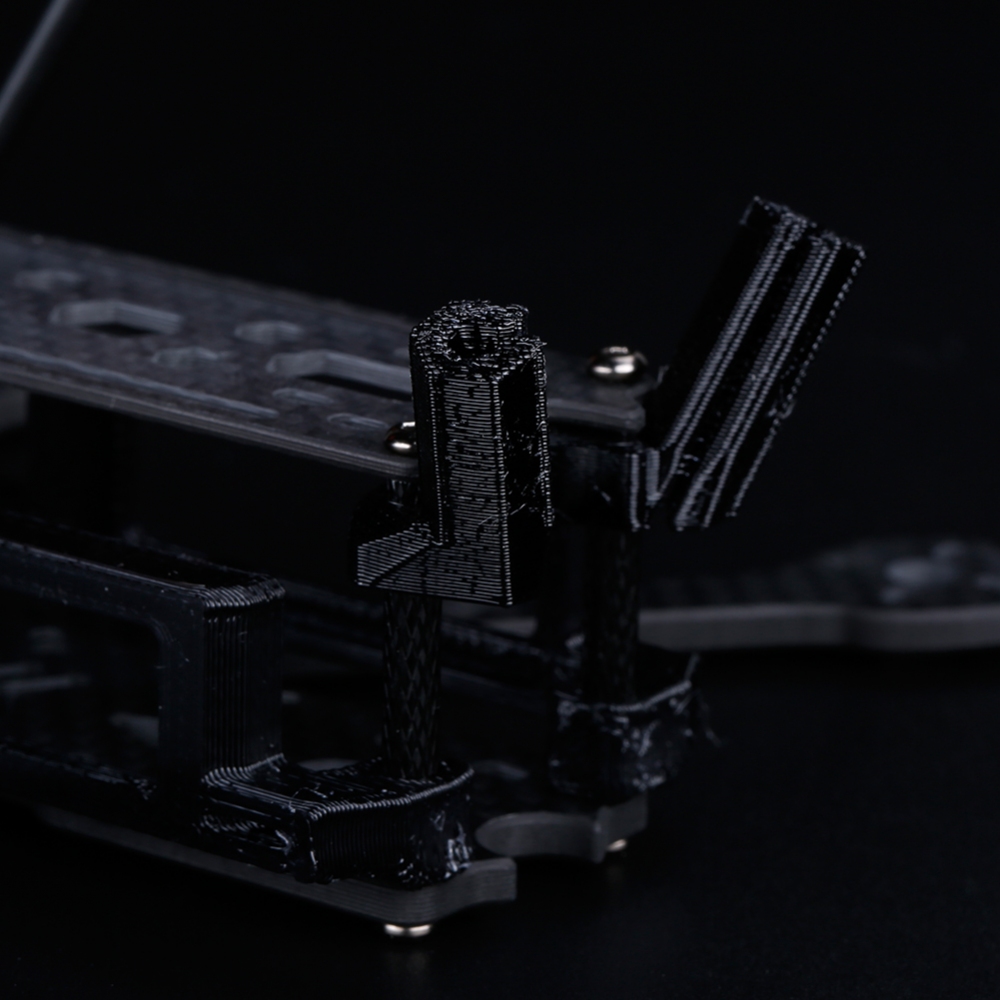

-1 x TPU DJI Air Unit Bracket Mount

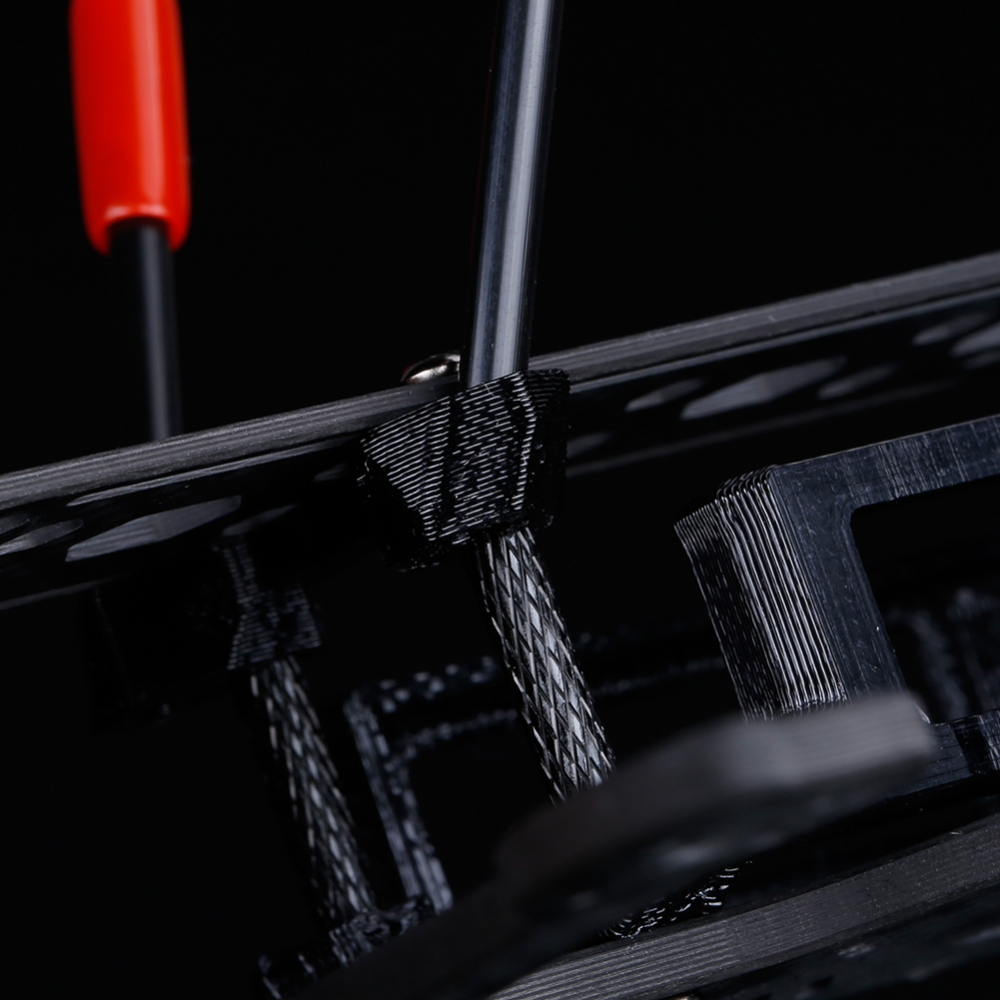

-1 x TPU DJI Air Unit Antenna Mount
