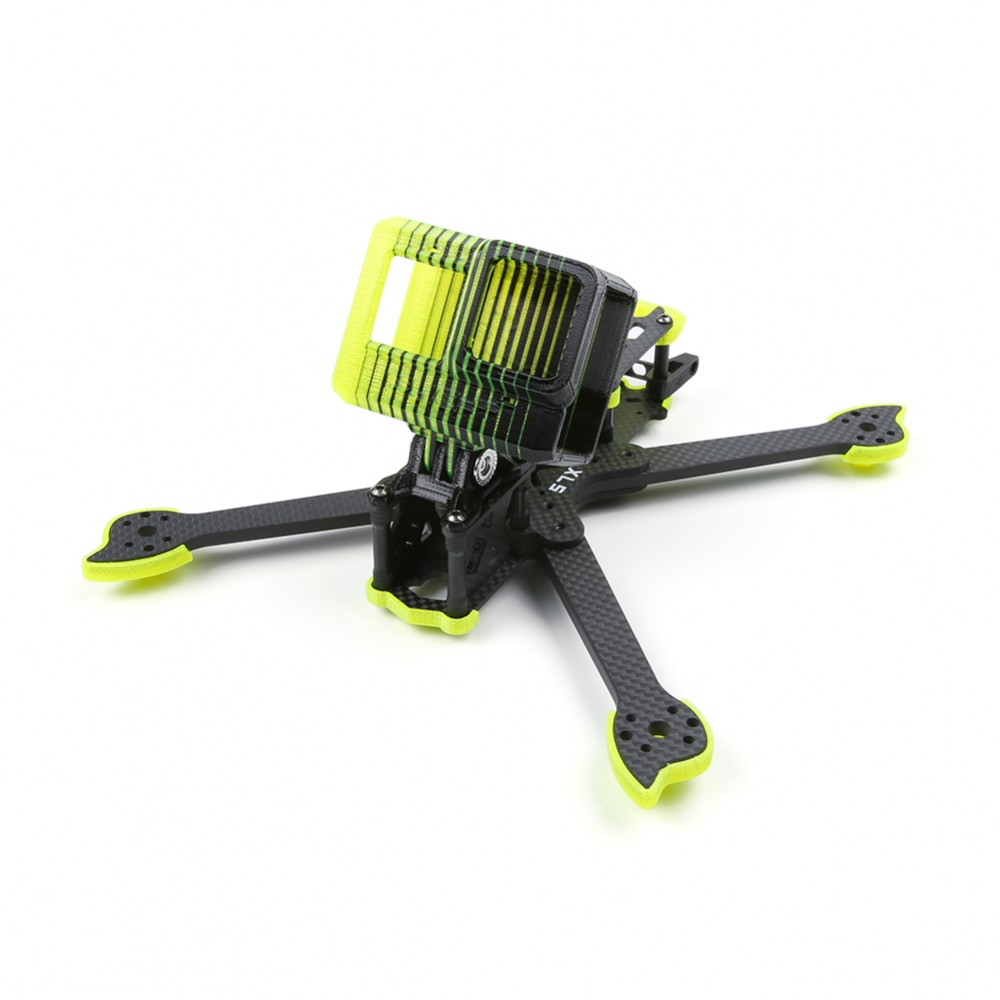

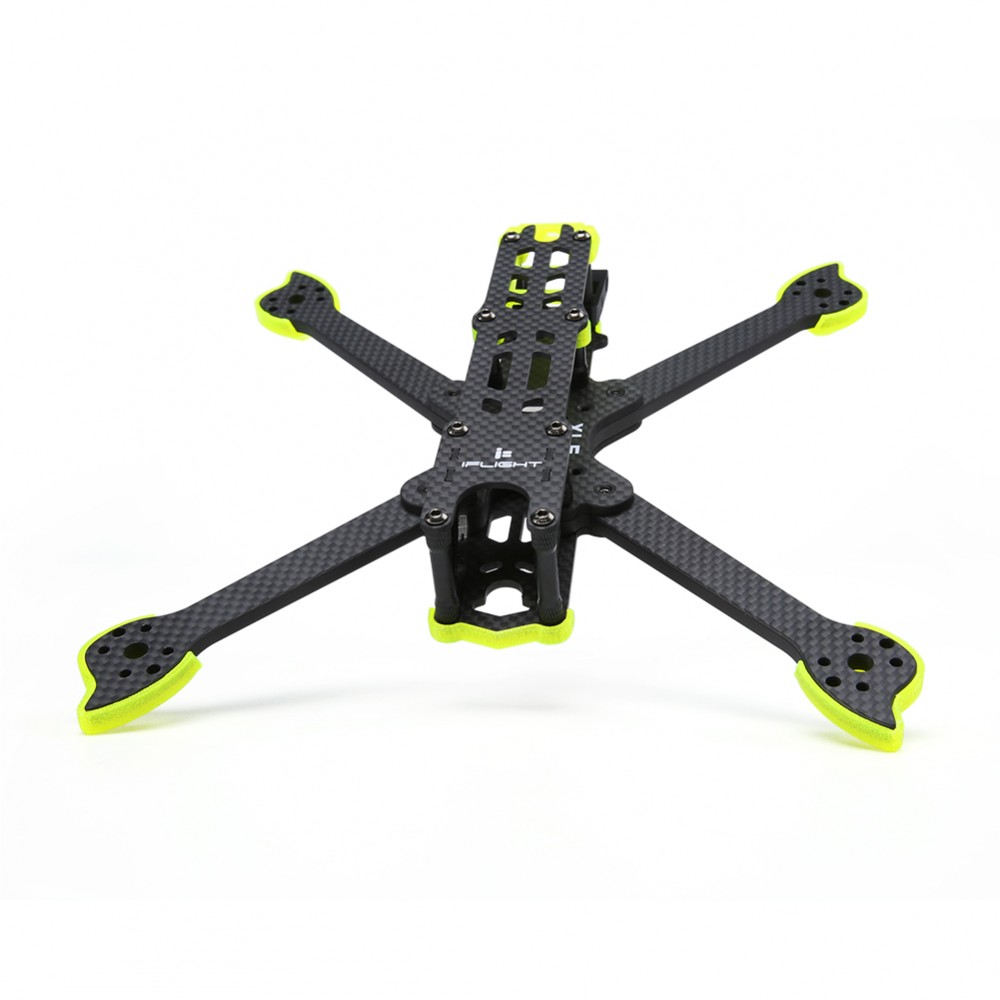

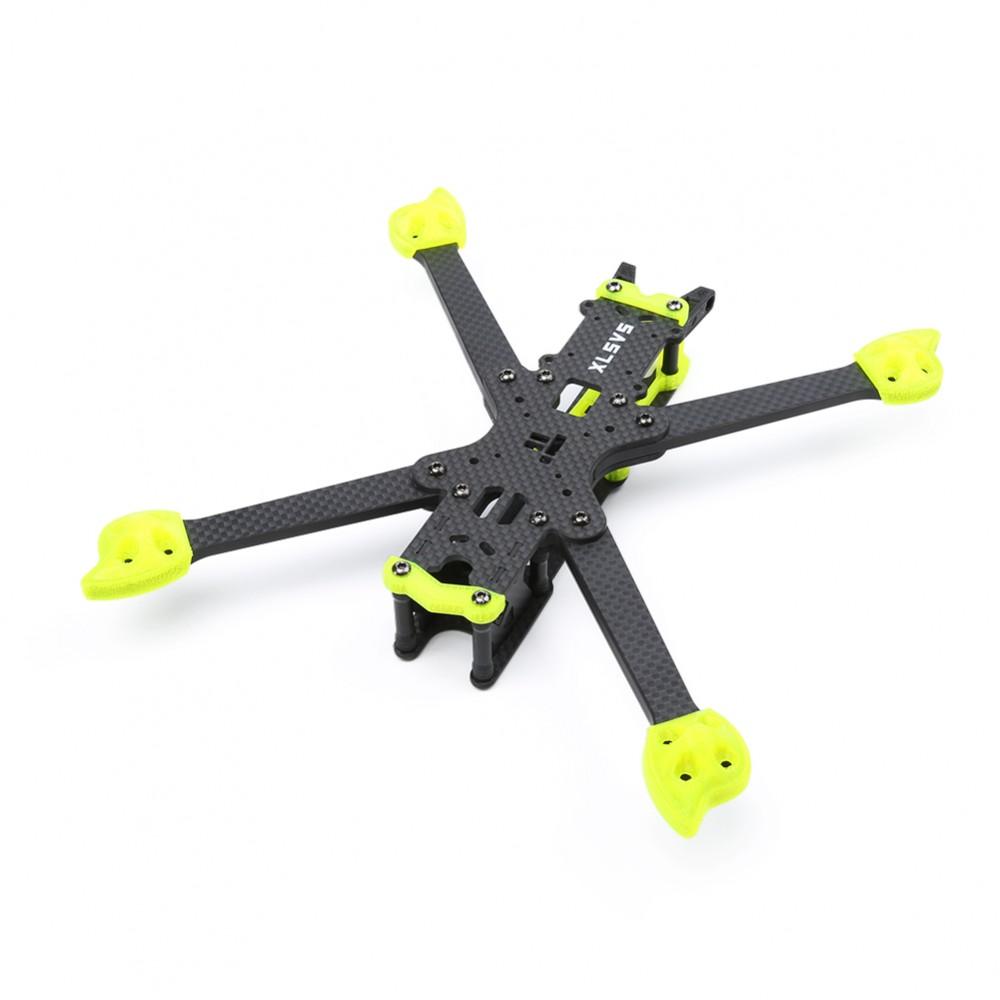

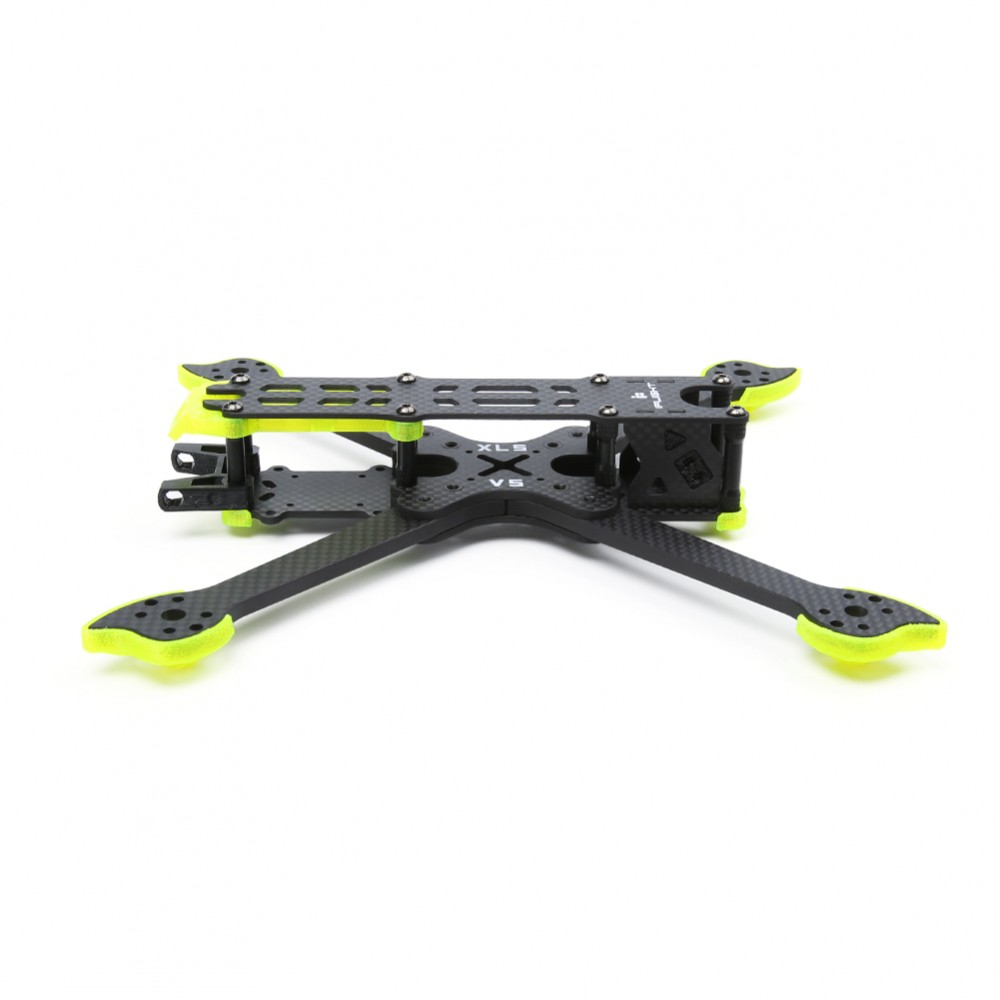

It's proud to announce the release of the XL series V5 Frames, XL5 V5.1 is a 5" size quadcopter , fit for the Caddx Digital FPV system on it.

The main advantages of the XL series V5 are in the flight performance, the stronger and thick arms. The XL series V5.1 frames fly balanced because of the true X configuration and wide stance. This main changings makes flight stability in the air.

Features:

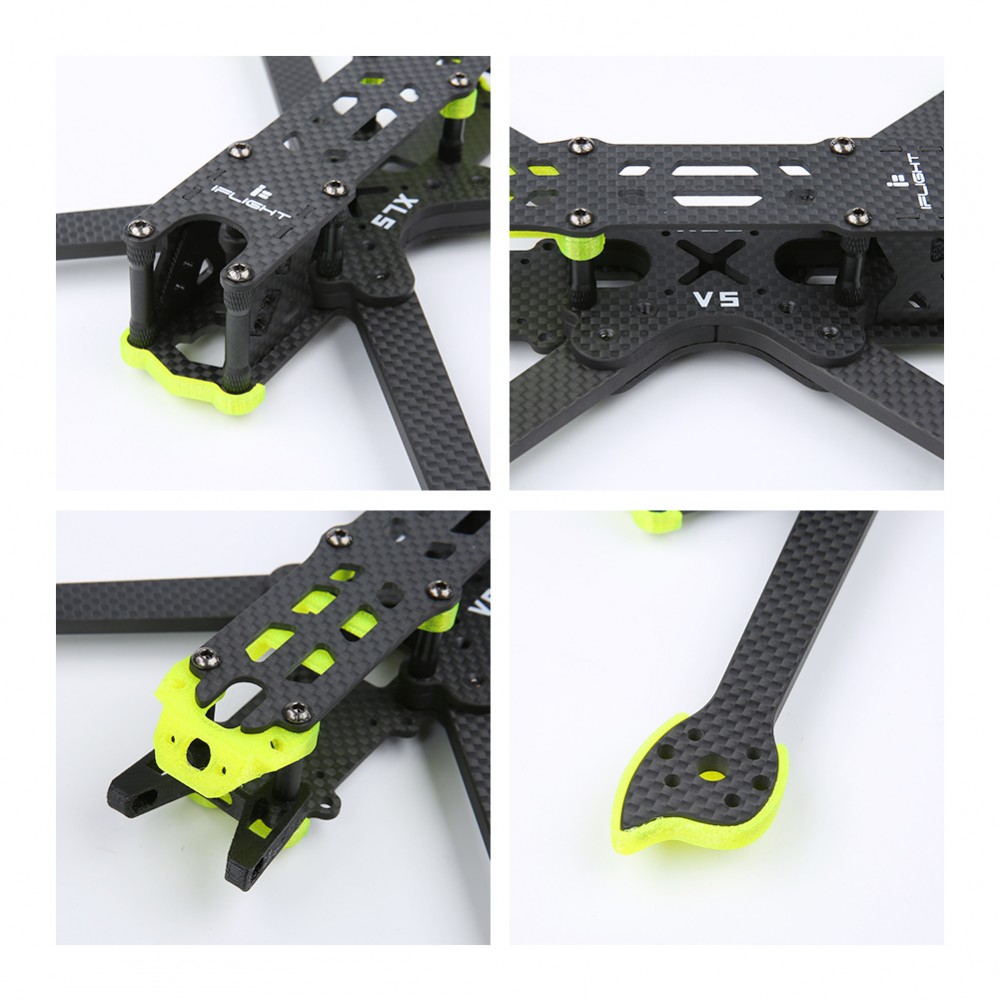

- 5mm arm design for more durability

- Easy-Swap arms

- Popular True-X configuration

- Fit for the 22xx 23xx motors
- TPU crash-guards
- Fits both 30.5x and 20x stacks

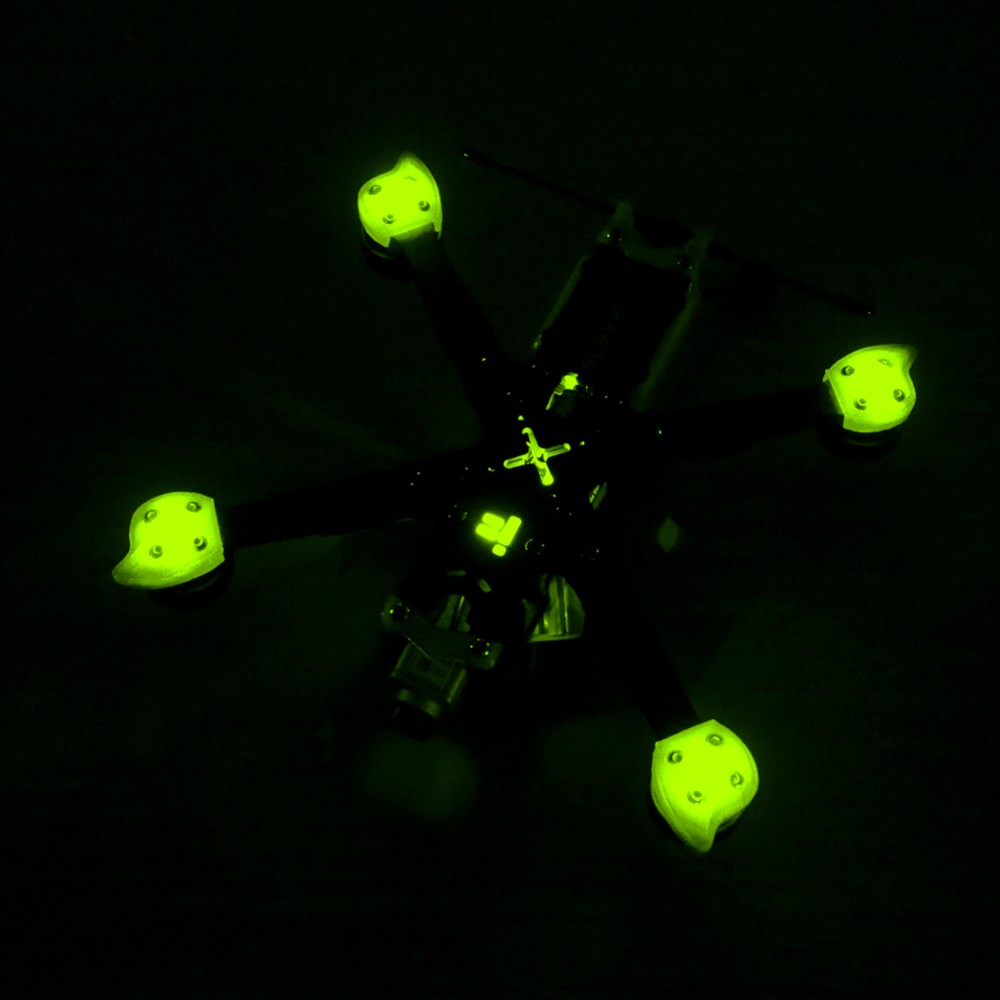

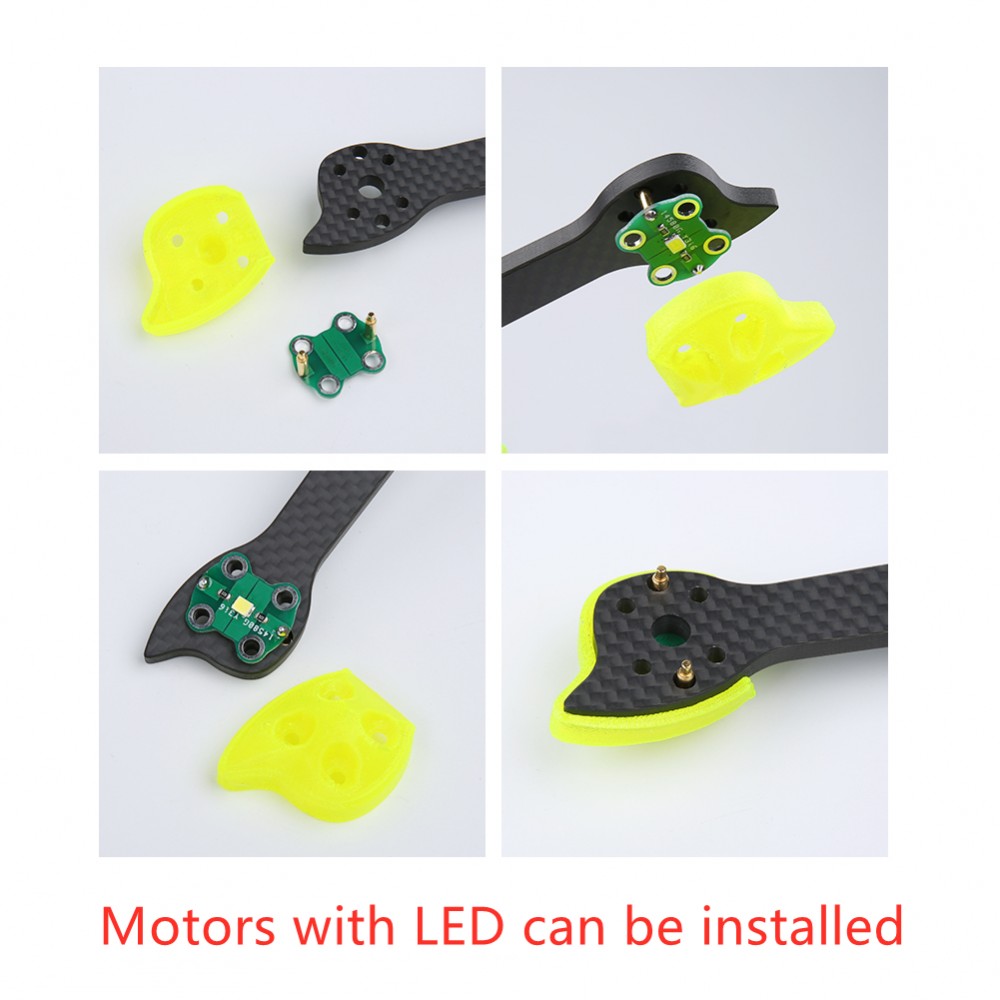

- Motors with LED can be installed

XL5 V5 frame specs:

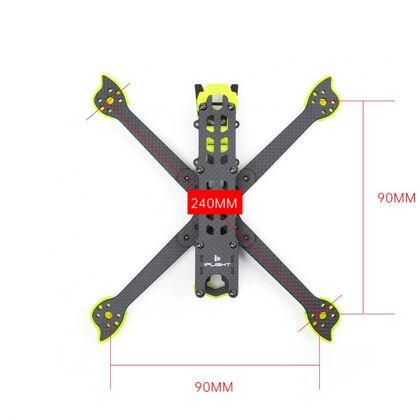

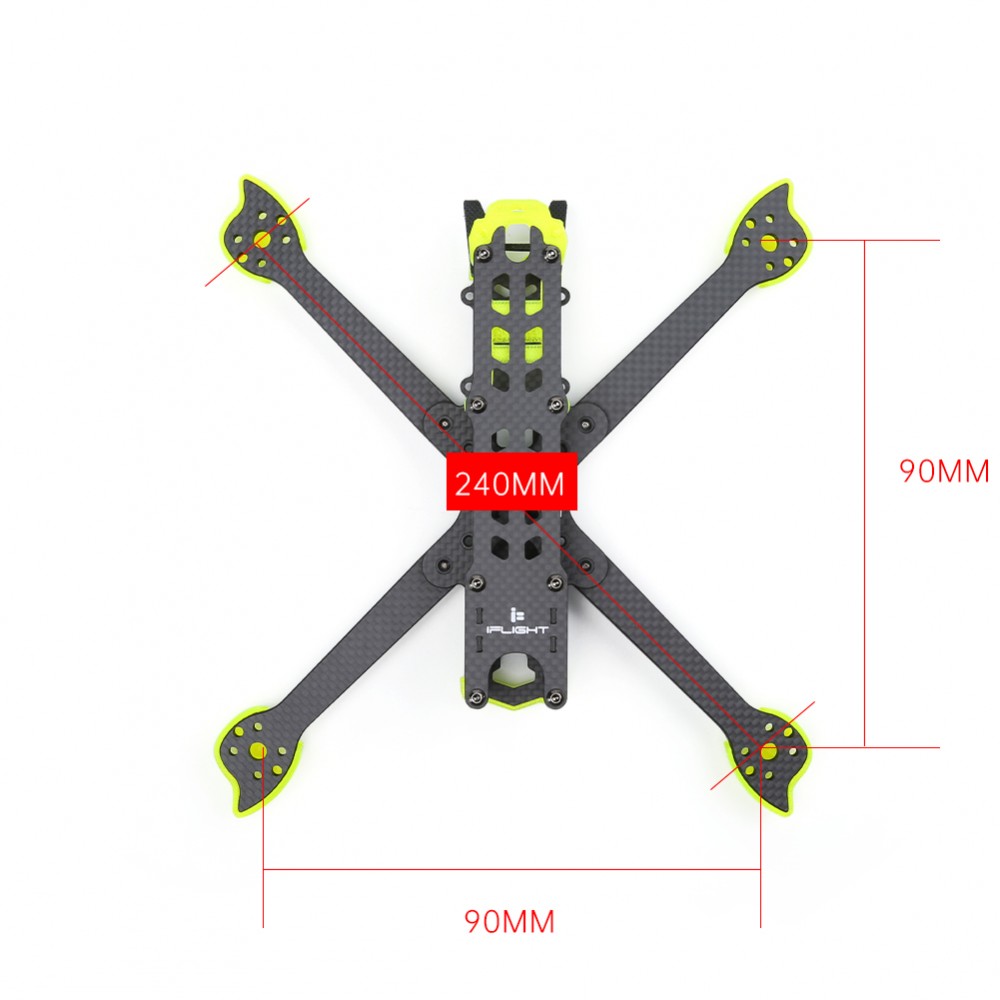

• Wheelbase: 240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5*30.5/20*20 mm
• FPV cam spacing: 19mm
• Motors: 22xx 23xx

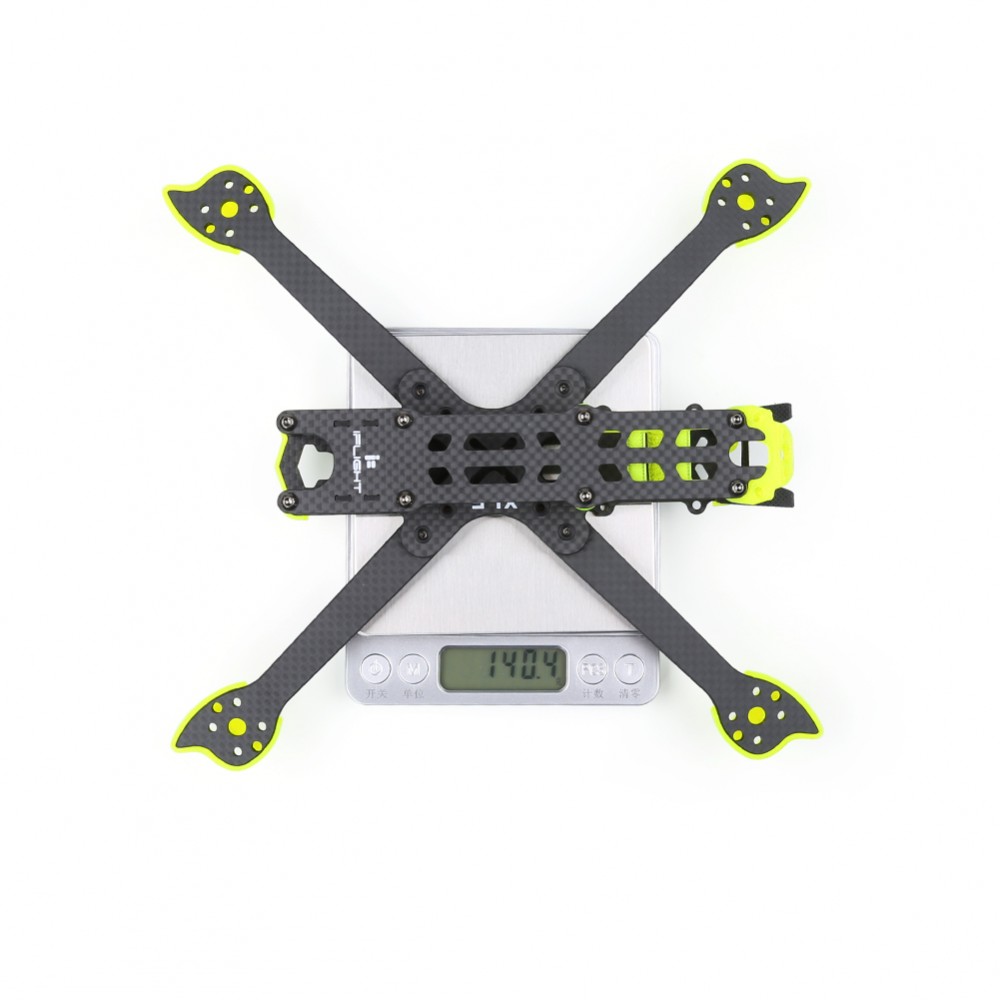

• Weight: 146.9g (with TPU parts)
•


Recommended parts (not included):

• SucceX-E F4 45A flight stack
• XING-E 2207 FPV Motor （6S 1800kv / 4S 2750kv)
• Nazgul 5140 props
• GoPro Mount

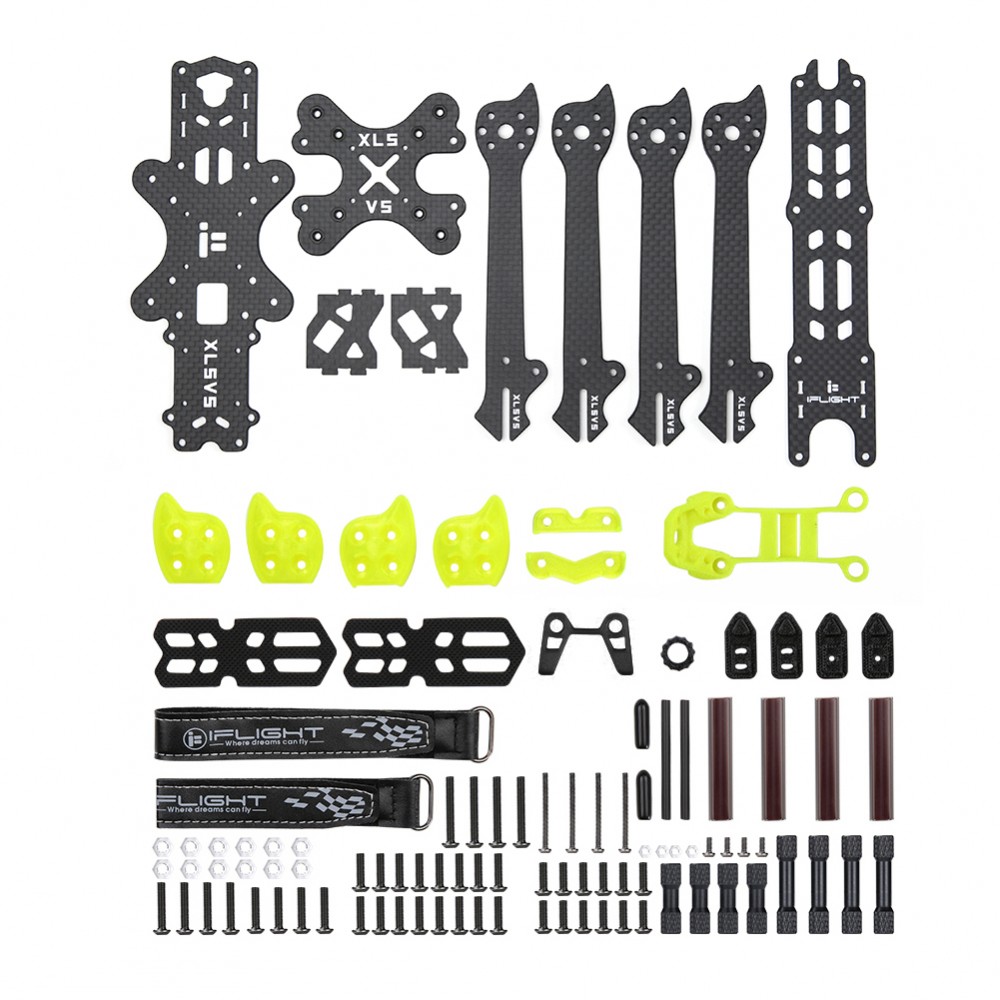

Package included:

1set x XL5 V5.1 frame

1pack x screws

1set x TPU Camera mount adapters

1pc x TPU VTX antenna mount

2pcs x battery anti-slip mat

2pcs x battery straps (the color will be shipped randomly)

NOTE: GoPro mount do not included.
