DC10 V2 10 inch Macro FPV Frame Kit 7.5mm Arms


115,00
dc10v2
Σε Απόθεμα
+
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή

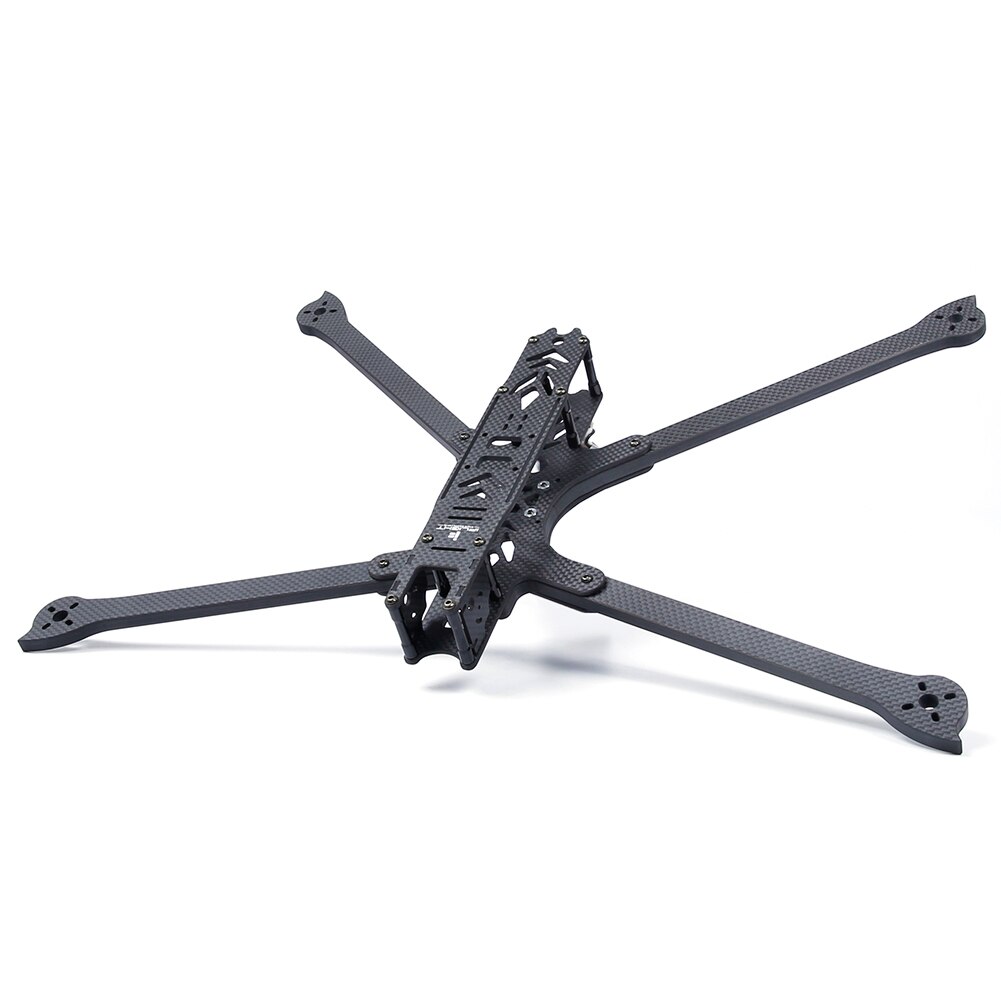

iFlight DC10 472mm Wheelbase 6mm Arm 10 Inch Long Range 3K Carbon Fiber Frame Kit


Specification:
Brand Name: iFlight
Model: DC10
Item Name: 10 Inch 3K Carbon Fiber Macro FPV Frame Kit
Wheelbase: 472mm
Material: 3K Carbon Fiber
Front Arm Distance: 417mm
Back Arm Distance: 369mm
Front Back Arm Distance: 261mm
Inner Standoff Height: 30mm
Arm Thickness: 8mm
Side Plate Thickness: 2mm
Other Plate Thickness: 3mm
Motor Installing Distance: 16-19mm
Net Weight: 346.2mm

Recommend Parts:
Flight Controller: 30.5x30.5mm F3 / F4/ F7 Flight Controller
Motor: iFlight XING X2814 2814 Motor etc.
FPV Camera: 28mm Width Camera
Lipo Battery: 4S 1550mAh-2200mAh

Package included:
1 x 3mm Top Plate
2 x 3mm Mid Plate
4 x 6mm Arm
16 x M3x8mm Steel Screw
10 x M3x14mm Steel Screw
8 x M3 Steel Locknut
8 x M3 Aluminum Locknut
8 x 30mm Aluminum Standoff
