It's proud to announce the release of the XL series V5 Frames, XL7 V5 is a 10" size quadcopter, fit for the Caddx Digital FPV system on it.

The main advantages of the XL series V5 are in the flight performance, the stronger and thick arms. The XL series V5 frames fly balanced because of the true X configuration and wide stance. This main changings make flight stable in the air.

Main Features:

-Full 3K Carbon Fiber airframe

-Popular True-X configuration

-360° TPU protection and Antenna mounts

-Fits both 30.5x30.5 and 20x20 stacks

-Perfectly compatible with DJI Air Unit

Specifications:

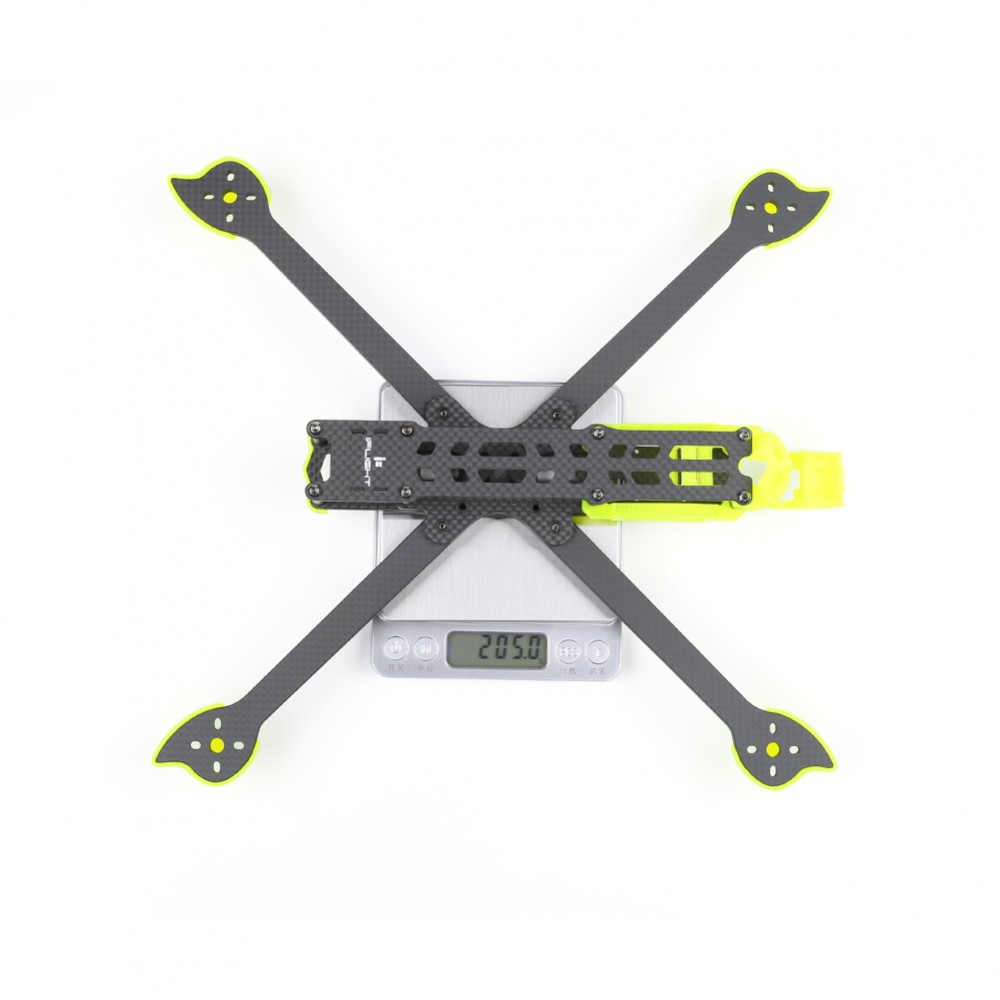

- Frame weight:205g approx

- Wheelbase: 322mm

- Body Dimensions: 228x228mm

- Standoff Height: 23mm (4pcs), 32mm(4pcs)

- 6mm arms, 1.5mm vertical side plates

- 2mm top,

- 3mm upper & bottom plate

- Mounting Holes: 30.5*30.5mm

- Mounting Holes: 30.5*30.5mm, 20*20mm

Recommended parts (not included):

Motor:

XING-E 2207 2208

XING2 2207

XING X2806

XING CAMO 2207

Propeller: 7 inch

Camera: 19mm & 20mm width

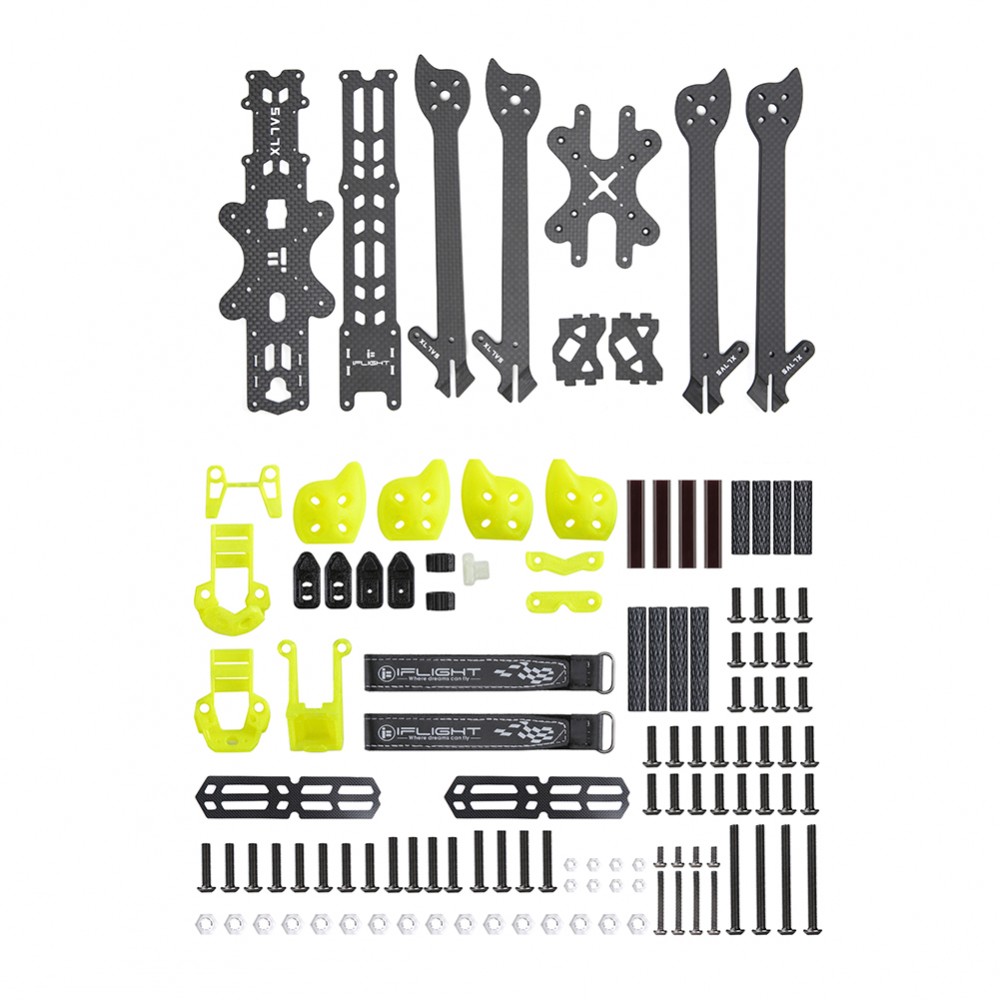

Package included:

1 x XL7 V5 Frame

1 x Screw Bag

4 x Arm guard/Motor mount

1 x TPU DJI Air Unit Antenna Mount

1 x TPU bottom plate front protective mount

1 x TPU bottom plate rear protective mount

1 x TPU Mount of the LED illuminated LoGo

1 x TPU VTX antenna mount

1 x TPU GPS mount

2pcs x battery anti-slip mat
