TITAN H3 HD FRAME FOR DJI FPV AIR UNIT


37,00
h3titan
Σε Απόθεμα
+
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή

TITAN H3 HD Frame for DJI FPV Air Unit

The TITAN H3 was designed for the DJI Digital FPV System , which makes installation and maintenance easy. With the 3-inch propeller power system, users have ensured a super great flying experience.

Features:

-Full 3K Carbon Fiber airframe

-TPU bracket protect to crash Air Unit Module

-150mm wheelbase,46.5g

-Popular H style configuration, prop in View

-Fits 16*16/20*20/30.5*30.5 stacks


Specifications:

- Type: 3" FPV Freestyle frame

- Frame wheelbase: 150mm

- The body size: 122*87mm

- Frame weight:46.5g approx

- Standoff: M2*28mm(4pcs)

- 3mm thickness, 1.5mm vertical side plates

- 2mm top, the upper & bottom plate

- Mounting Holes: 16*16mm / 0*20mm / 30.5*30.5mm

- Support camera size: 19*19mm 20*20mm

- Recommended motors: 14XX,12XX

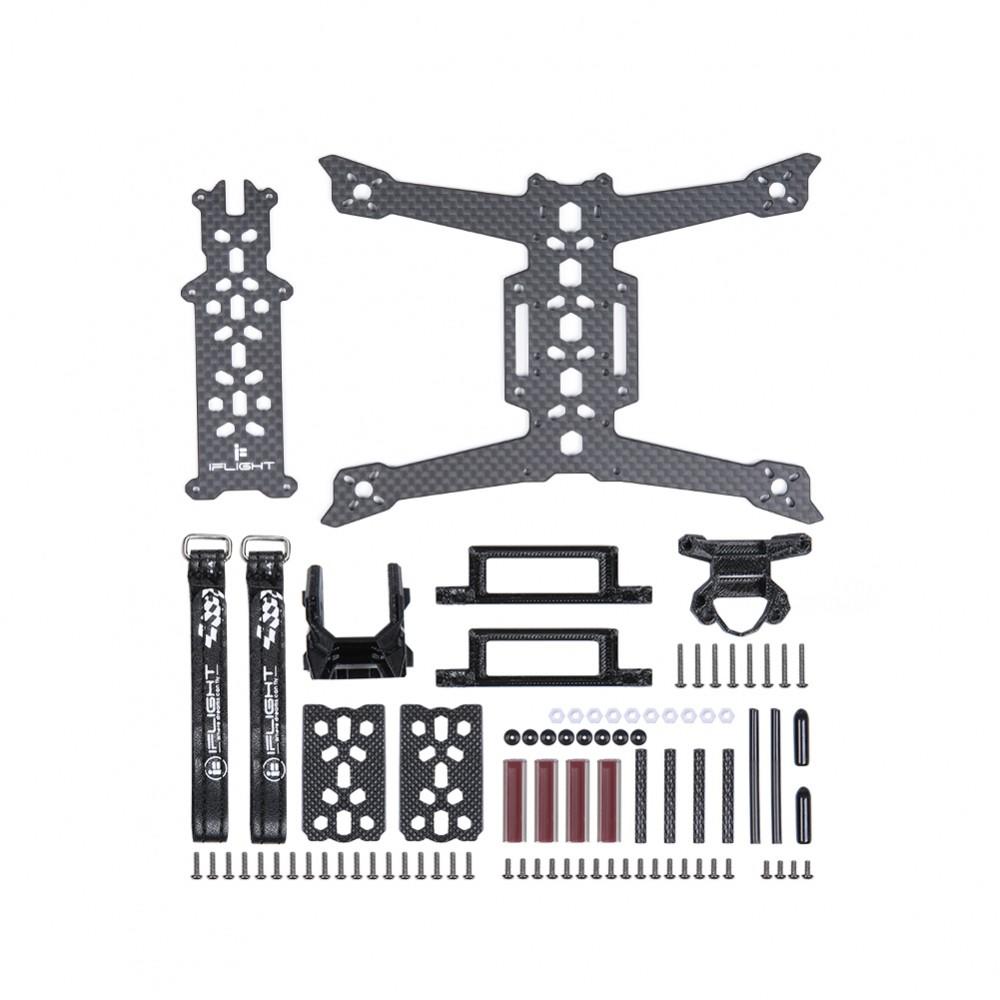

Package included:

-1 x TITAN H3 HD Frame

-1 x Screw Bag

-1 x TPU Camera mount

-1 x TPU DJI Air Unit Bracket Mount

-1 x TPU DJI Air Unit Antenna Mount

-4 x 24.5mm*5mm Motor Wire Shield

-2 x Antenna Protective Tube with caps

-2 x battery anti-slip pads

-2 x 15x200mm Battery Straps
