SucceX-E F7 45A V2 2-6S Flight Stack (MPU6000)


97,50
S008982
Σε Απόθεμα
+
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή


PRODUCT DESCRIPTION

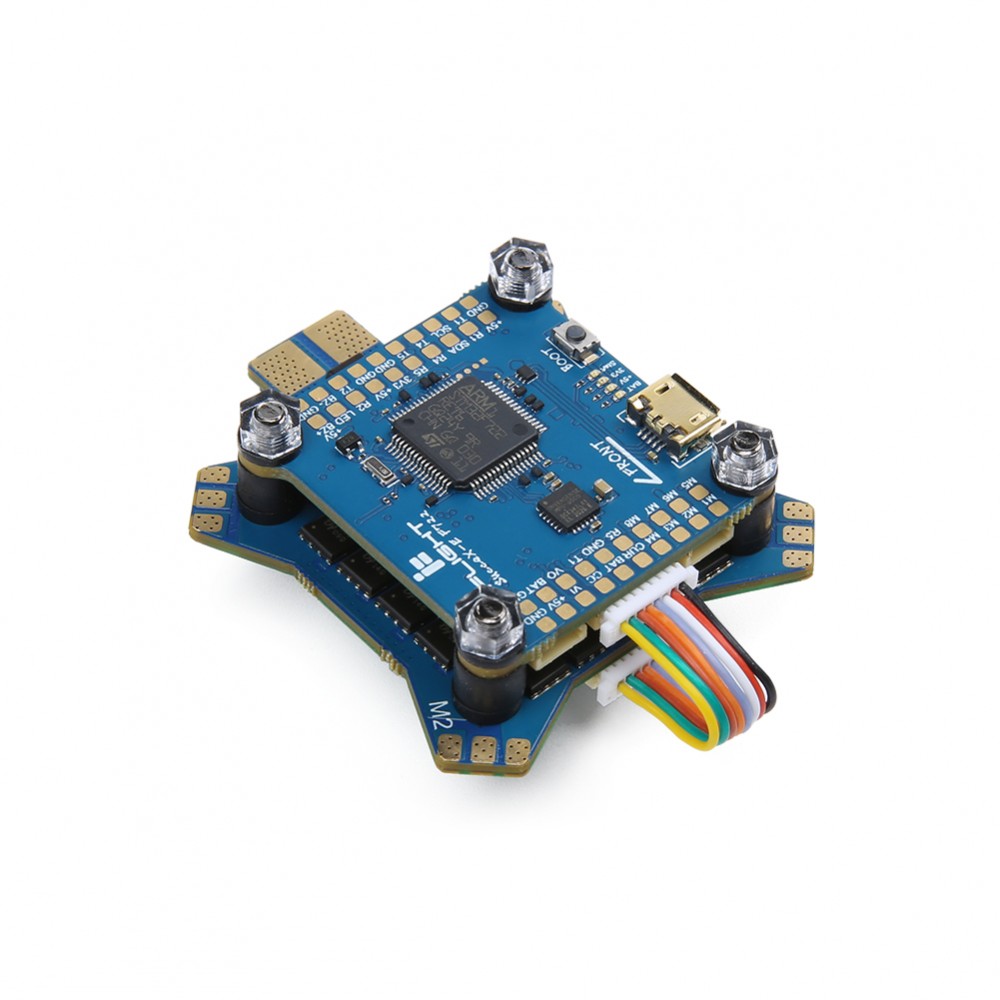

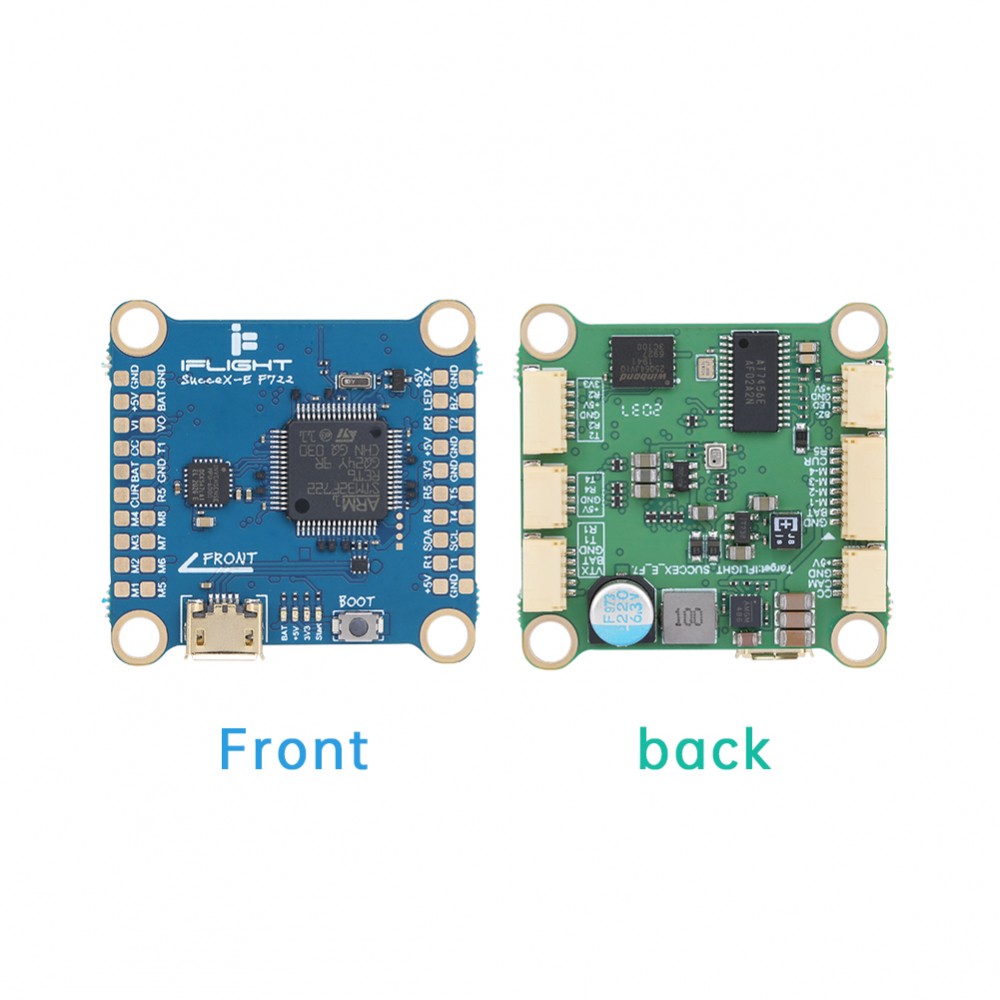

FC // SucceX-E F7

Top Features:

- Gold-plated plug

- BlackBox: 8MB

- Vista HD Plug-and-Play. No need to solder tiny wires.

- BAT, +5V, 3.3, Start indicator

- Smartaudio & IRC Tramp VTX protocol supported

Changelog:

Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.

Before BMP280 changed to DPS310)
Before 8MB Flash changed to 16MB Flash


Specifications:

- MCU: STM32F22RET6 216 MHz

- Gyro: MPU6000

- Baro: DPS310 (Barometer can only be used with Betaflight 4.3.0 and above)

- OSD: IFLIGHT OSD (AT7456E)

- BEC: 5V 2.5A

- BlackBox: 8MB

- Uart: 4*UART(UART1、UART2、UART4、UART5)

- UART1 for VTX HD/Analog Telemetry

- UART2 for Receiver

- UART4 for GPS

- UART5 for ESC Telemetry

- 4×Dshot/PWM outputs

- Smartaudio & IRC Tramp VTX protocol supported

- WS2812 led Strip: Yes

- Bepper: Yes

- Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0

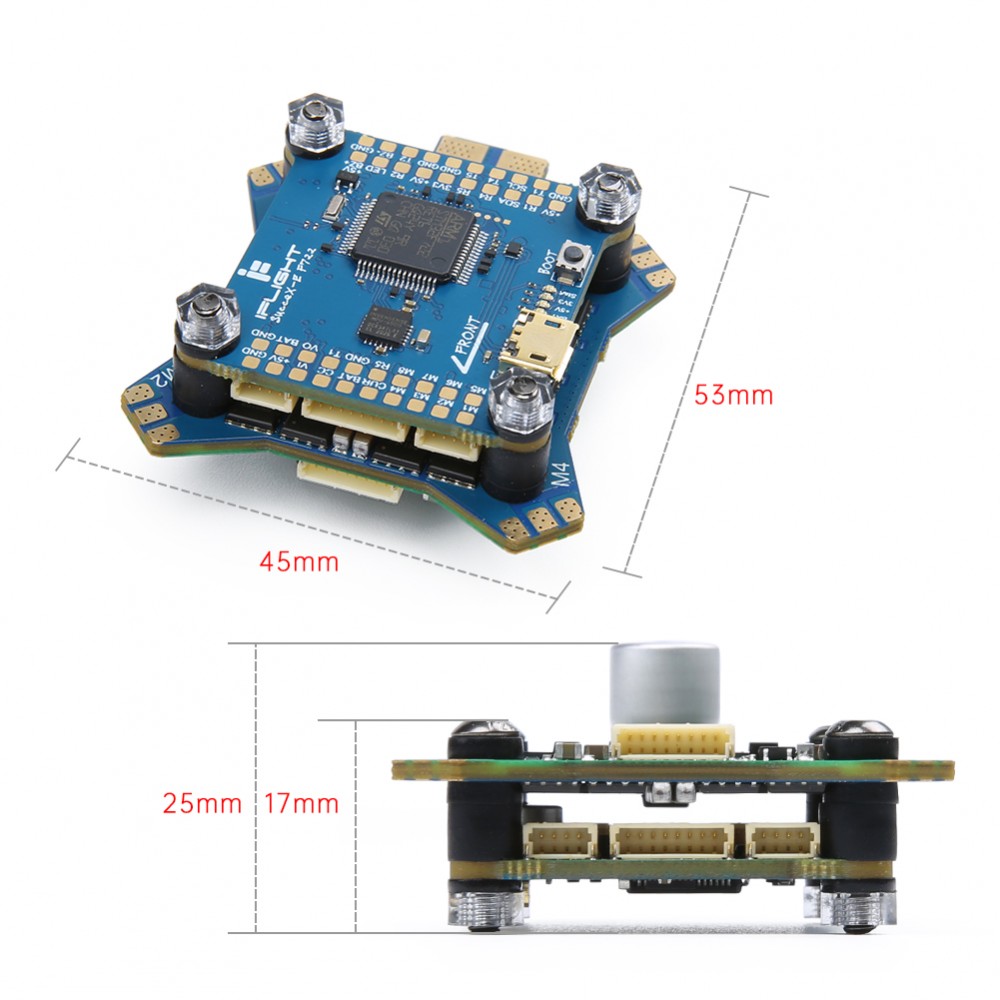

- Outer Size: 36*36mm / 30.5*30.5/φ4 mounting

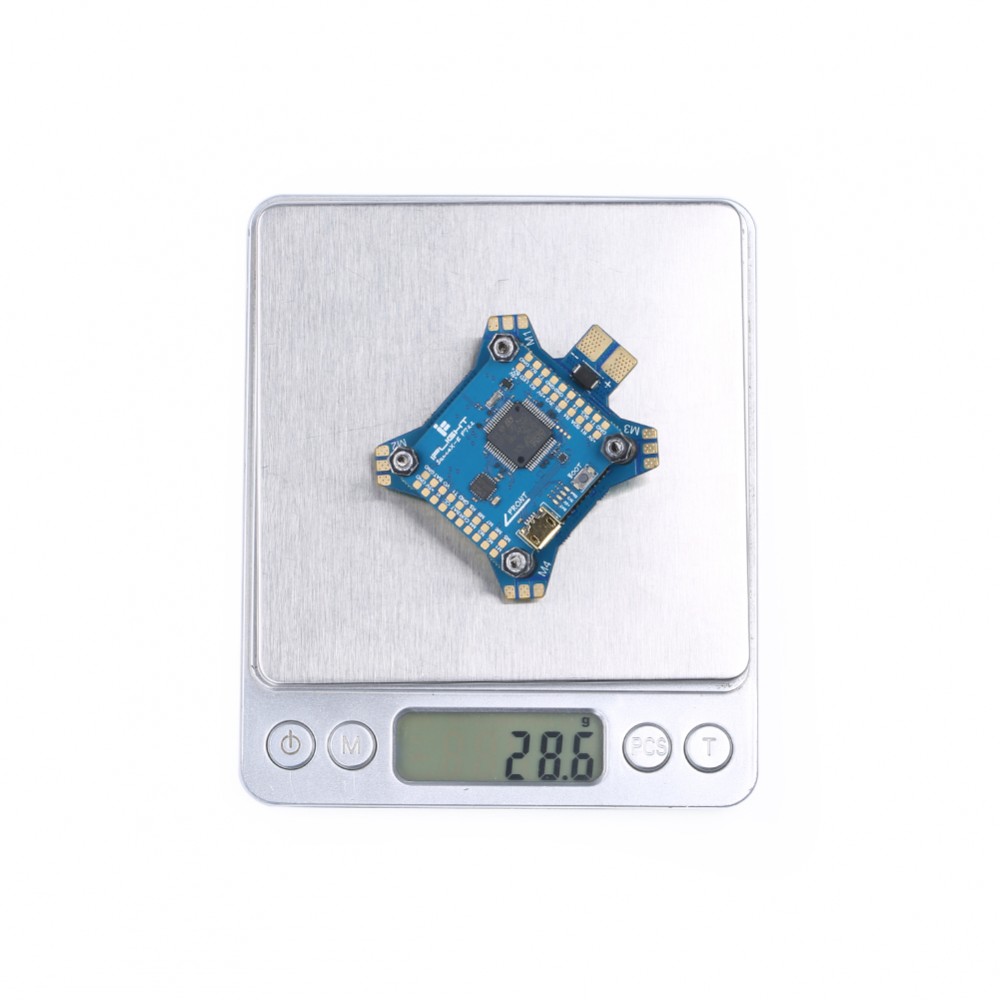

- Weight: 6.9g

Physical

- Mounting hole: 30.5*30.5mm,φ4mm

- Size: 36*36mm

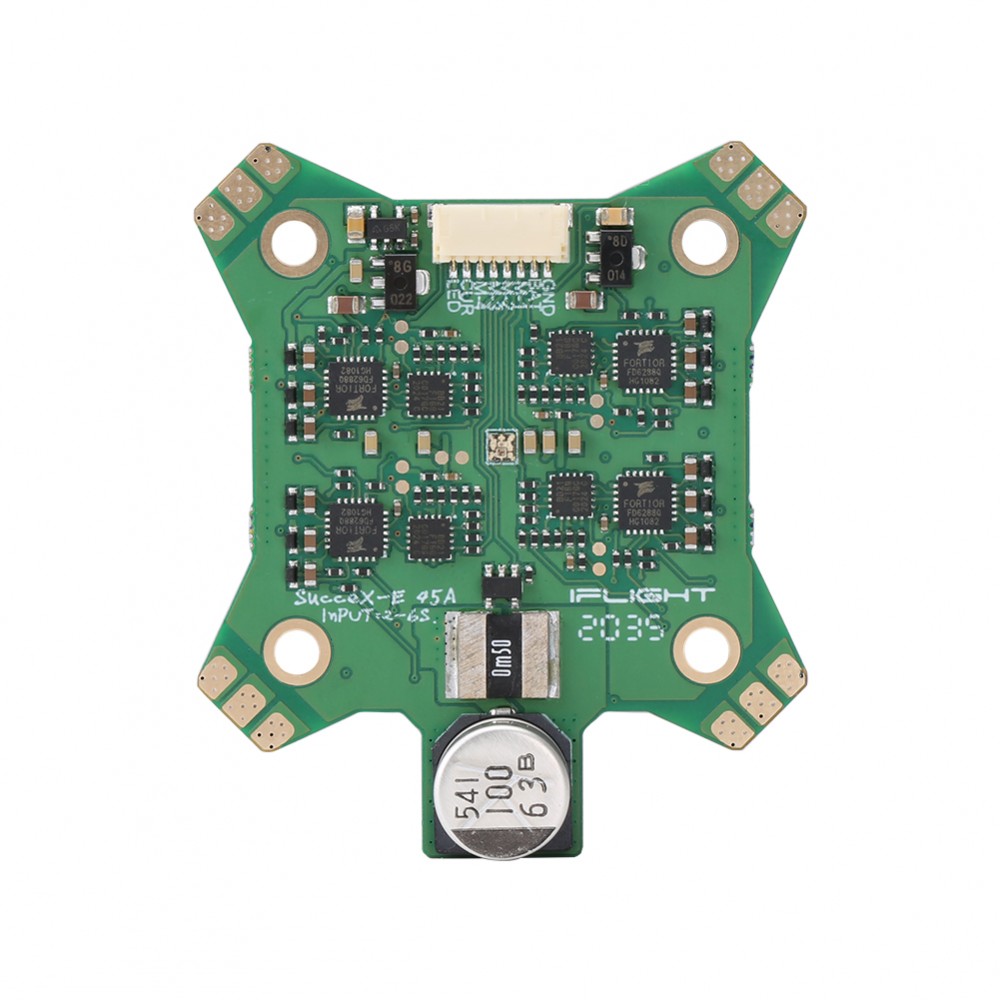

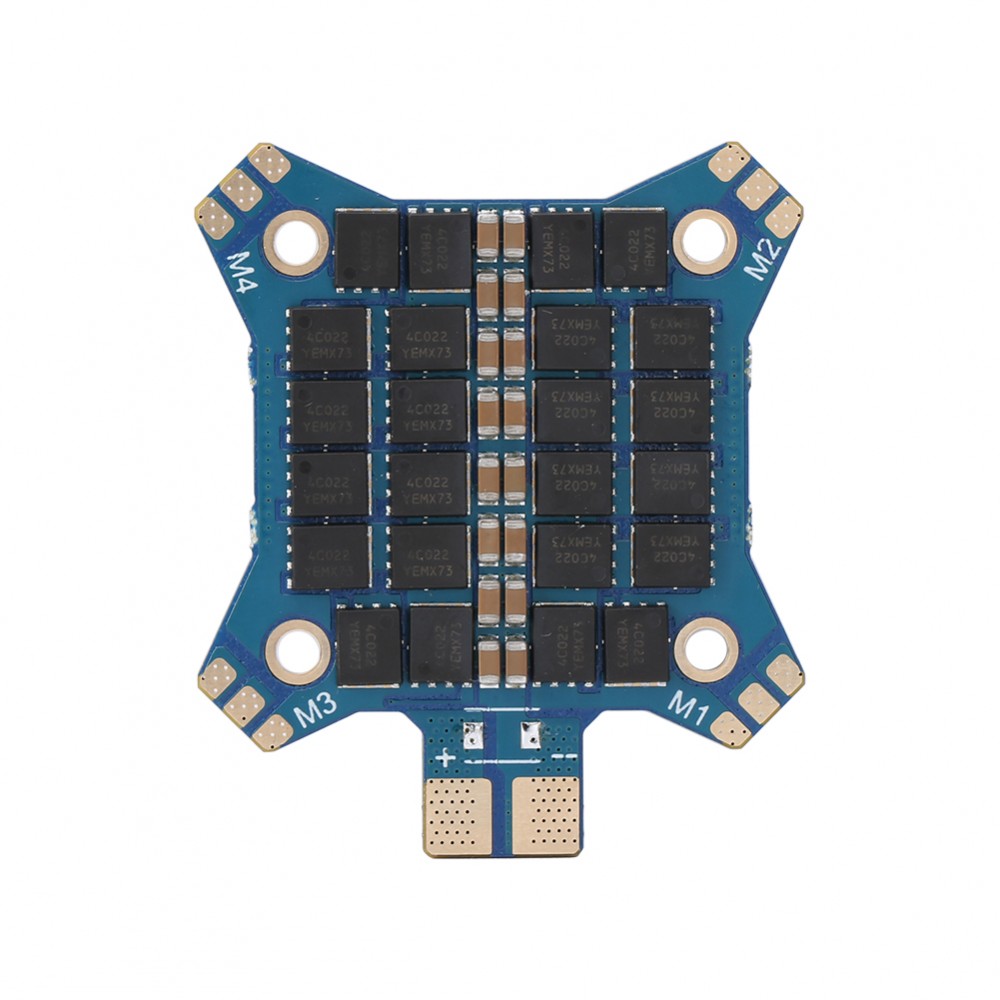

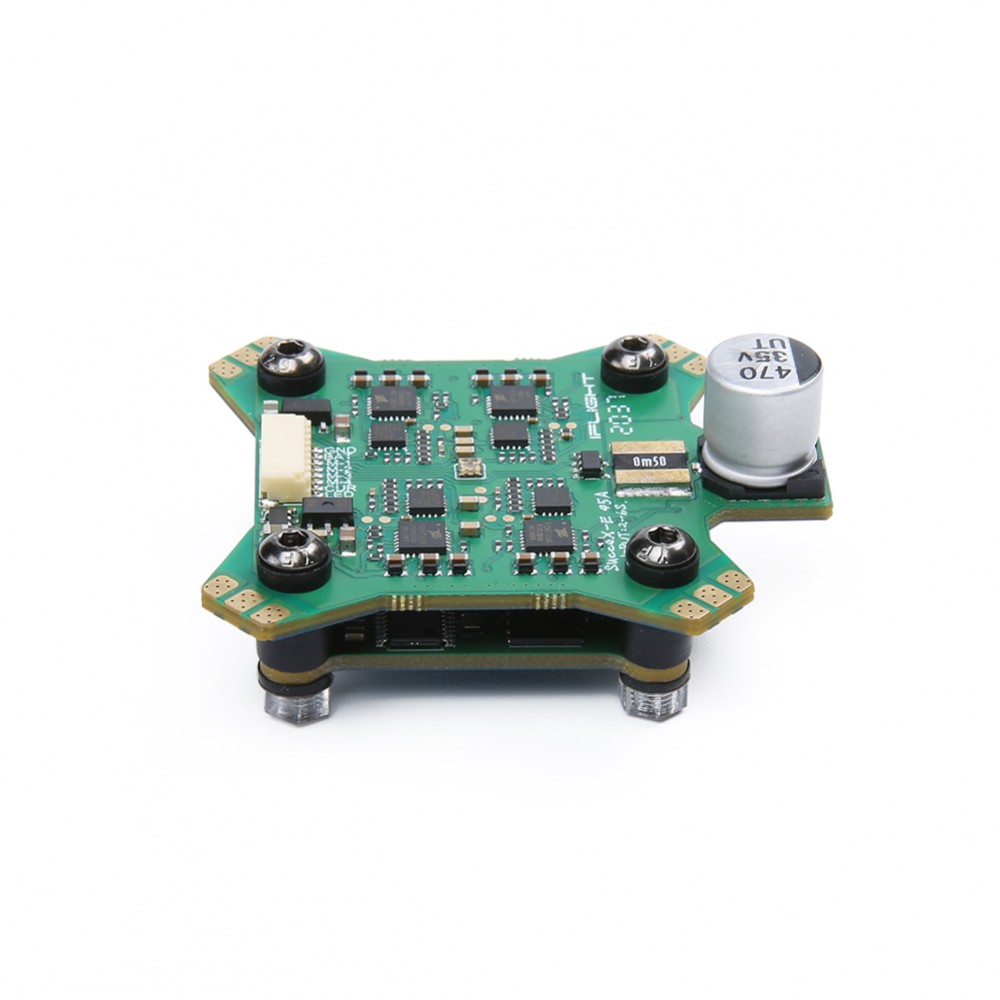

ESC // SucceX-E 45A V2 2-6S BLHeli_S 4-in-1 ESC

- Dimension: 36*43mm

- Mounting Holes: 30.5*30.5mm/Φ3mm

- Weight: 15g (without wire)

- Supports 2-6S Lipo input

- EFM8BB21 MCU, 24Mhz Runs BLHeli_S 16.X Firmware

- Current sensor: YES

- BEC: NO

-Constant: 45A / Burst: 50A

- Supports: DShot150/300/600/MultiShot/OneShot etc.

- Target: G-H-30 BLS 16.7

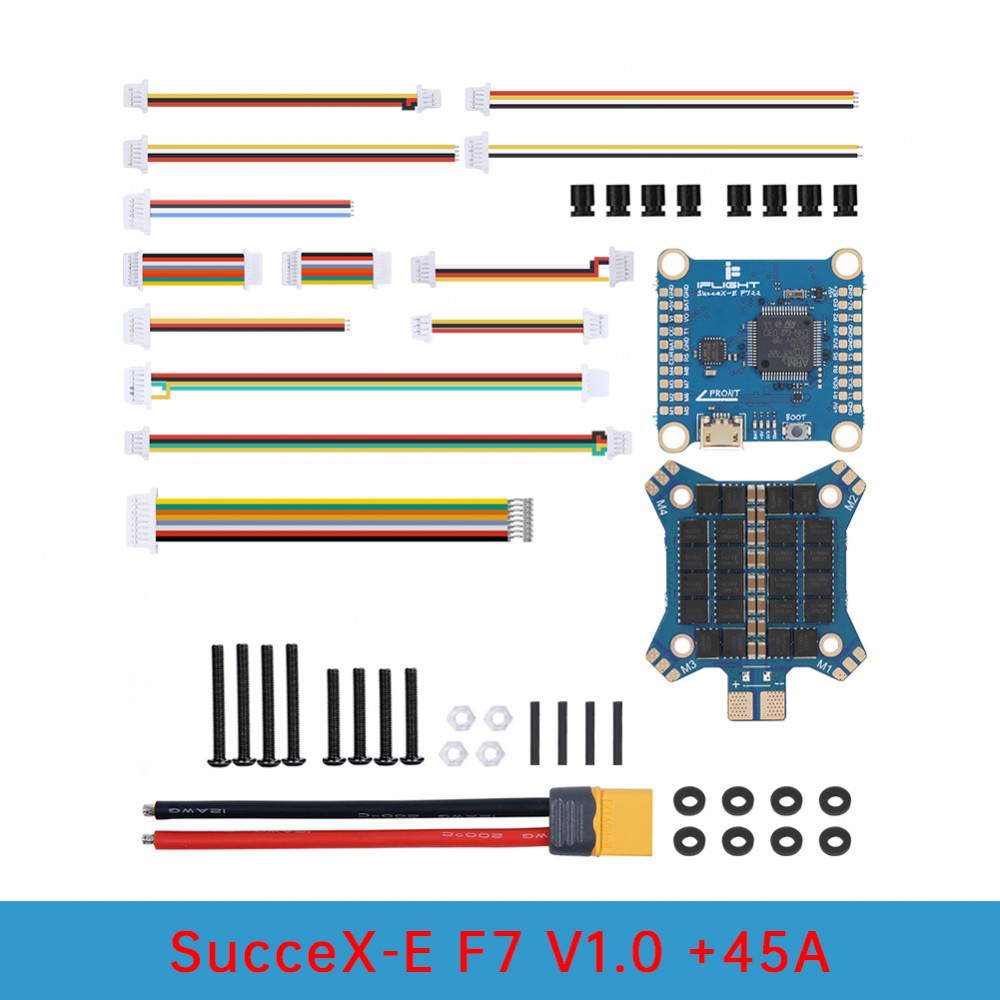

Package included:

1pc x SucceX-E 45A V2 2-6S BLHeli_S Dshot600 4-in-1 ESC

1pc x SucceX-E F7 Flight controller

1set x wire harness for F7 Flight controller

1pc x 8pin wire

1pc x 35v 470uF capacitor

8pcs x Silicone Grommets

1pc x XT60 connector with 14AWG wire
