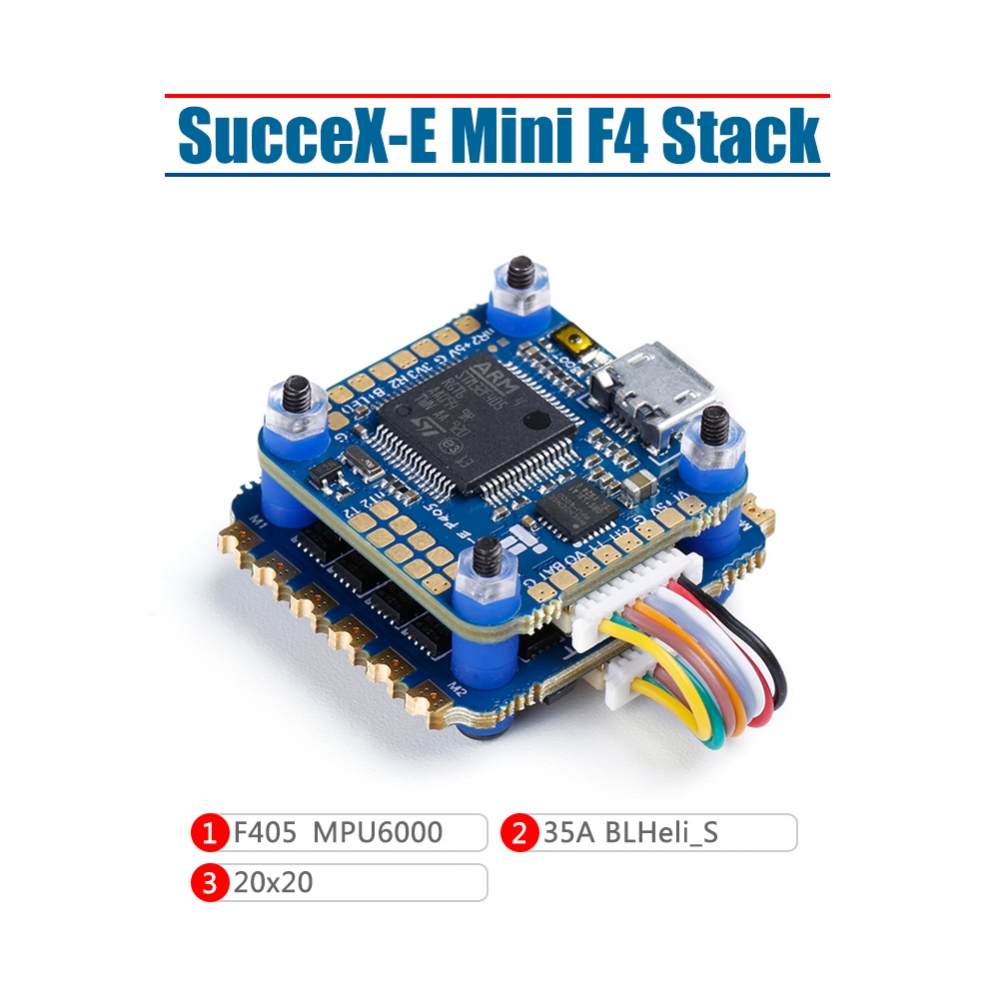

SucceX-E Mini F4 35A 2-6S Flight Stack (MPU6000)


61,00
FC06962
Σε Απόθεμα
+
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή

PRODUCT DESCRIPTION

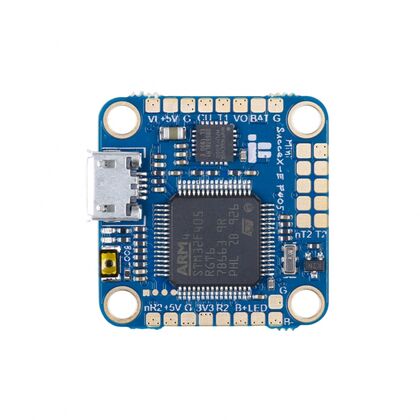

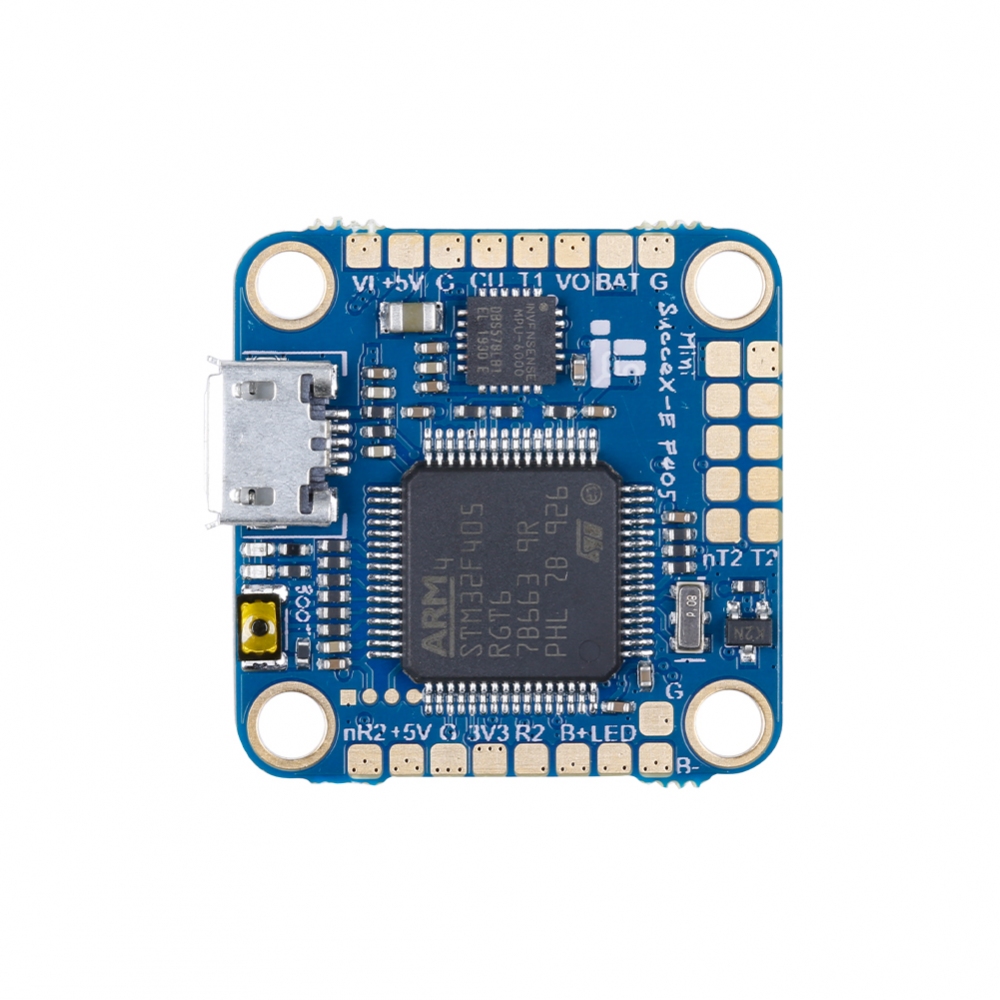

FC // SucceX-E Mini F4

Specifications:

- MCU:168MHz STM32F405

- Gyro:MPU6000

- Blackbox:8MB

- Betaflight OSD:YES

- BEC:5V 2.5A

- Uarts:5

- ESC Telemetry:yes

- INA Pad:nuart2

- Input voltage:2-6S

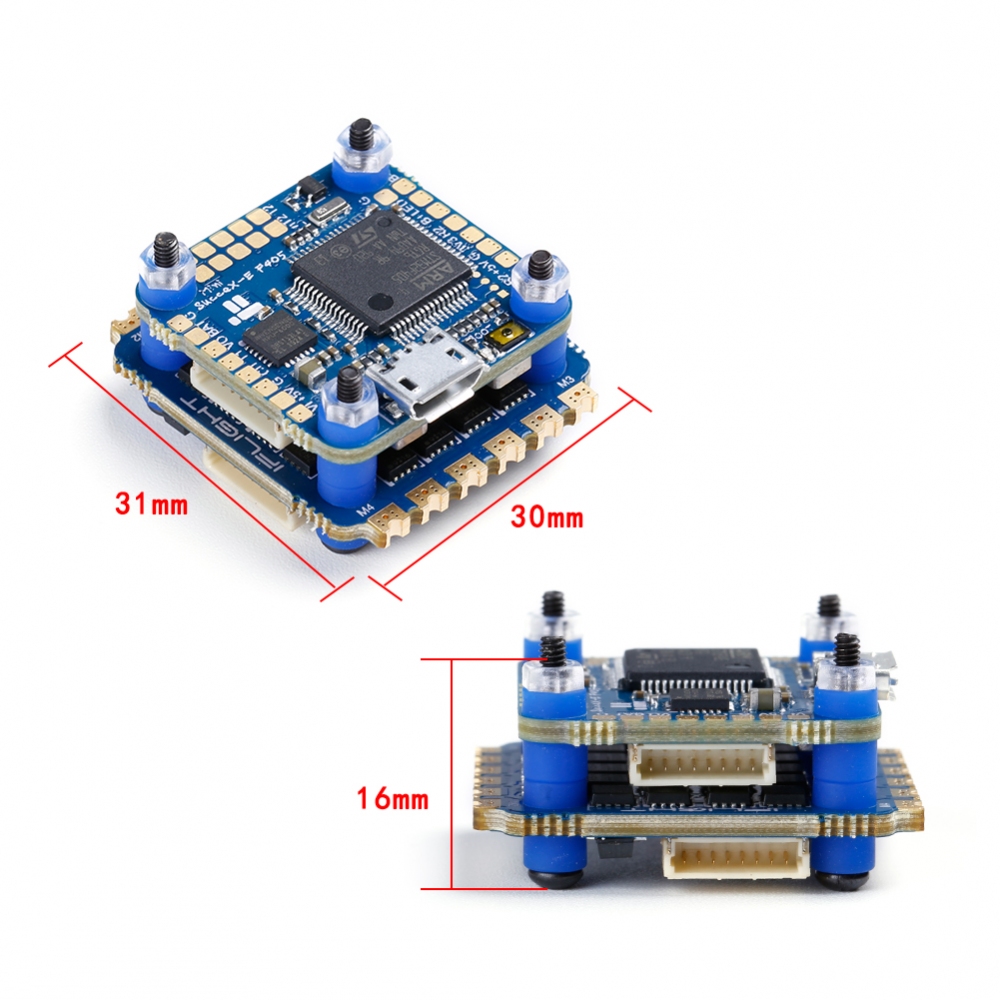

- Size:25*25mm /20*20mm φ3 mounting

- Weight: 4g

Physical

- Mounting hole:20*20mm,φ3mm

- Size:25*25mm

Download:

SucceX-E mini F4 Manual


ESC // SucceX-E Mini 35A

Top Features:

- 6 layers double-sided PCB board

- 2oz 1.4mm thick power board

- TDK MLCC Low ESR ceramic capacitors

- Top grade 2R203 MOSFET

Specification:

  • MCU: BB21 F16G
  • BLHeliS
  • Capacitance: 470uF/50V
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Constant: 35A / Burst: 40A
  • BEC: No
  • Supports up to Dshot1200, Proshot, Oneshot, Multishot
  • Target: G-H-30
  • BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHe...
  • Weight:6.9g
  • Mounting pattern: 20*20, φ3mm with Grommets φ2mm
  • Dimensions: 31*30mm (including the power pads)

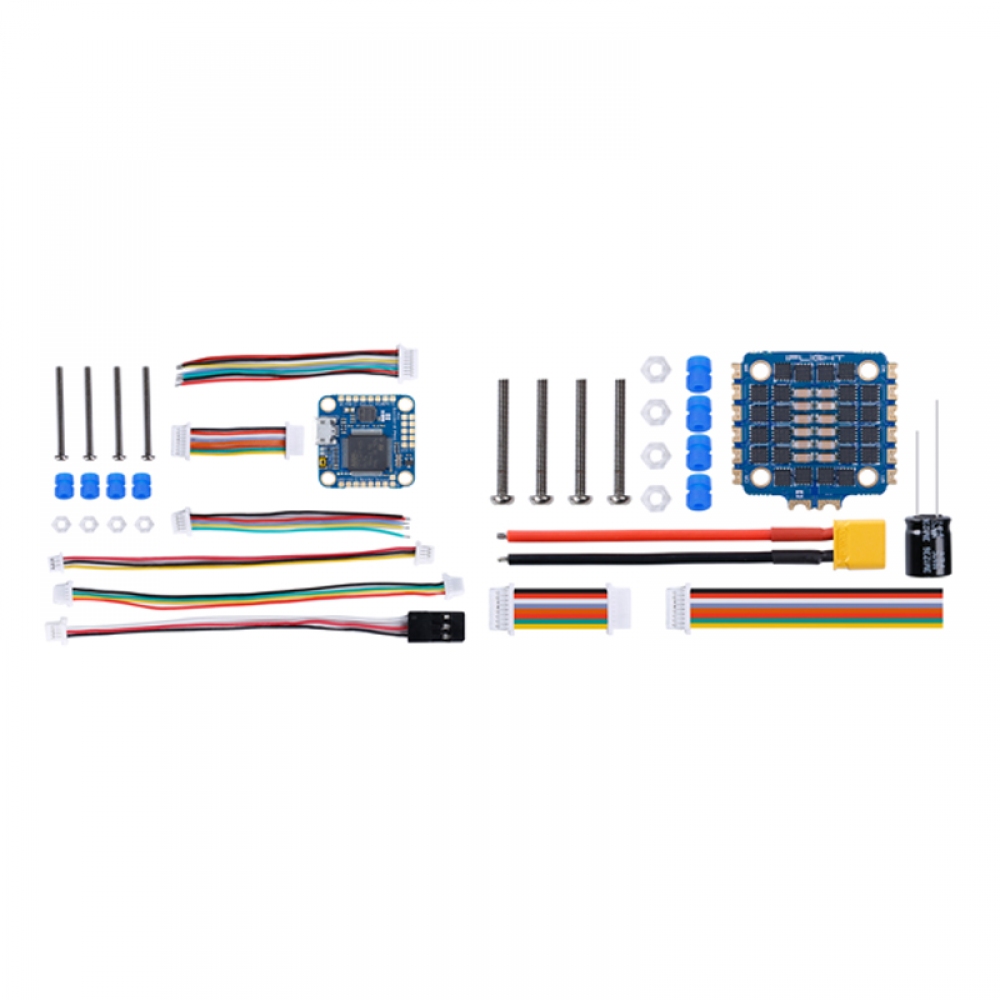

Package included:

-1pc x SucceX-E mini F4 Flight controller
-1pc x SucceX-E mini 35A 4in1 ESC
