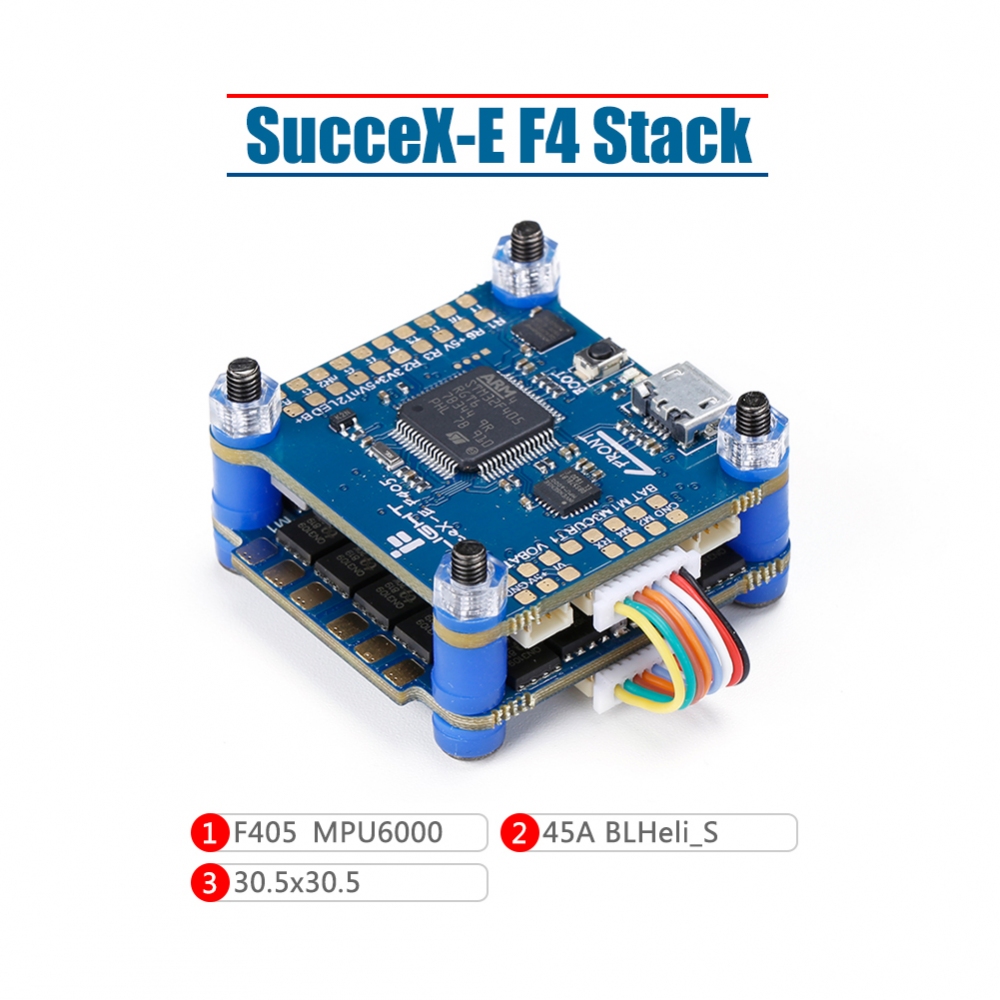

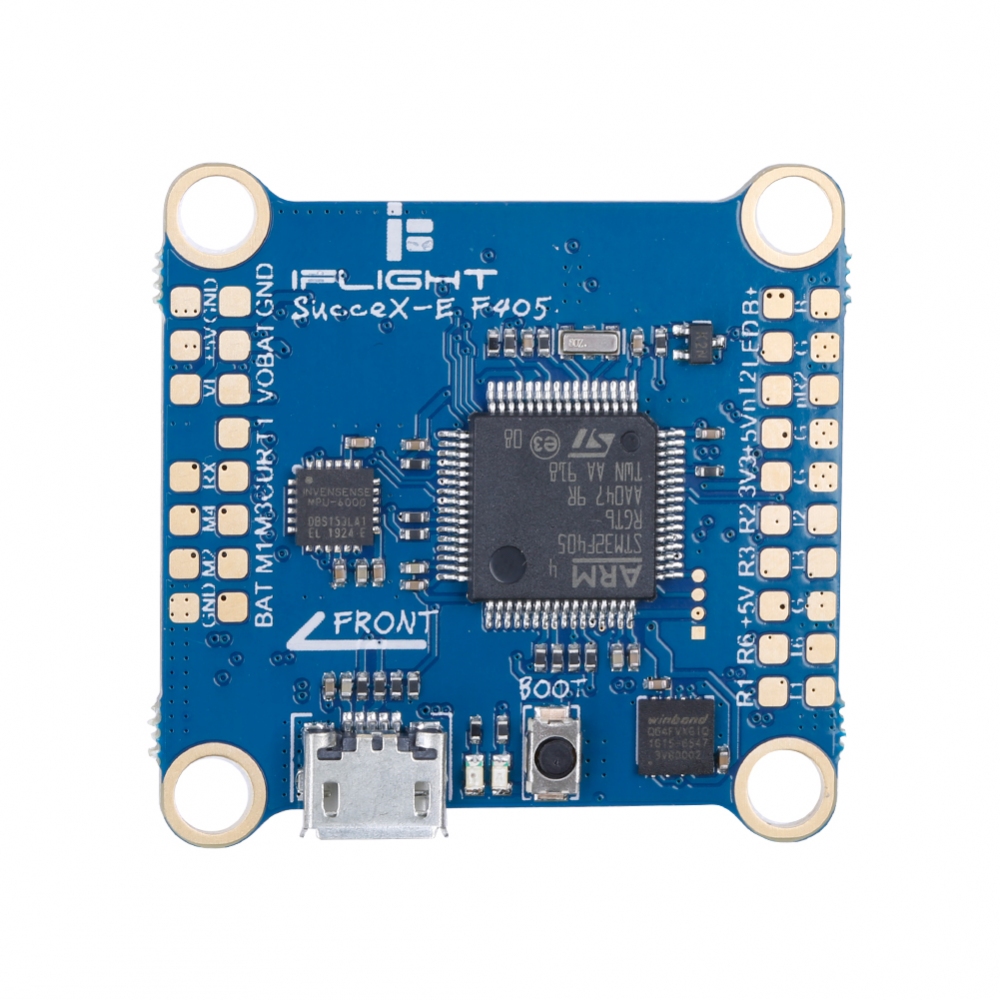

SucceX-E F4 Flight controller Specification:

- MCU：STM32F405

- IMU：MPU6000

- Betaflight OSD：YES

- Blackbox：8MB

- 4X Uarts（1 2 3 6 )

- 8 x Dshot/Proshot/Oneshot output

- 8 x individual ESC power/ signal pads

- 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

- VTX protocol：YES（IRC Tramp）

- WS2812 led Strip：YES

- Baro：No

- Beeper：YES

- Input：2-6S（Max 8S）

- BEC：5V/2.5A cont

- Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

Physical

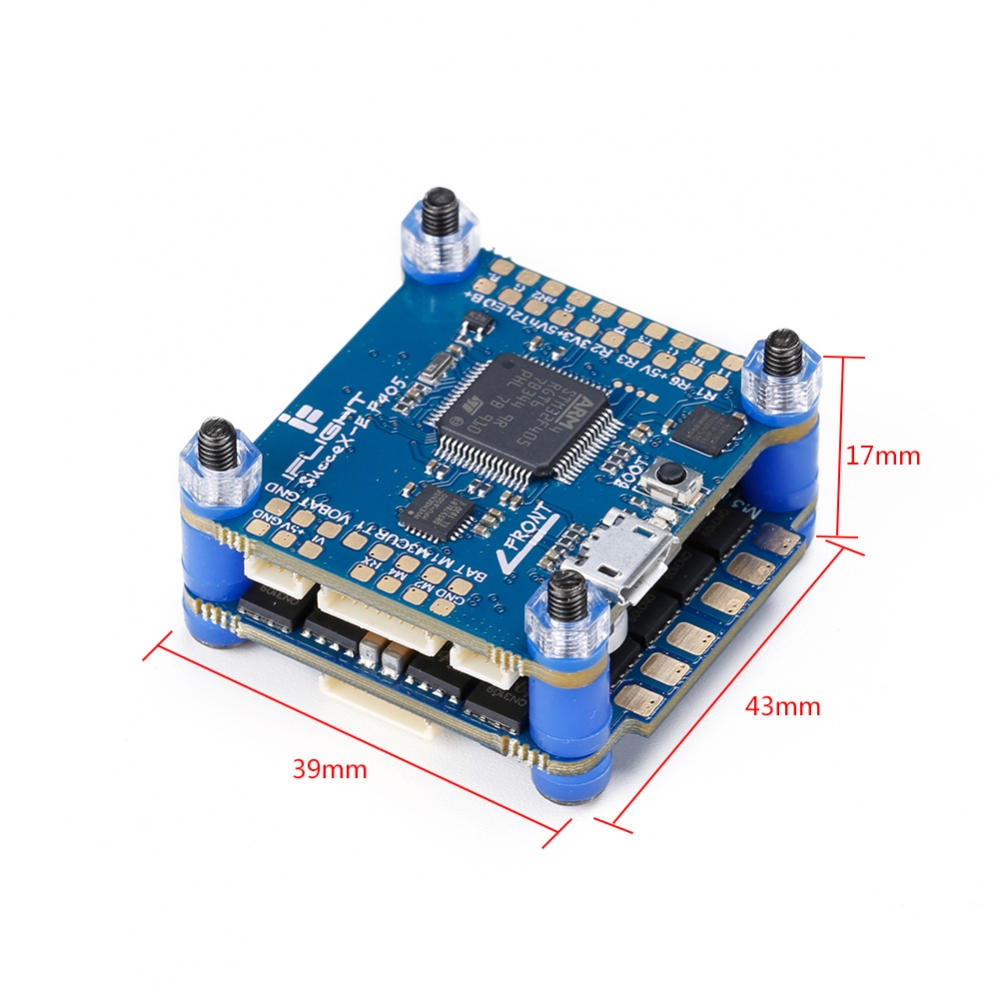

- Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm

- Dimensions：36*36mm

- Weight：7.6g

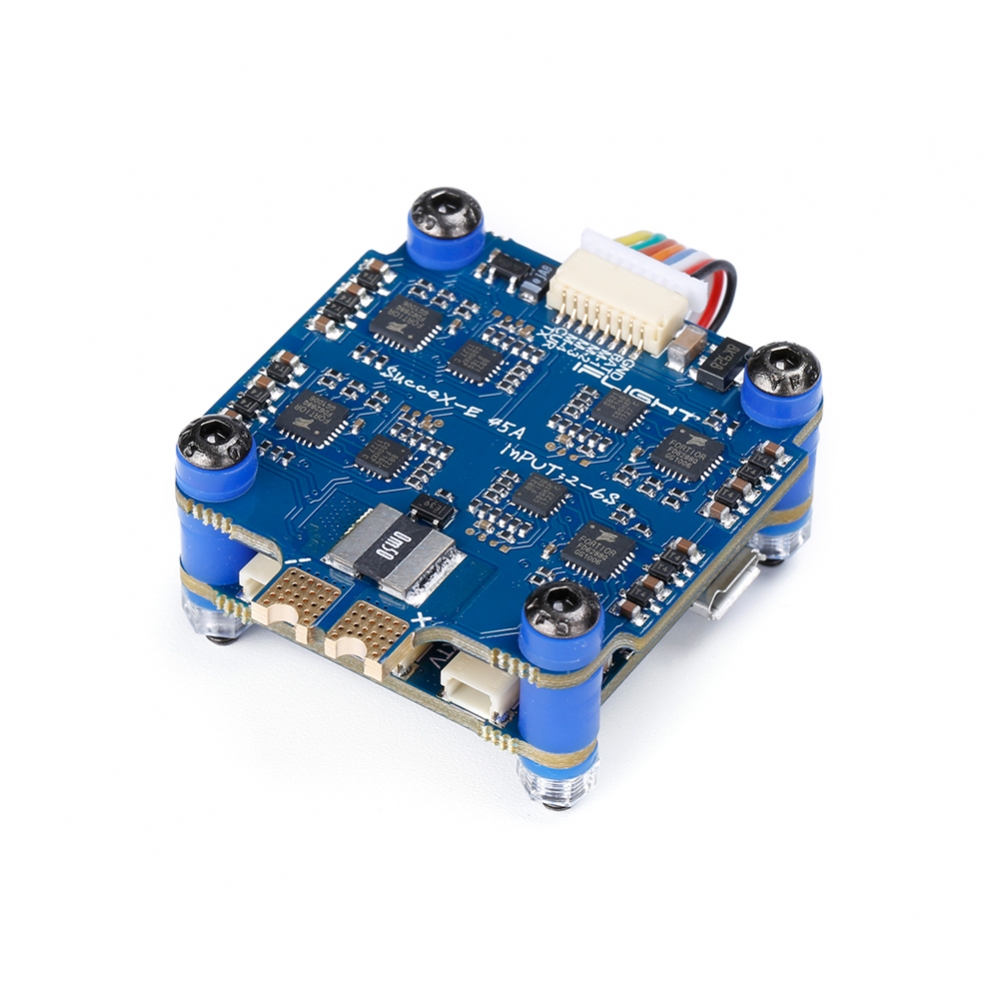

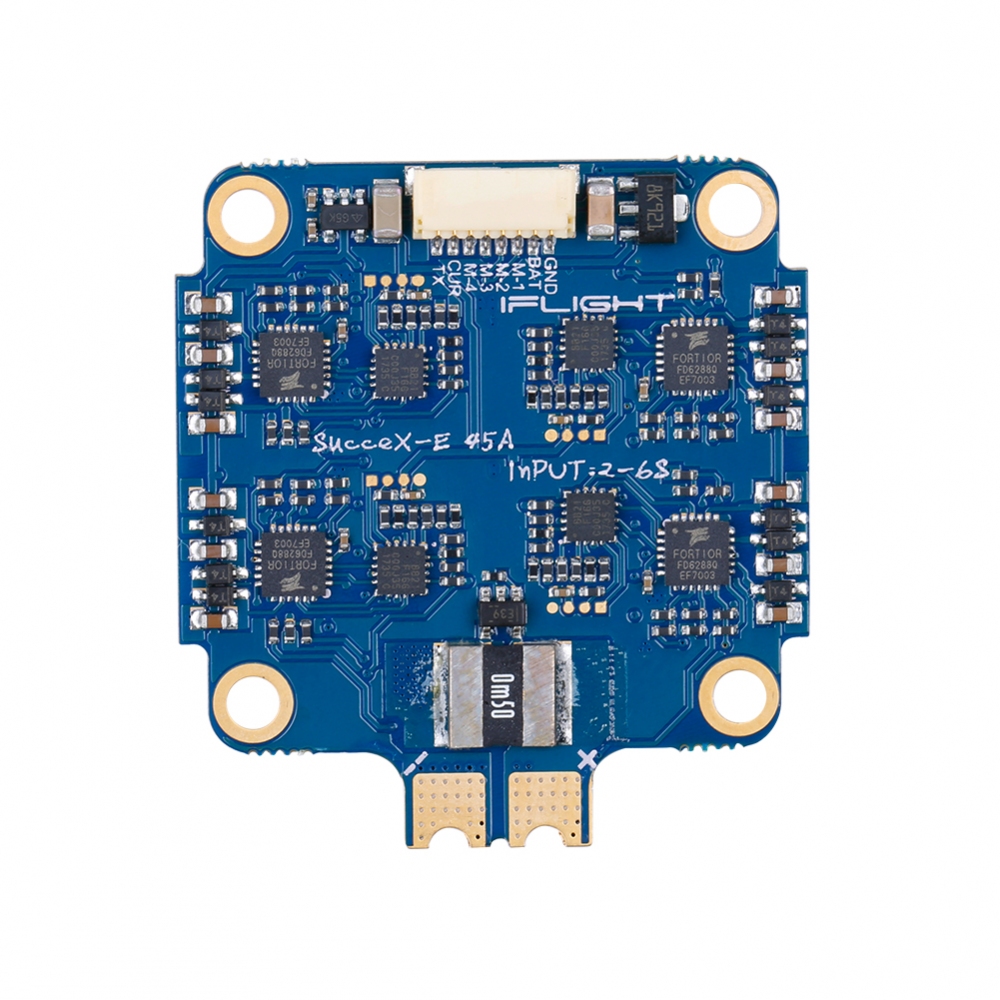

SucceX-E 45A 4in1 ESC Specification:

- Dimension: 40*43mm

- Mounting Holes: 30.5*30.5mm/Φ3mm

- Weight:14.4g

- Supports 2-6S Lipo input

- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

- Current sensor: YES

- BEC: NO

- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

- Target: G-H-30 BLS 16.7

-BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHe...

*SucceX-E F4 MANUAL

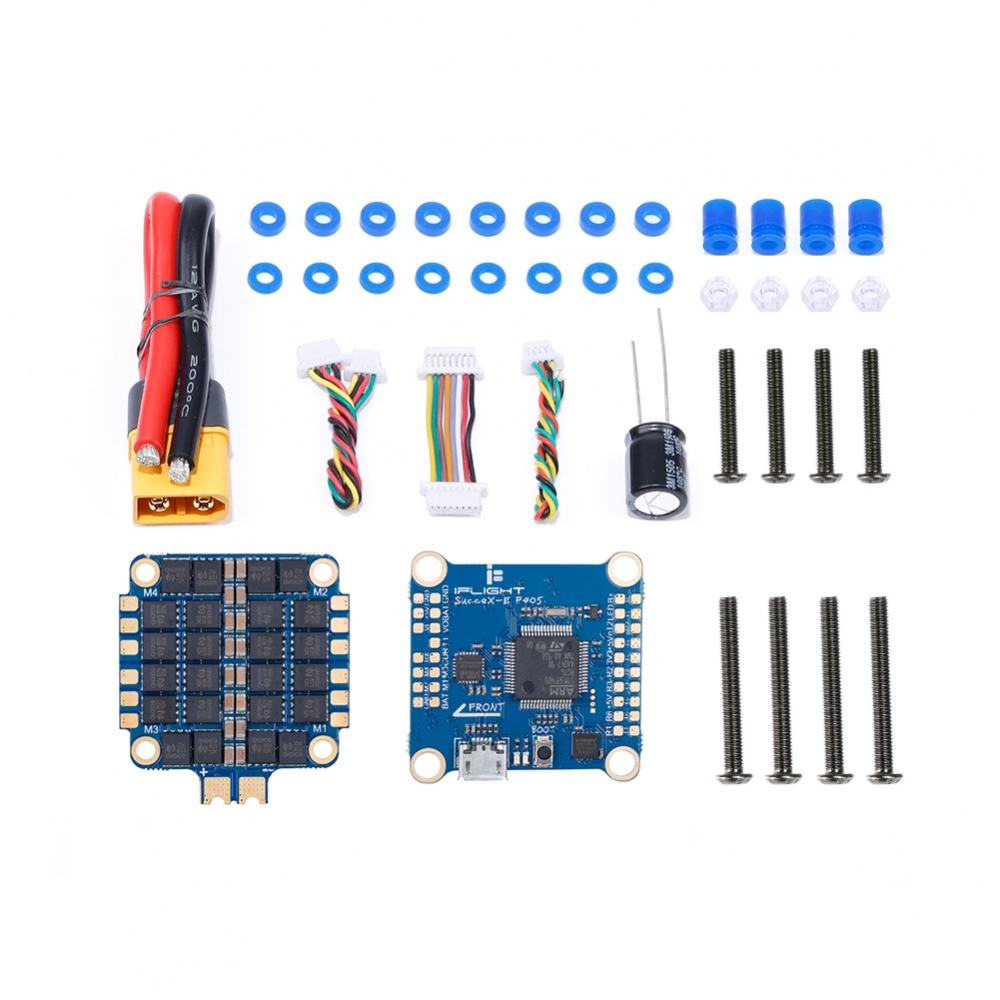

Package included:

-1pc x SucceX-E F4 Flight controller

-1pc x 45A 4in1 ESC
