PRODUCT DESCRIPTION

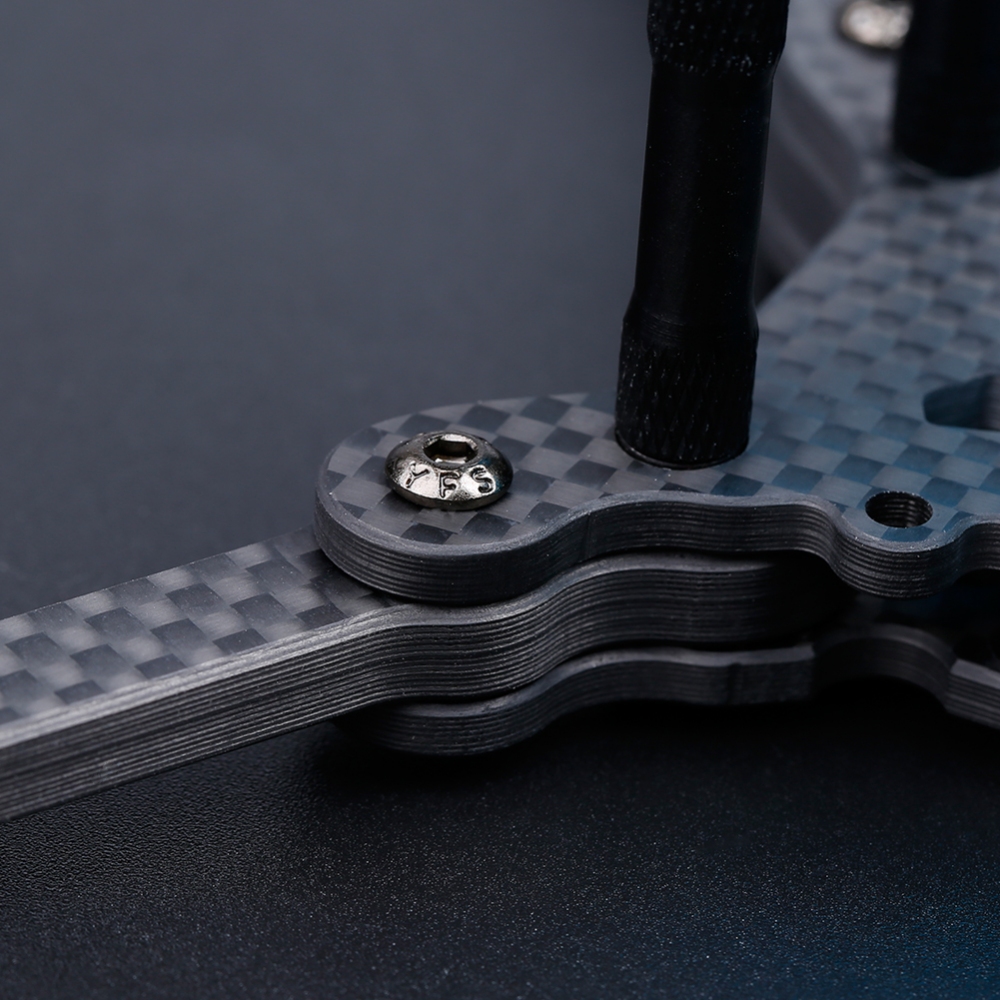

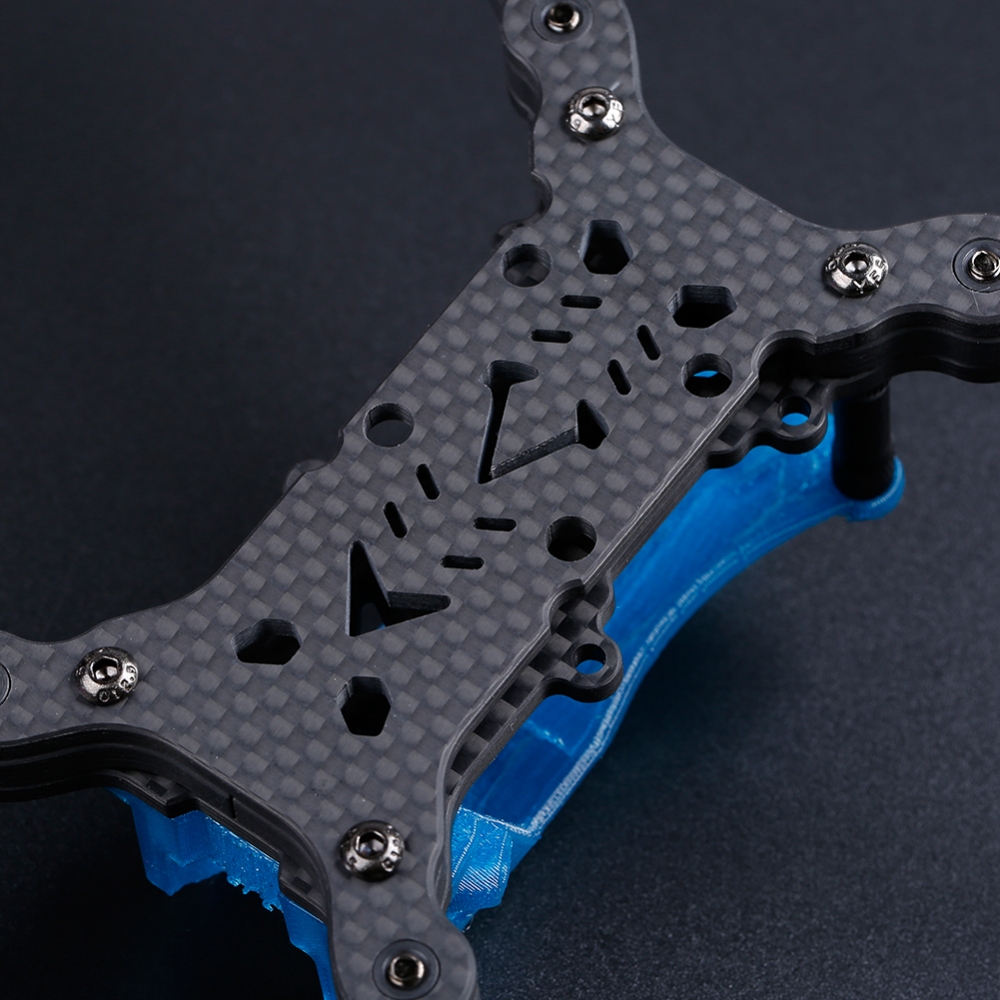

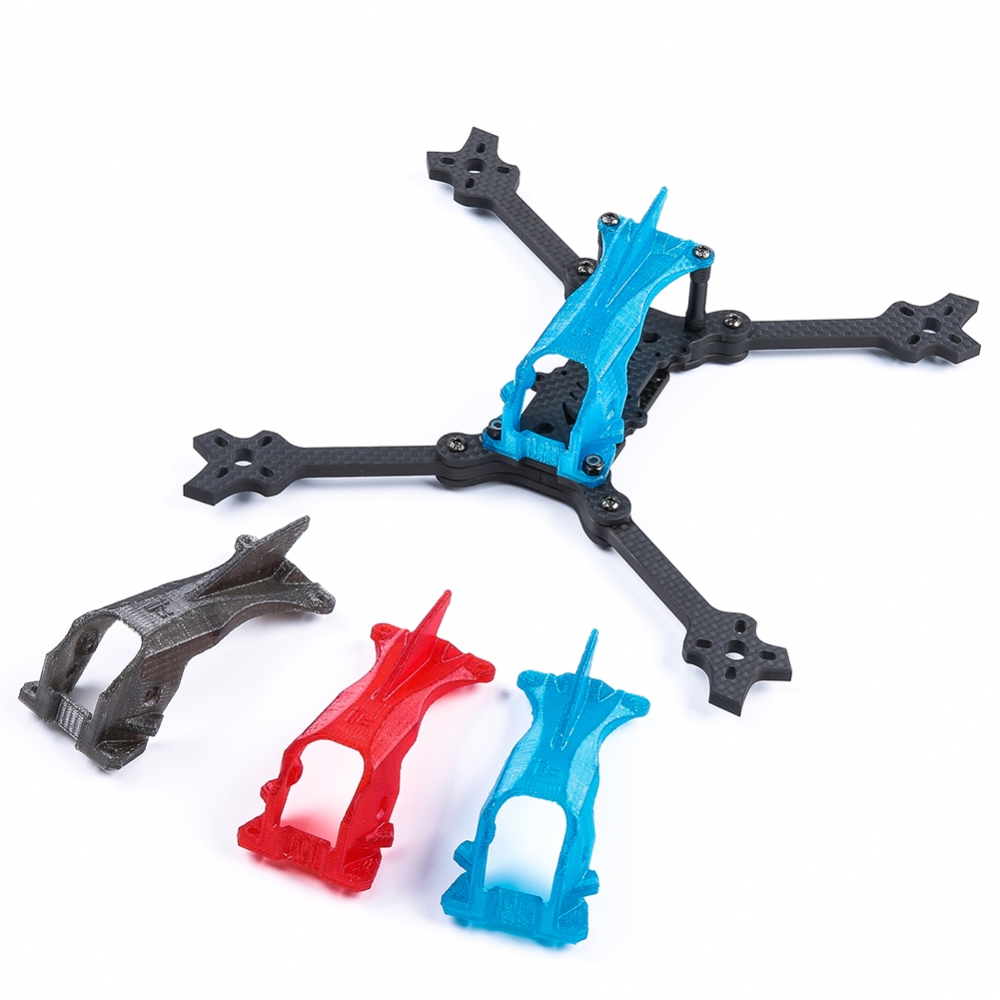

The RACE H5 H-Quad is a low weight standard Sport FPV Quadcopter frame. This H-Quad is designed with standard 30.5x30.5mm & mini 20x20mm electronic equipment. Perfectly compatible with SuccceX F4 and SucceX mini F4 flytower system. Designing with quick-release arms, various color canopy (pink, purple, blue) for your selection.

Features:
-Full 3K Carbon Fiber airframe
-Easy arm swaps -205mm wheelbase, 75.8g
-Popular H-Quad configuration
-Fits both 30.5x and 20x stacks

Specifications:

- Type: 5" FPV Race frame

- Frame wheelbase: 205mm

- Dimensions: 148*143mm (body dimension)

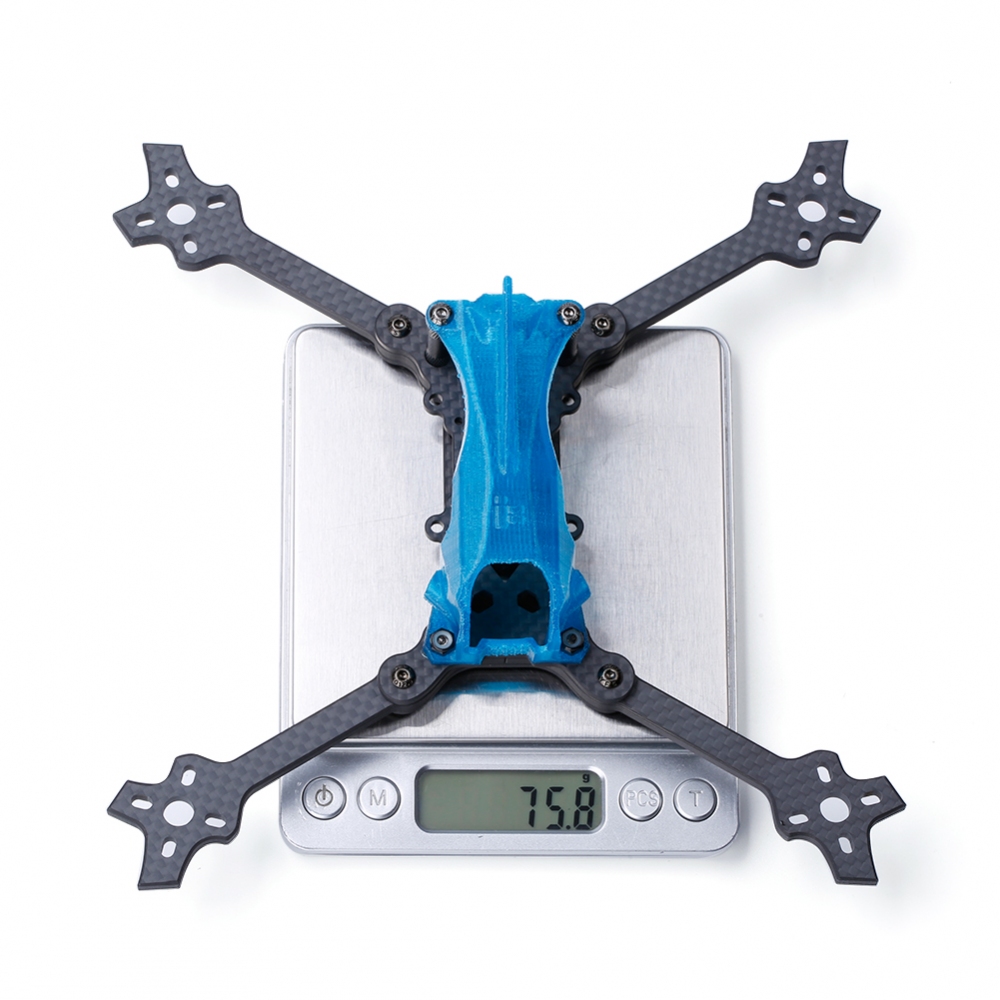

- Frame weight:75.8g approx

- Standoff: M3*25mm(2pcs)

- 5mm thickness, 8mm width arms

- Mounting Holes: 30.5*30.5mm/20*20mm

- Support camera size: 19*19mm

- Recommended motors: 22xx, 23xx

Recommended pack list: (not included)

XING X2207 2450KV 4S

XING X2207 1800KV 6S

Nazgul 5140 propellers

SucceX mini F4 TwinG Stack w/500mw VTX

SucceX mini F7 TwinG Stack w/500mw VTX

SucceX F4 TwinG V2.1 + SucceX 50A 4in1 ESC Stack

SucceX F7 TwinG V2.1 + SucceX 60A 4in1 ESC Stack

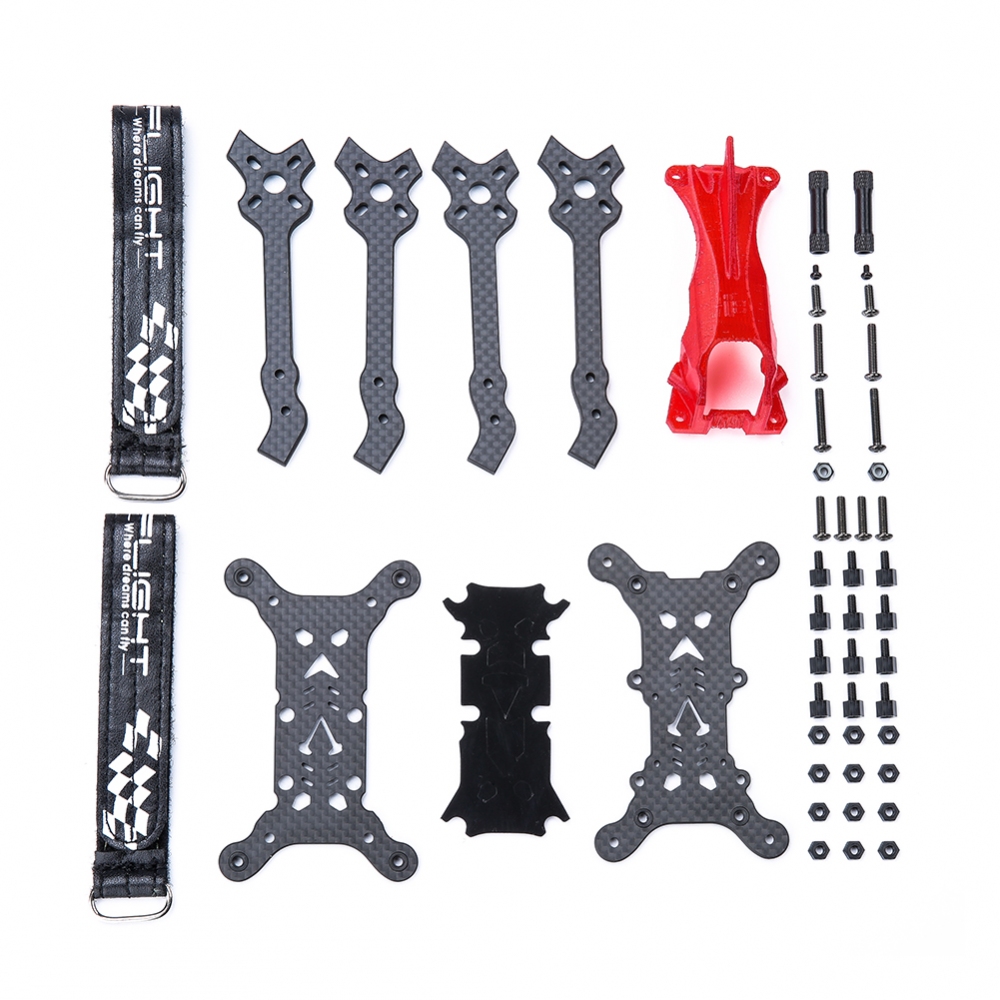

Package included:

1set x H5 frame

1pack x screws

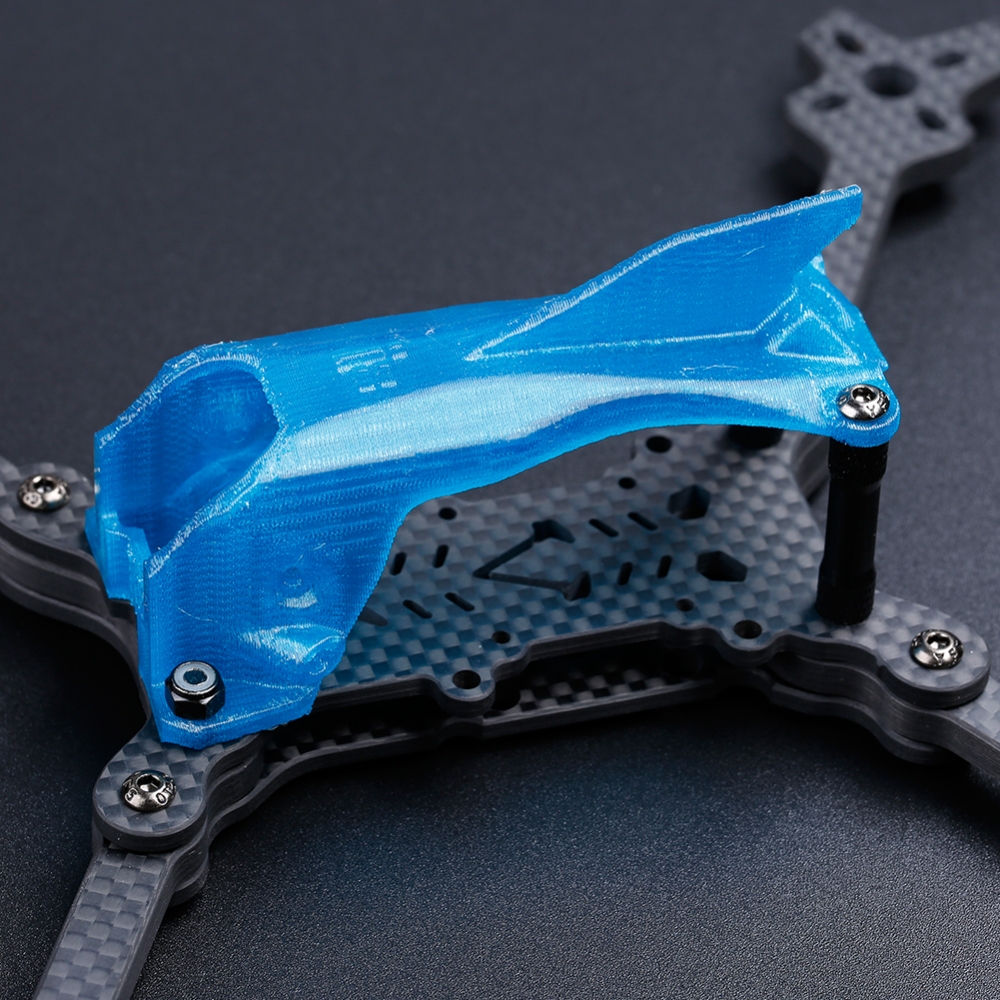

1pc x TPU Canopy

2pcs x battery anti-slip mat

1pc x battery straps
