PRODUCT DESCRIPTION

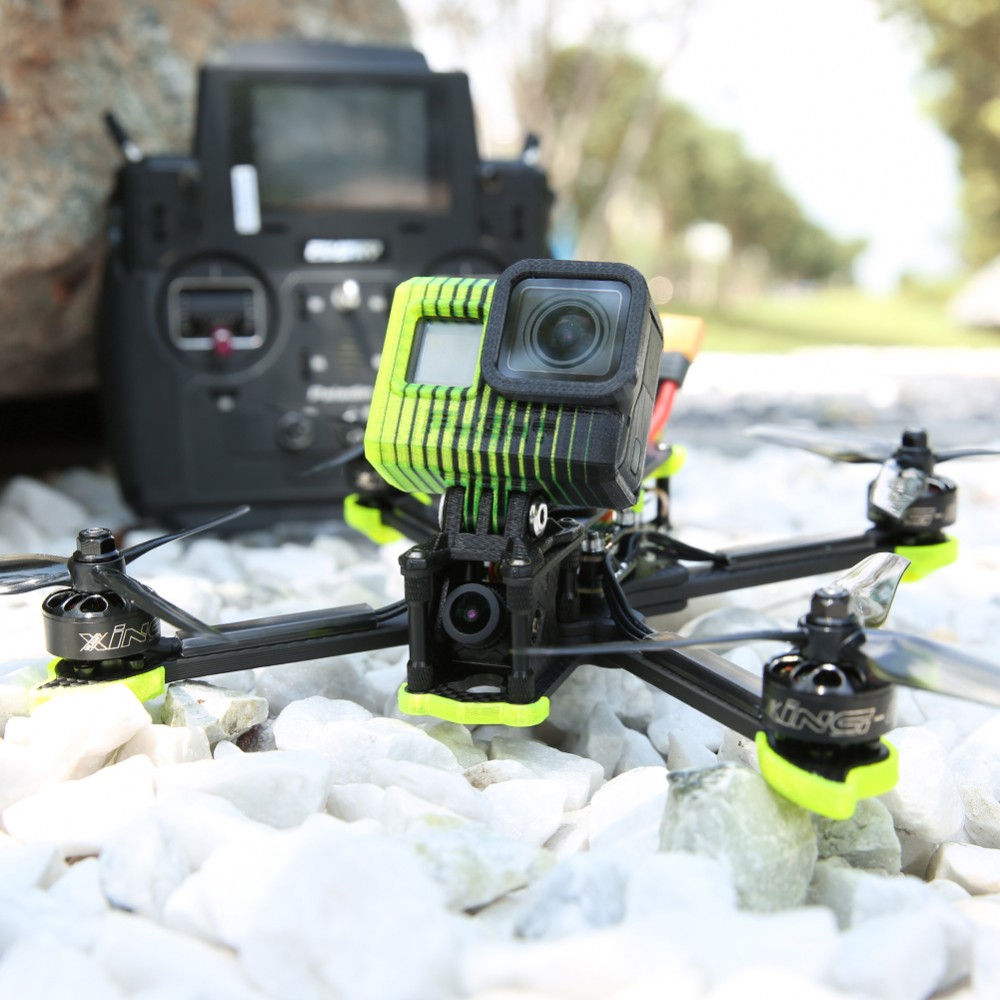

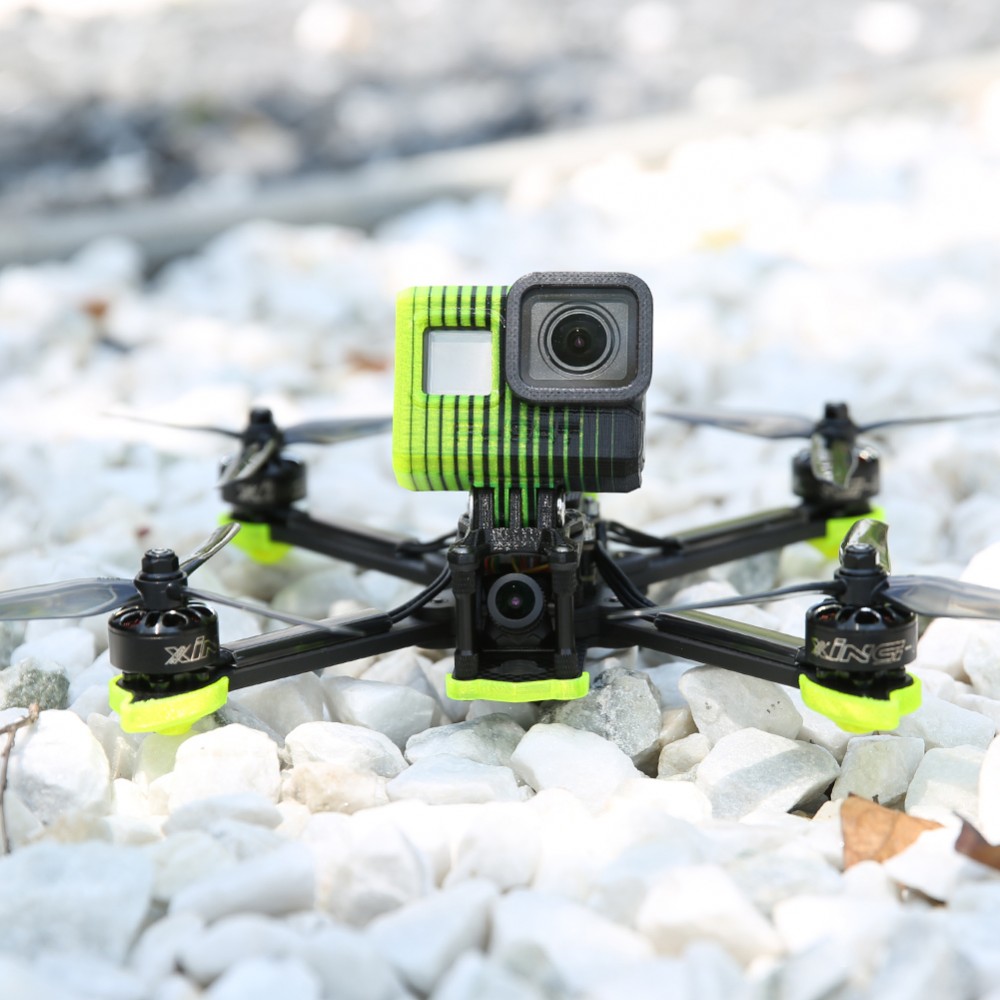

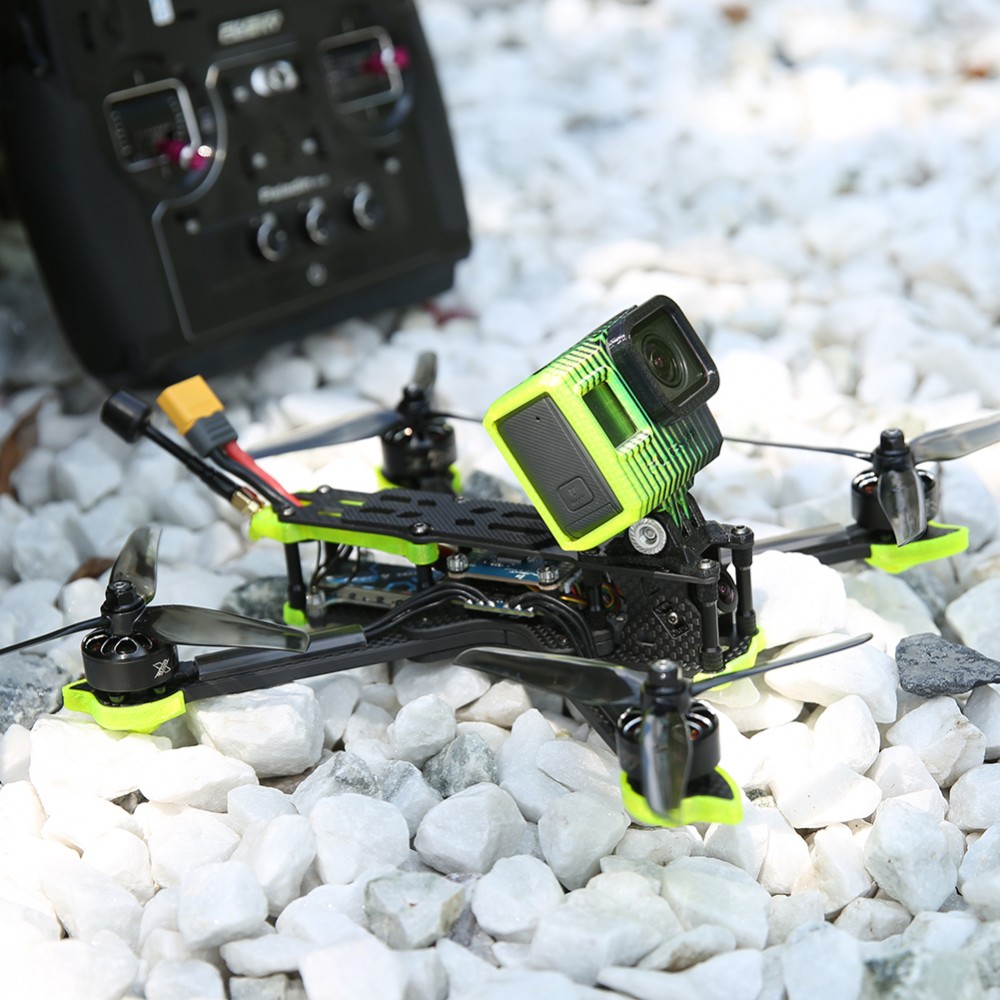

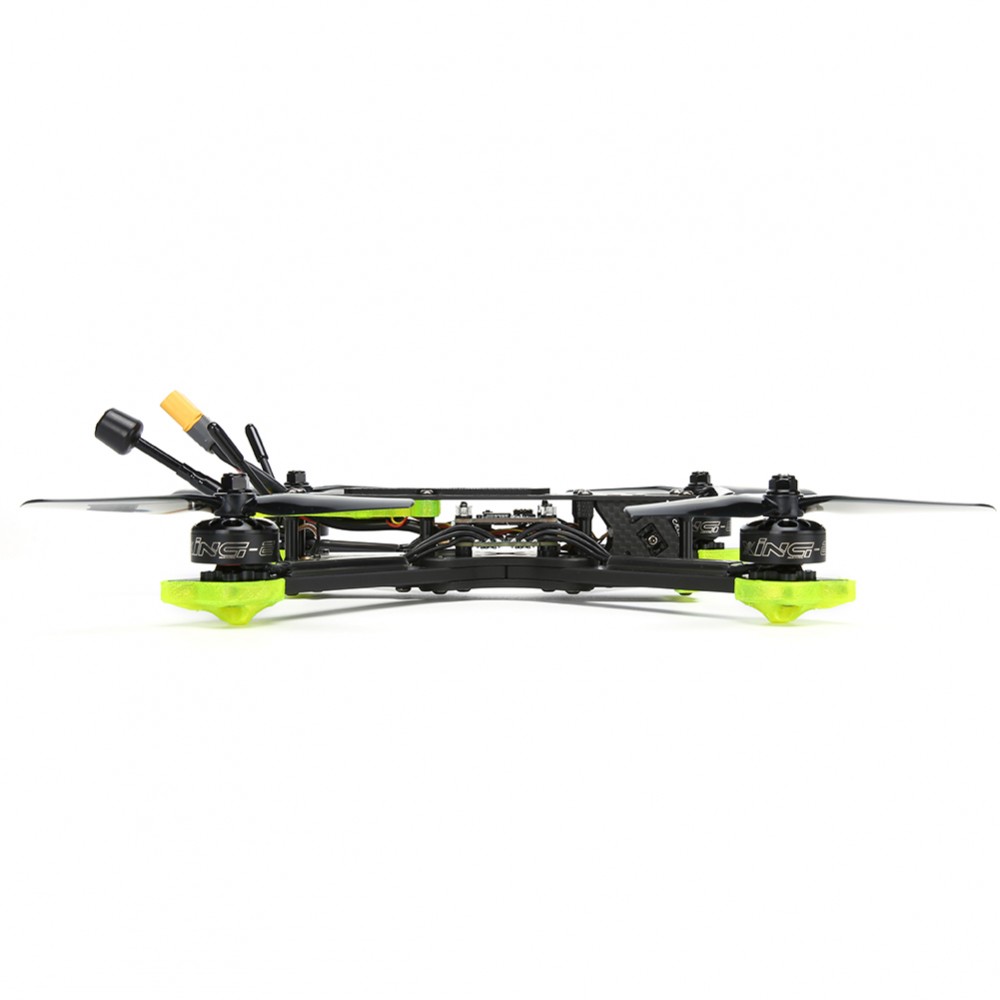

Nazgul5 V2 is a 5" size BNF (Bind-and-Fly) quadcopter. it is updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easy-swap out in field. Wanna strap your GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
HIGHLIGHTS:
- 5mm arm design for more durability
- Easy-Swap arms

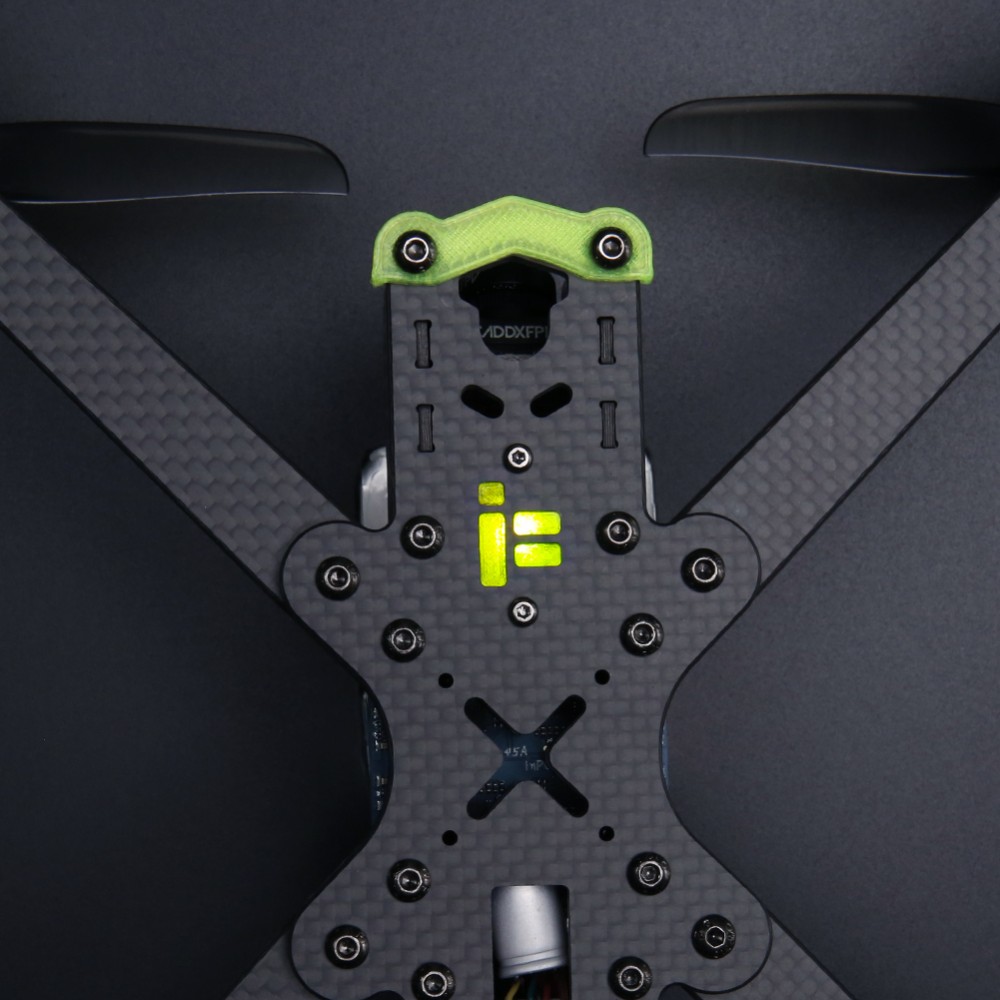

- LED illuminated Logo

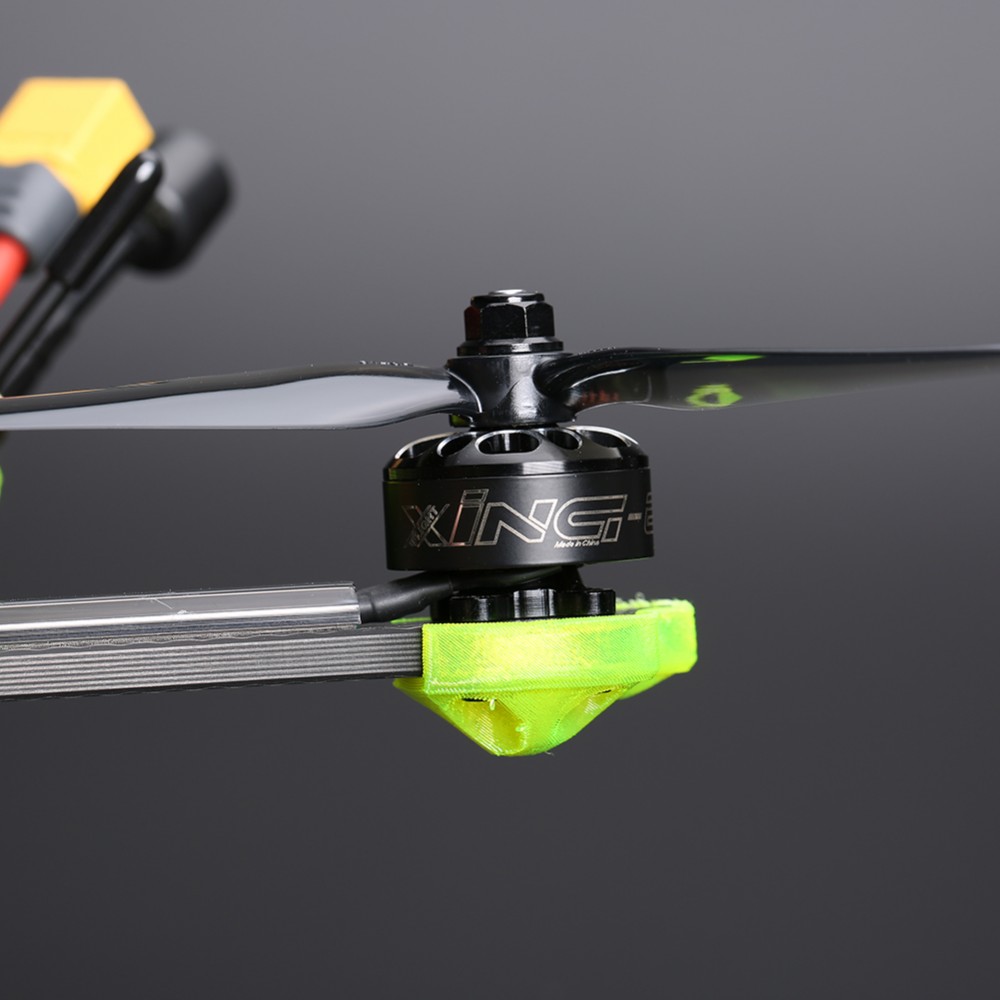

- XING-E 2207 motors and NAZGUL 5140 props
- 5" version also fits 5.1" style propellers
- Popular True-X configuration
- TPU crash-guards
- Fits both 30.5x and 20x stacks
XL5 V5 frame specs:
- SucceX-E F4 45A flight stack
- XING-E 2207 FPV Motor （6S 1800KV / 4S 2750KV)

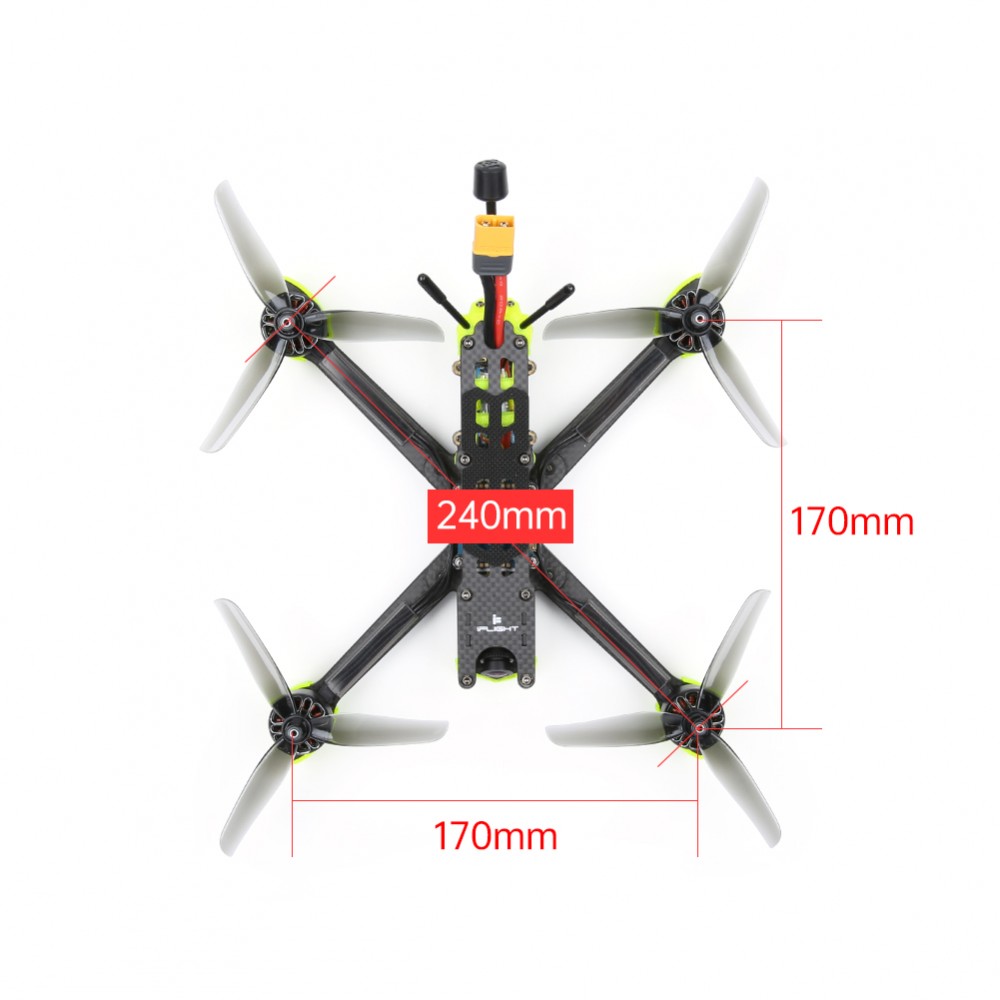

- Wheelbase: 240mm*240mm
- Body size: 170*170mm
- Propeller size: 5 inch /5.1 inch
- FC pattern: 30.5*30.5/20*20 mm
- FPV cam spacing: 19mm

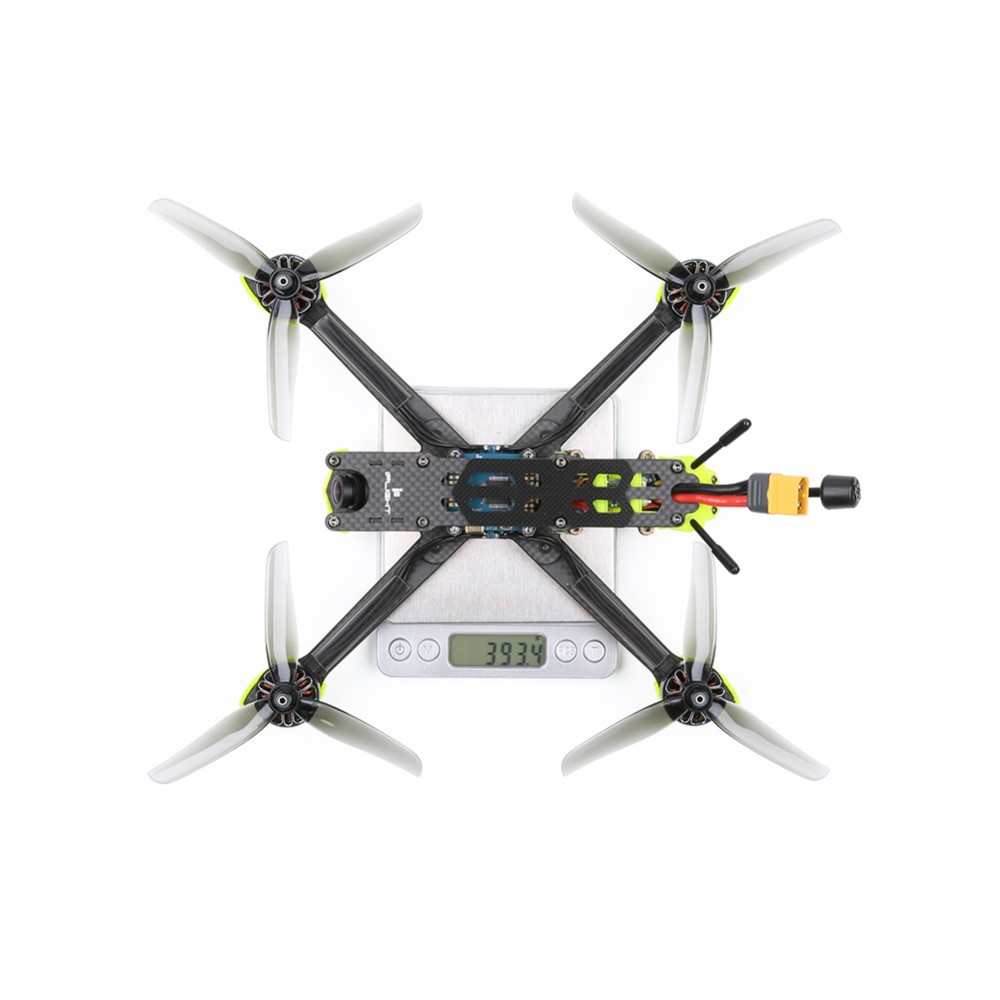

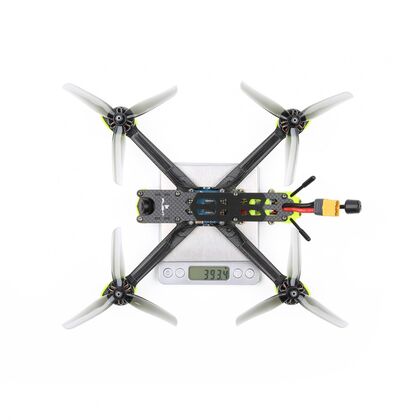

- Weight: 393.4g (without battery)
PRE-TUNED & PRE-SETUP:
- Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
Nazgul5 V2 Quad BNF Included Components and Parts
- Prebuilt and tested Quadcopter
- 1x XL5 V5 Frame

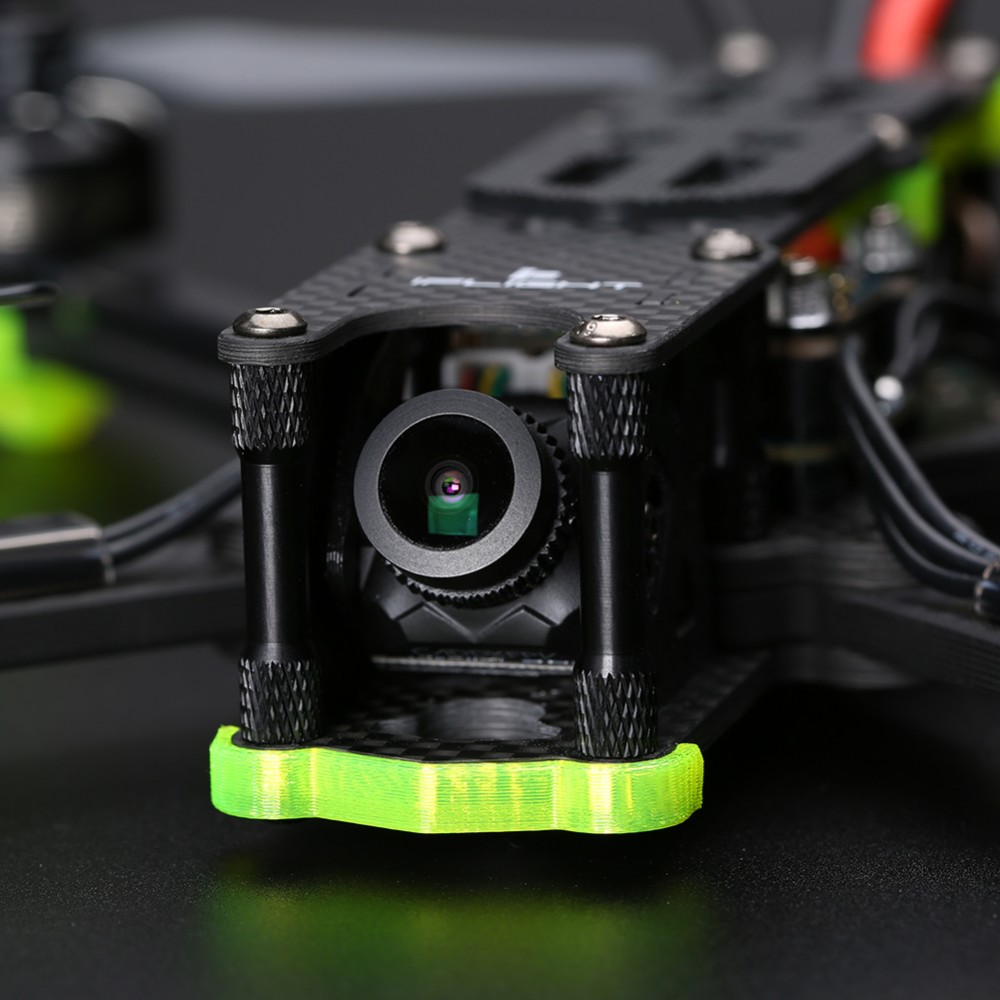

- 1x Caddx Ratel, 2.1mm lens camera
- 1x Albatross RHCP SMA 5.8g antenna
- 2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
- 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
- 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

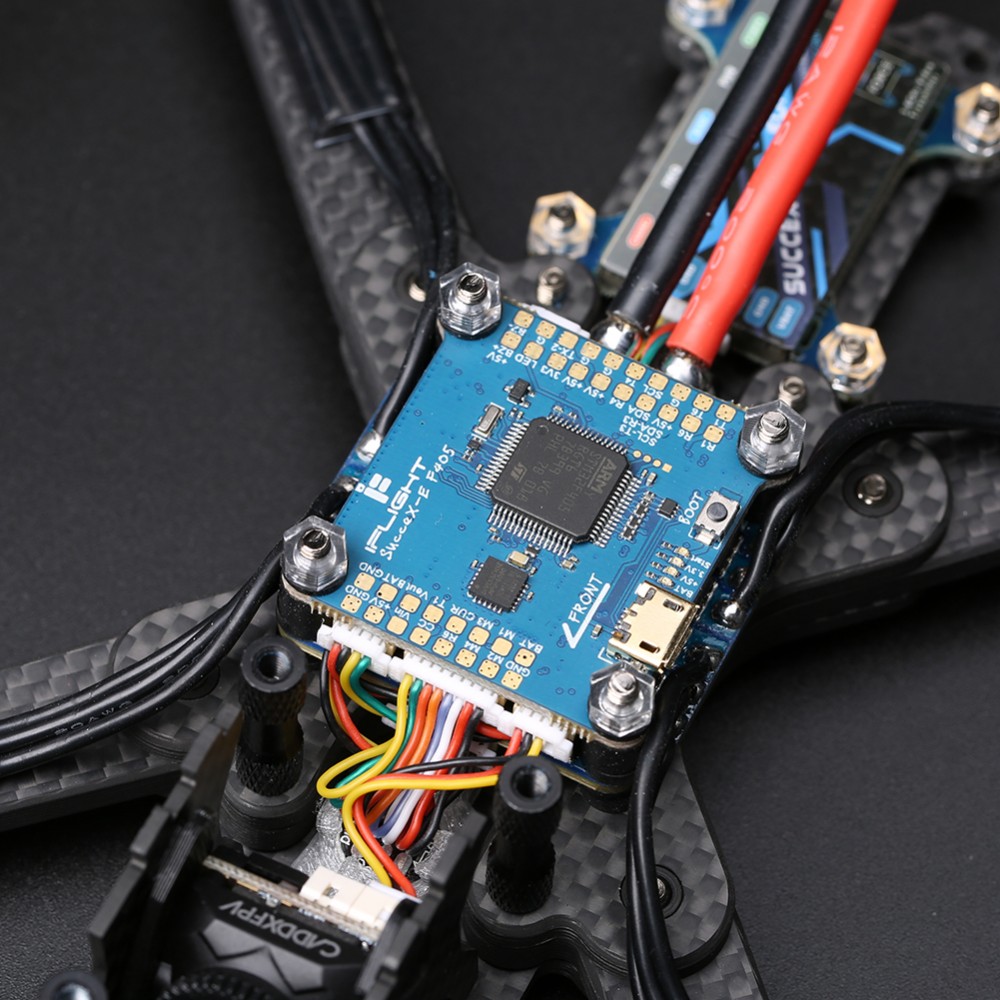

FC // SucceX-E F4 Flight controller
- MCU：STM32F405
- Gyro：MPU6000
- Betaflight OSD：YES
- Blackbox：8MB
- 4X Uarts（1 2 3 6 )
- 8 x Dshot/Proshot/Oneshot output
- 8 x individual ESC power/ signal pads
- 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
- VTX telemetry: YES
- WS2812 led Strip：YES
- Baro：No
- Beeper：YES
- Input：2-6S（Max 8S）
- BEC：5V/2.5A cont
- Firmware target : BETAFLIGHTF4
- Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm
- Dimensions：36*36mm
- Weight：7.6g
ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
- Dimension: 40*43mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight: 14.4g
- Supports 2-6S Lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
- Target: G-H-30 BLS 16.7

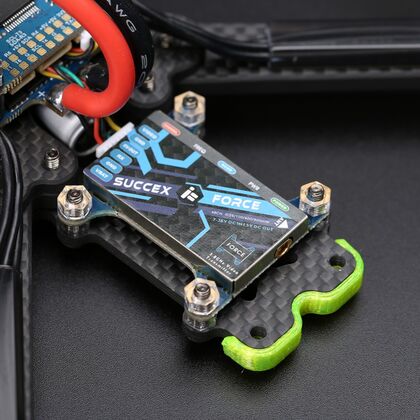

VTX// SucceX Force 5.8g 800mW VTX Adjustable
- The output power is stable;
- Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;
- Output 48 frequency points,
- Frequency lock fast, the boot does not interfere with companions;
- Built-in output power self-check function;
- Full format video format: NTSC /PAL;
- Wide input voltage range. low power consumption:
7V～36V，+12V/380mA@800mW;
- Small size:36*36*3mm
- Mounting holes 4-M3
- Lightweight: 7.2g(excluding antenna)
Specs:
- Item: SucceX-Force 800mW adjustable VTX
- Input voltage:5V
- Output voltage/ Max current: 5V 1A
- 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@400mW, 380mA@800mW
- Output 48 frequency points,
- size:36*36*3mm
- PIT/25mW/200mW/400mW/800mW
Additional Suggested Parts
- Battery 4S 1550mAh
- Battery 6S 1300mAh

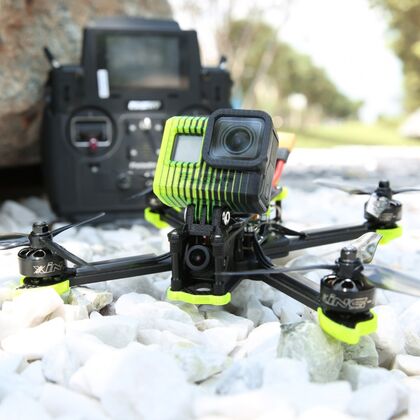

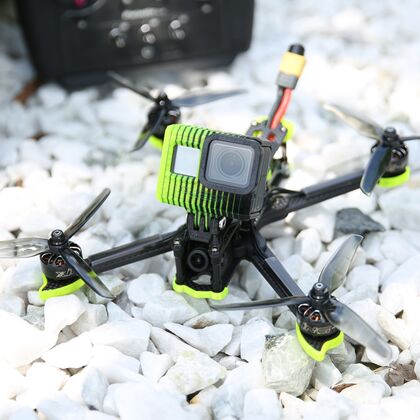

- GoPro Mounts
