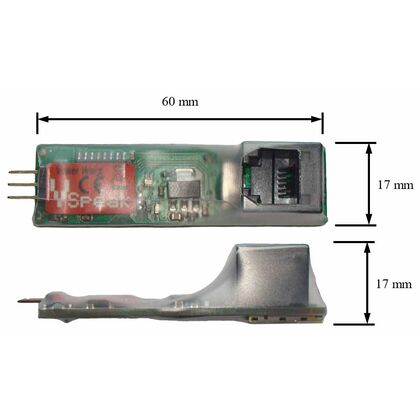

Jetcat ECU Converter for Turbine Telemetry from VSpeak
The VSpeak ECU converter for JetCat ECU is plugged into the ECU or IO board instead of JetCat GSU.
Following ECUs are supported:
Jetcat V6, V10, V12 & Pro Interface
The ECU data can be transmitted by the ECU Converter over the telemetry channel to the radio.
Telemetry and ECU connector of the VSpeak ECU Converter are electrically isolated, to avoid repercussions of the turbine control to the receiver.
The VSpeak ECU Converter is compatible with the following remote control systems:
Jeti Duplex EX
Multiplex MLink (MSB)
PowerBox Core P²-Bus
The respective remote control system (except Spektrum) can be set using the programming adapter and the JetCat GSU. Individual parameters can also be set:
The VSpeak ECU Converter is updatable.
Detailed information about VSpeak ECU Converter JetCat can be found in the detailed Manual:
With the VSpeak ECU Converter for Jeti Duplex and Graupner HoTT not only the data of the terminals can be displayed. With the help of the radio keys all inputs are possible. The handling is similar to the HDT/GSU of the ECU (see YouTube video).
