What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

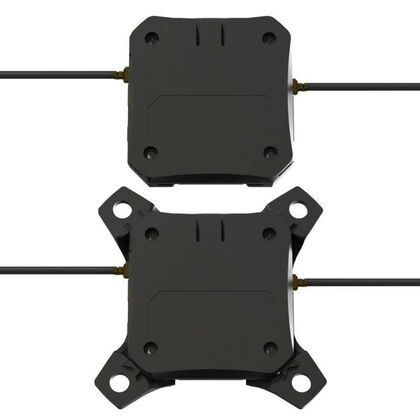

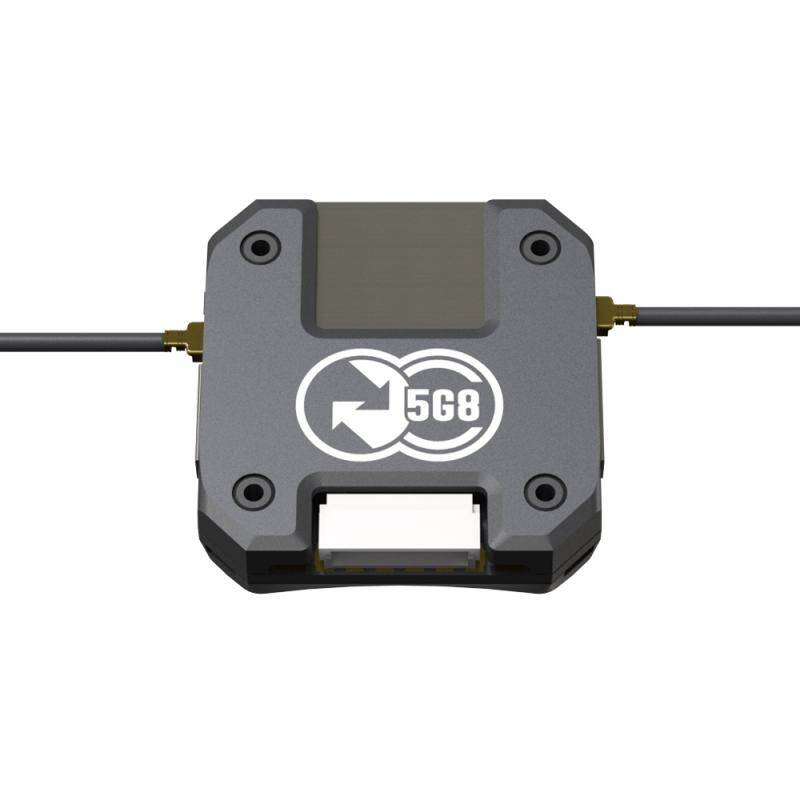

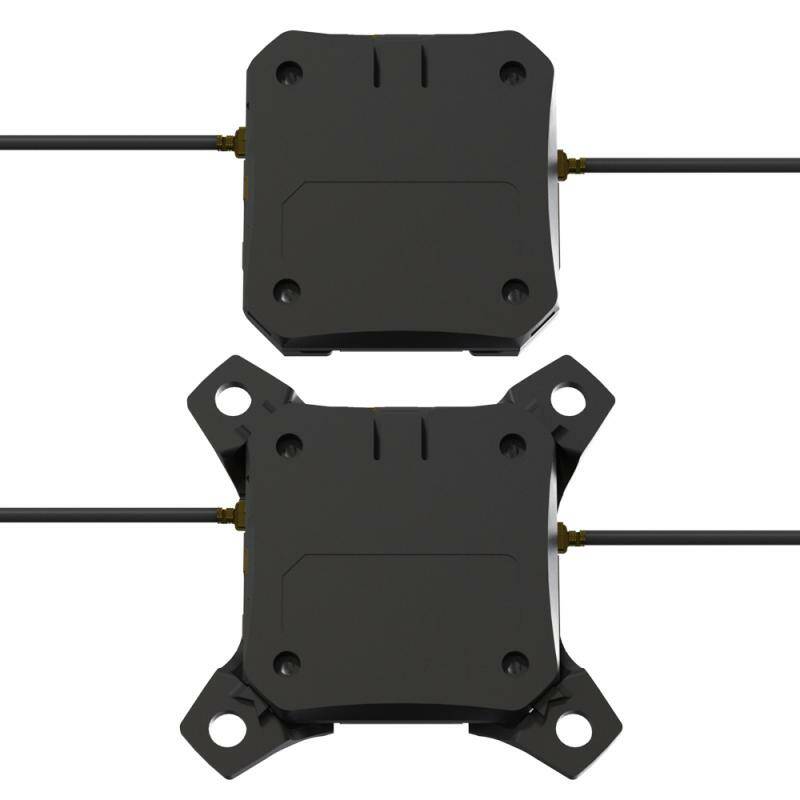

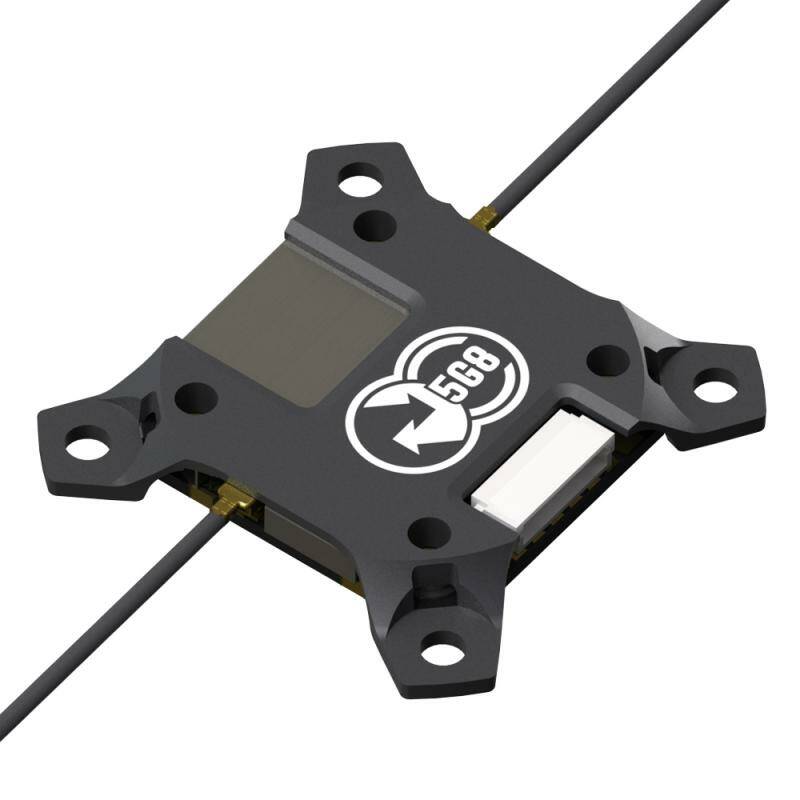

Introducing the TBS Crossfire Sixty9, sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

SPECIFICATIONS
Weight: 4.1g (board only)
Antenna ports: 1x video transmitter, 1x R/C receiver
Size: 24mm x 24mm
Requires: Firmware V4.62 and above
CRSF V3 ready

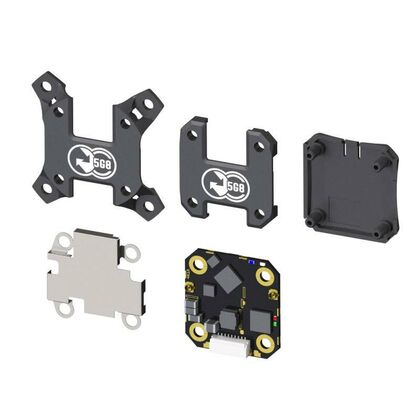

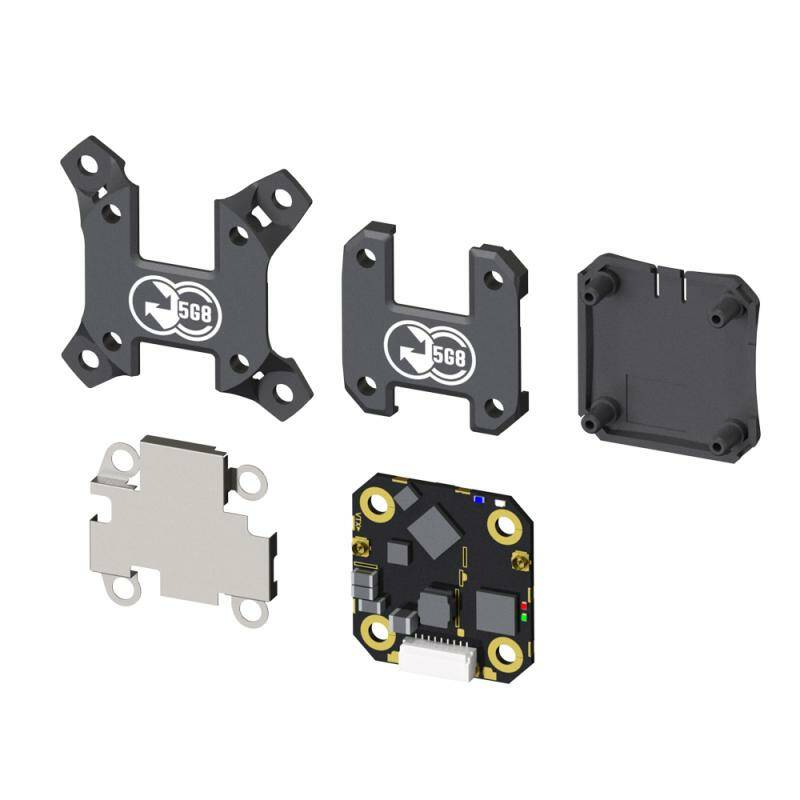

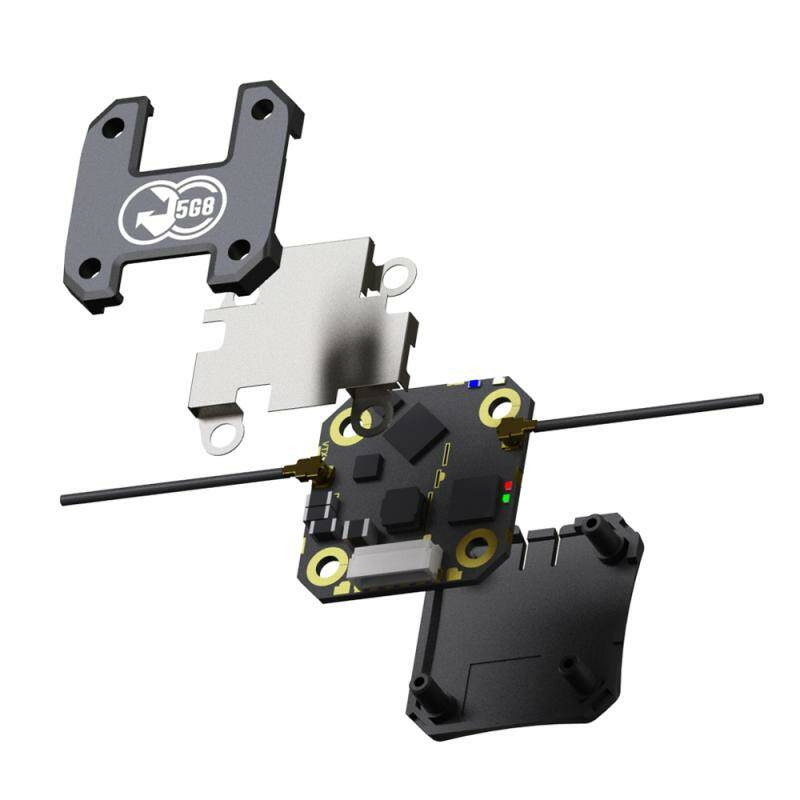

INCLUDES
1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T antenna
1x u.FL to SMA mount (for VTx)
1x 30x30 heatsink / case
1x 20x20 heatsink / case
1x optional tin-shield (for added low-noise tolerance)
1x JST-SH x 9 connector

DOWNLOADS
TBS Crossfire - RED Declaration of Conformity

TBS Crossfire Manual
