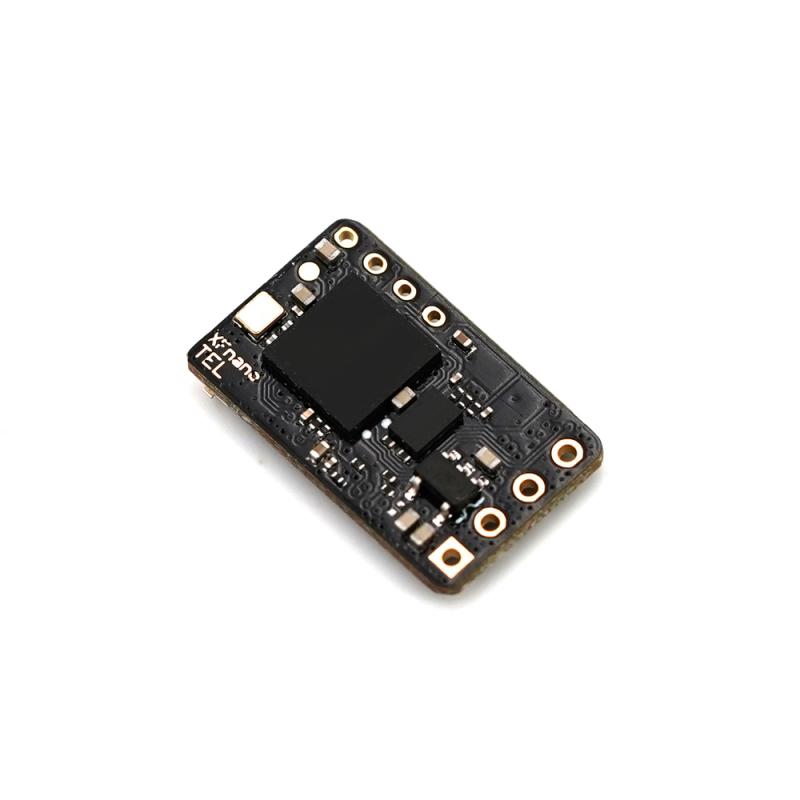

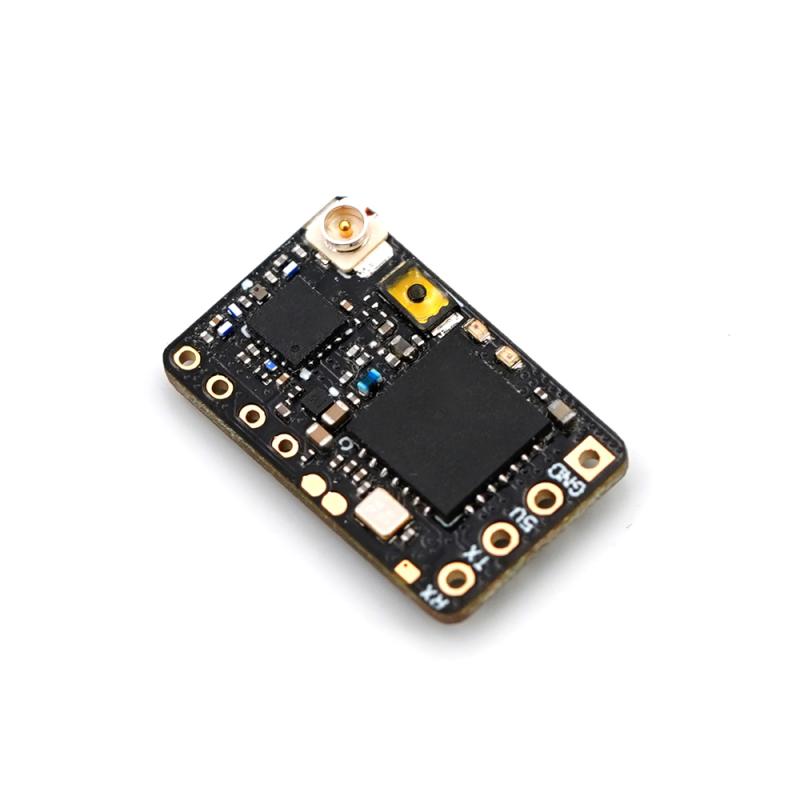

The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power, and will ensure that your 50km flights occur without ever losing telemetry.

SPECIFICATIONS

Weight: 0.5g (receiver only)

Size: 11mm x 18mm

Requires: Firmware V6.14

Input Power: +3.3V to 8.4V

INCLUDES

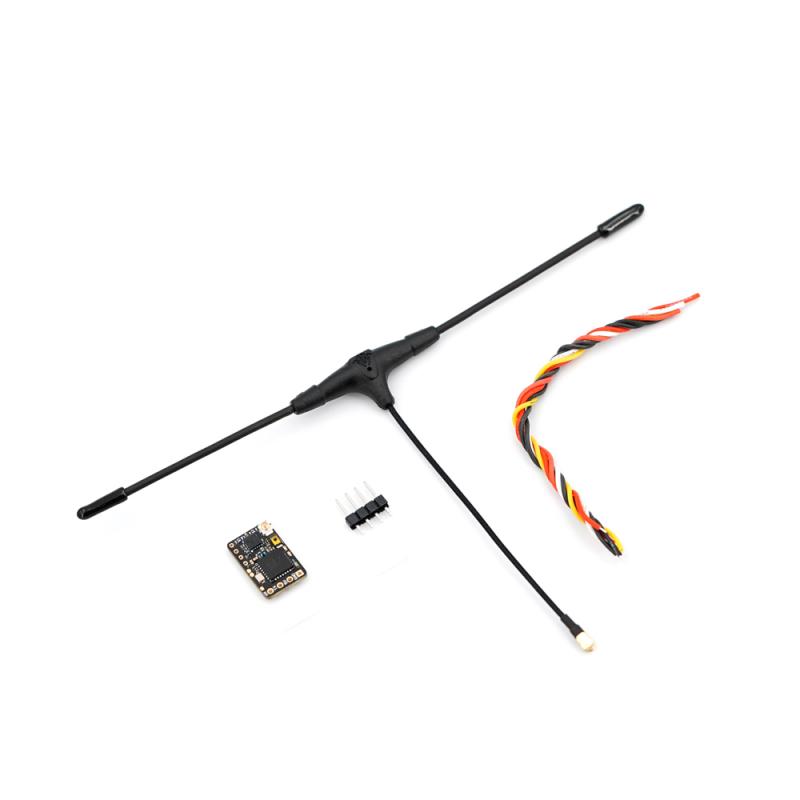

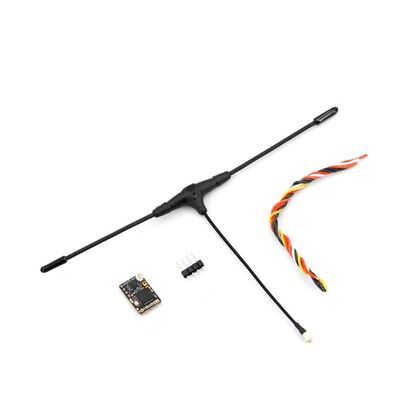

1x TBS Crossfire Nano Receiver Pro

1x TBS Crossfire Immortal T Antenna

1x Spare shrink tube

6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

1 x pin header 1x4

DOWNLOADS

TBS Crossfire - RED Declaration of Conformity

Quickstart Guide / Manual

TBS Crossfire Nano RX - FCC Certification
