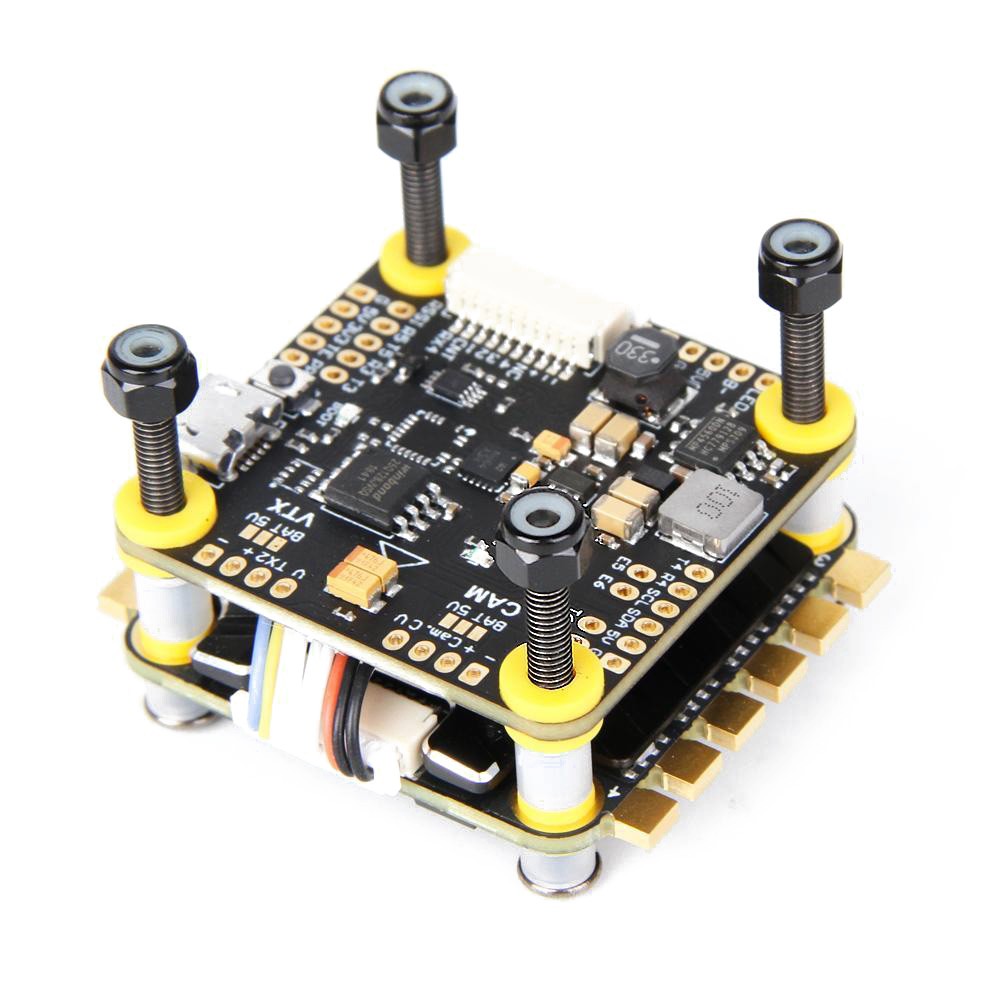

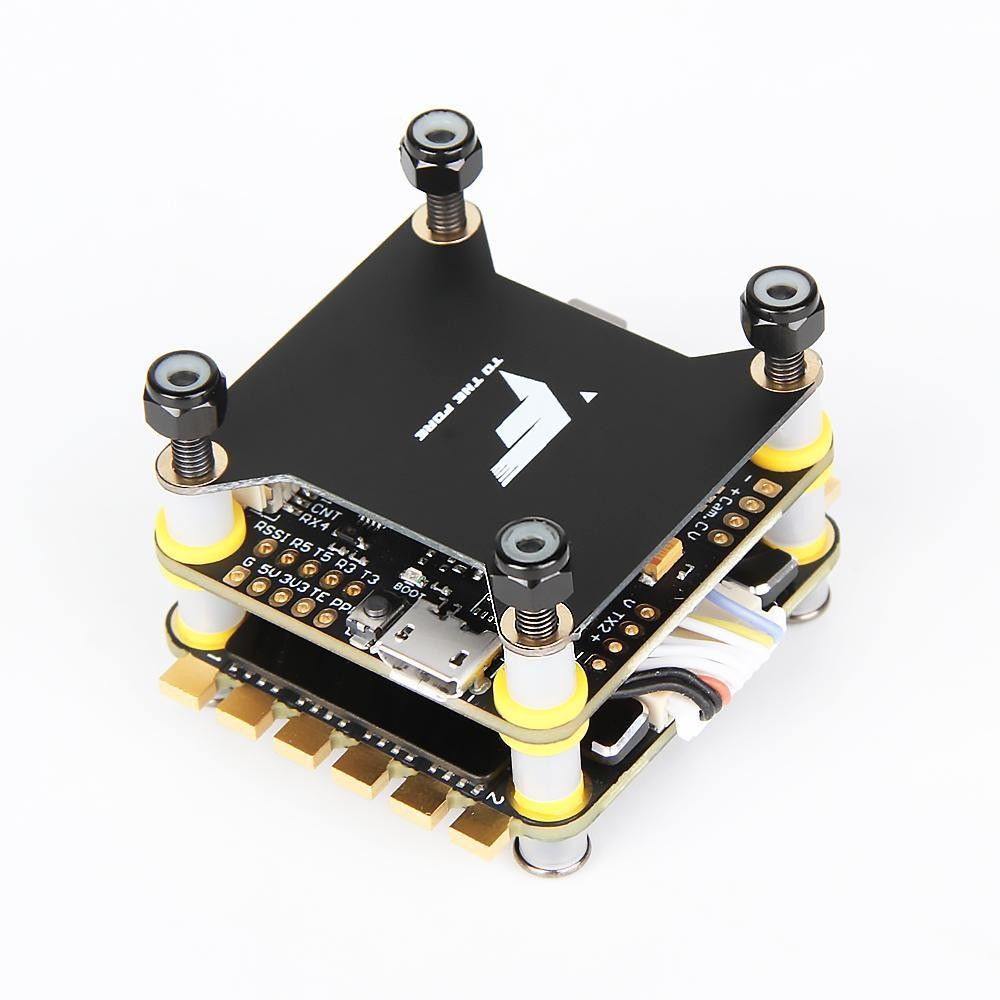

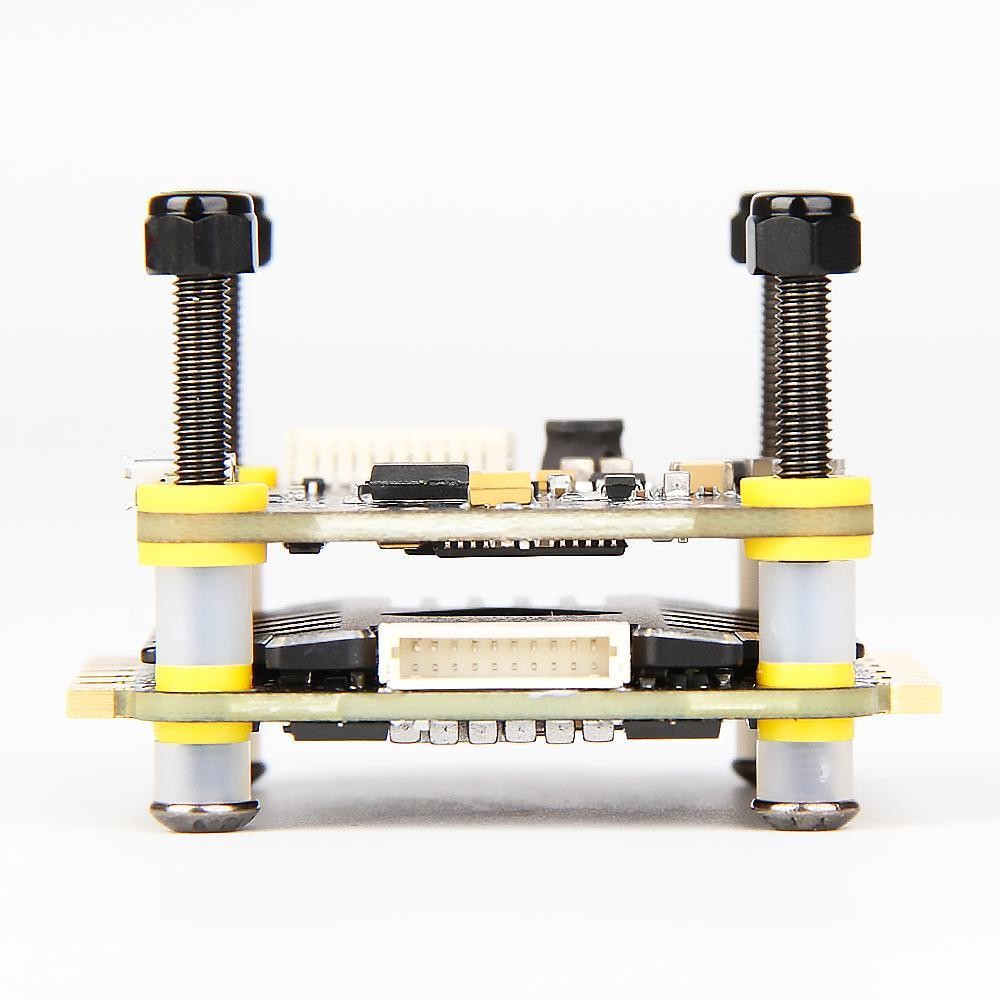

T-Motor's well-designed F4 Flight Controller combined with the F55A PRO II 55A 3-6s BLHeli32 4-in-1 ESC will give you optimized performance - using the included 10pin cable for solderless installation and ultra-low stack height.

Flight Controller

The T-Motor F4 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment. Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F4 is loaded with 6 UARTs and is specially optimized to fit the F55A PRO II ESC. The user also has the choice of two gyros - the ICM20602 for high refresh rates or the MPU6000.

Specifications

• Input Voltage: 2-8S (8.4-33.6V)
• MCU: STM32F405RGT6
• IMU: ICM20602
• OSD: Yes
• Blackbox: 16MB Onboard Flash
• UARTs: 6
• ESC Connections: 6
• Firmware: BetaFlight Target: T-Motor F4
• BEC: 5V 2A
• LC Filter: Yes
• Current Sensor: Esc Telemetry / Current ADC
• Buzzer: Pads
• Barometer: No
• Dimensions: 37x37x7mm
• Mounting Pattern: 30.5x30.5mm
• Weight: 7g

ESC

The F55 Pro II updates the original F55 with a new heatsink design, LED, and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and BLHeli32 firmware.

Specifications

• Continuous current: 4*55A
• BLHeli_32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.5g (Including Heatsink)
• Support DSHOT150/300/600/1200

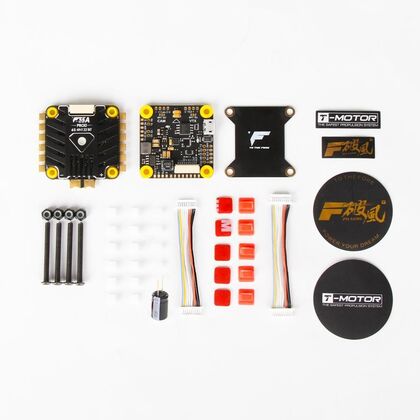

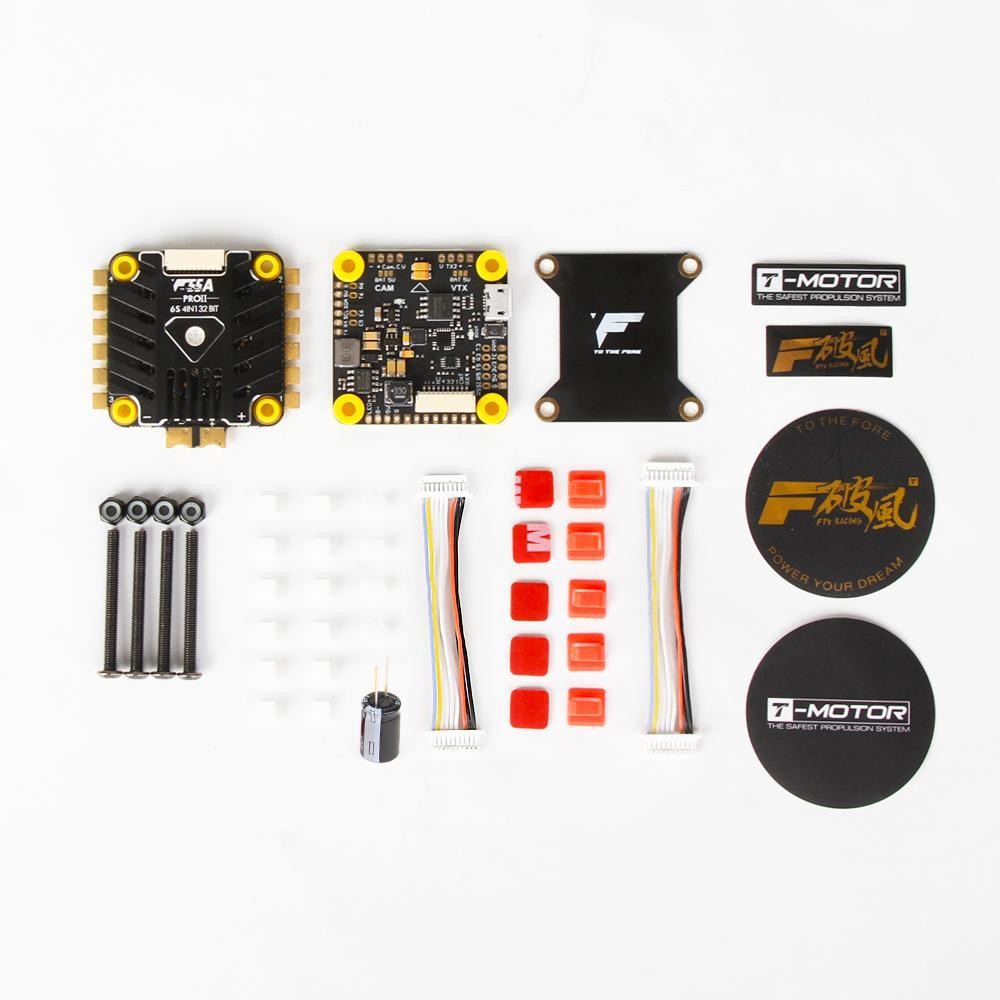

Includes

• 1 x F55A Pro II 4 in 1 Brushless ESC
• 1 x T-Motor F4 Flight Controller
• 1 x XT60 Cable
• 2 x 10pin Cable
• Mounting Hardware
