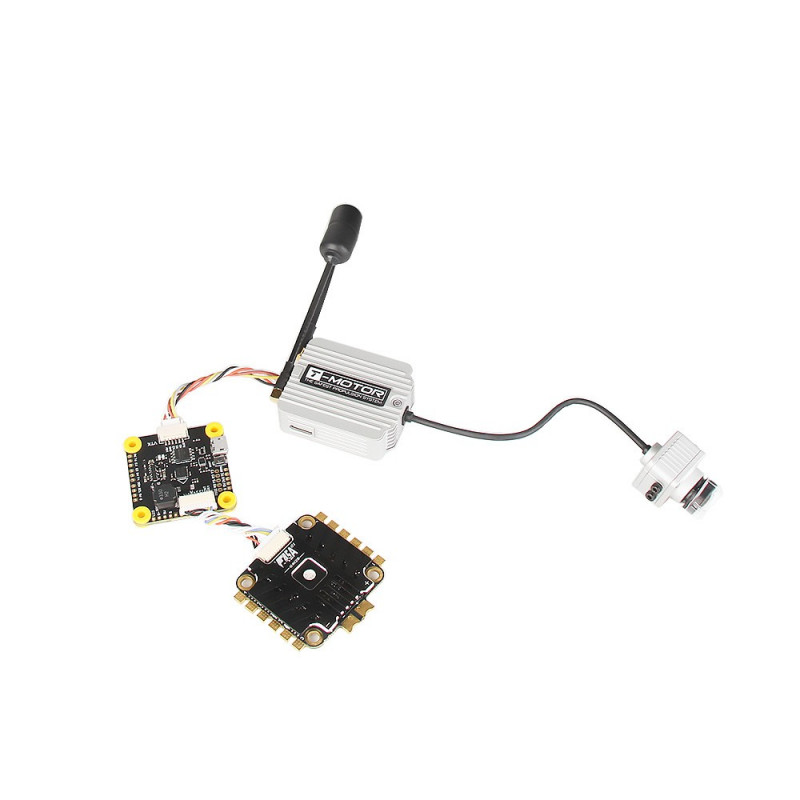

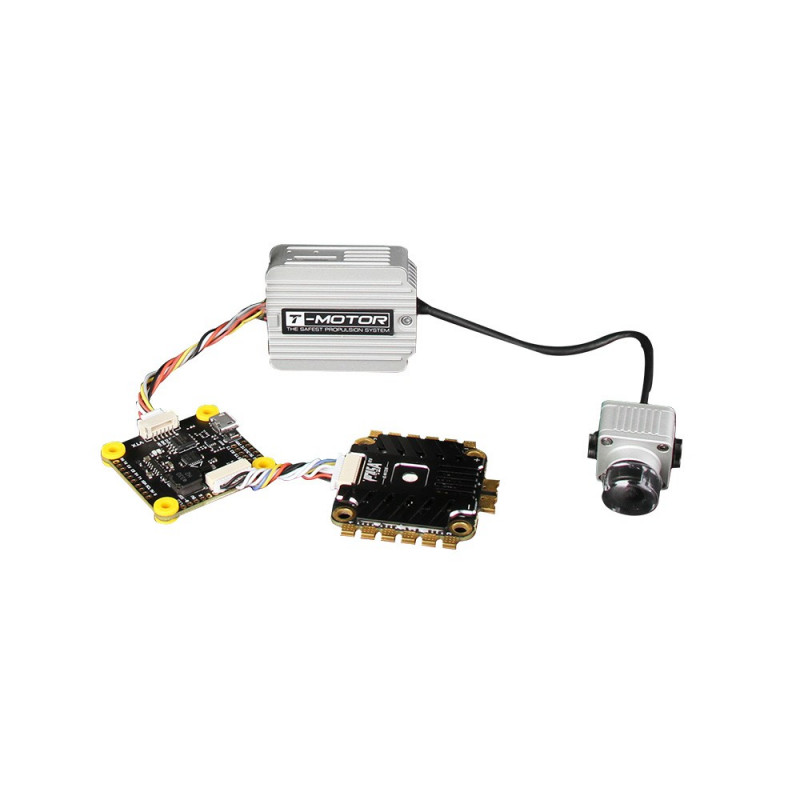

T-MOTOR F4 FC COMBO + F55 PRO II 4IN1 ESC - HD VERSION


120,00
f455dji
Δεν υπάρχει απόθεμα

Περιγραφή

FC Features

  • Input voltage: 3-6S
  • MCU: STM32F405RGT6
  • Gyro: MPU 6000
  • OSD: yes
  • Blackbox: Embedded Flash 16 MB
  • Uarts: 5
  • ESC connections: 6
  • Firmware: BetaFlight target: TMOTOR F4
  • BEC: 5V only for rx! + 10V @ 2A
  • LC filter: yes
  • Current sensor: Esc / current telemetry
  • Buzzer: Pads
  • Barometer: No
  • Dimensions: 37x37x7mm
  • Reason for mounting: 30.5x30.5mm
  • Weight: 8.4g

ESC features

  • DC current: 4 * 55A
  • Burst: 4 * 75A
  • BEC output: 10V @ 2.0A
  • Size: 45x41x7.3mm
  • Weight: 17.3 g (including the radiator)
  • Support DSHOT150 / 300/600

Included

  • 1x T-Motor F4 FC
  • 1x cable set
  • 1x set of soft mount
  • 1 x brushless ESC F55A Pro II 4IN1
  • 4 x damping rubbers
  • 1 x 12AWG-130MM with XT60 Welded Input Cables
  • 2 x AWG signal cable type-100mm
  • 1 x capacitor
