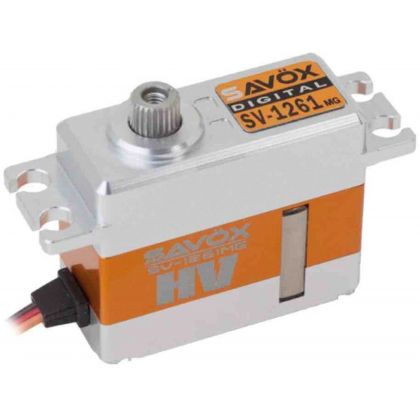

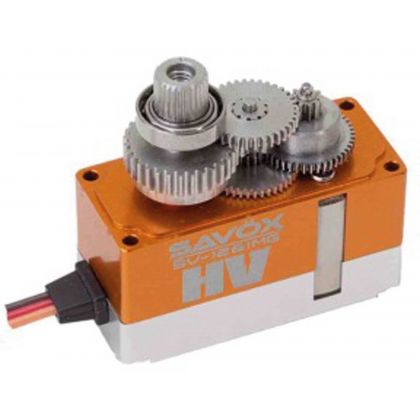

With the SV-1261MG, Savox is launching an even more powerful version of the already proven SV-1260MG. The SV-1261MG delivers an impressive 20 kg of torque at 7.4V. This makes it more suitable than ever for all applications requiring power, precision, speed, and backlash-free operation. The all-metal servo with all-metal gears has a speed of 0.095 seconds per 60 degrees at 7.4V. Thanks to its standard-size 25-tooth output shaft, all common servo arms of any size can be used. In the 15 mm midi servo class, the SV-1261MG is a superlative servo and effortlessly replaces standard-size servos while being significantly smaller. This is made possible by the powerful coreless motor, which is normally only found in 20 mm class servos. The weight, including the cable, is exactly 40 grams. The servo has a soft start, meaning it moves slowly into the controlled position when switched on, thus protecting the linkage.

Technical data

Classification: Midi
Transit time S1/60° (sec): 0.095
Torque S1 (kg*cm): 20
Voltage 1 (Volt): 7.4

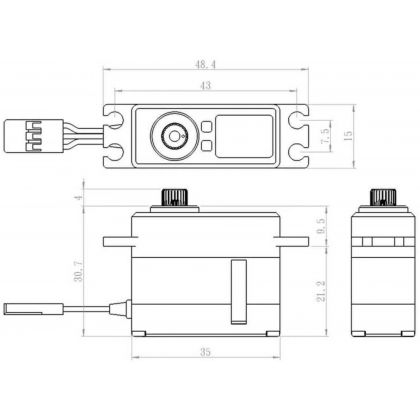

Height (mm): 30.7
Width (mm): 15
Length (mm): 35
Weight (g): 40
High-voltage capable: Yes
Output teeth (number): 25
Application: Aircraft
Application: Helicopter
Housing type: All-metal
Ball bearings (number): 2
Motor type: Coreless motor
Gearbox type: Metal
Packaging: Standard
