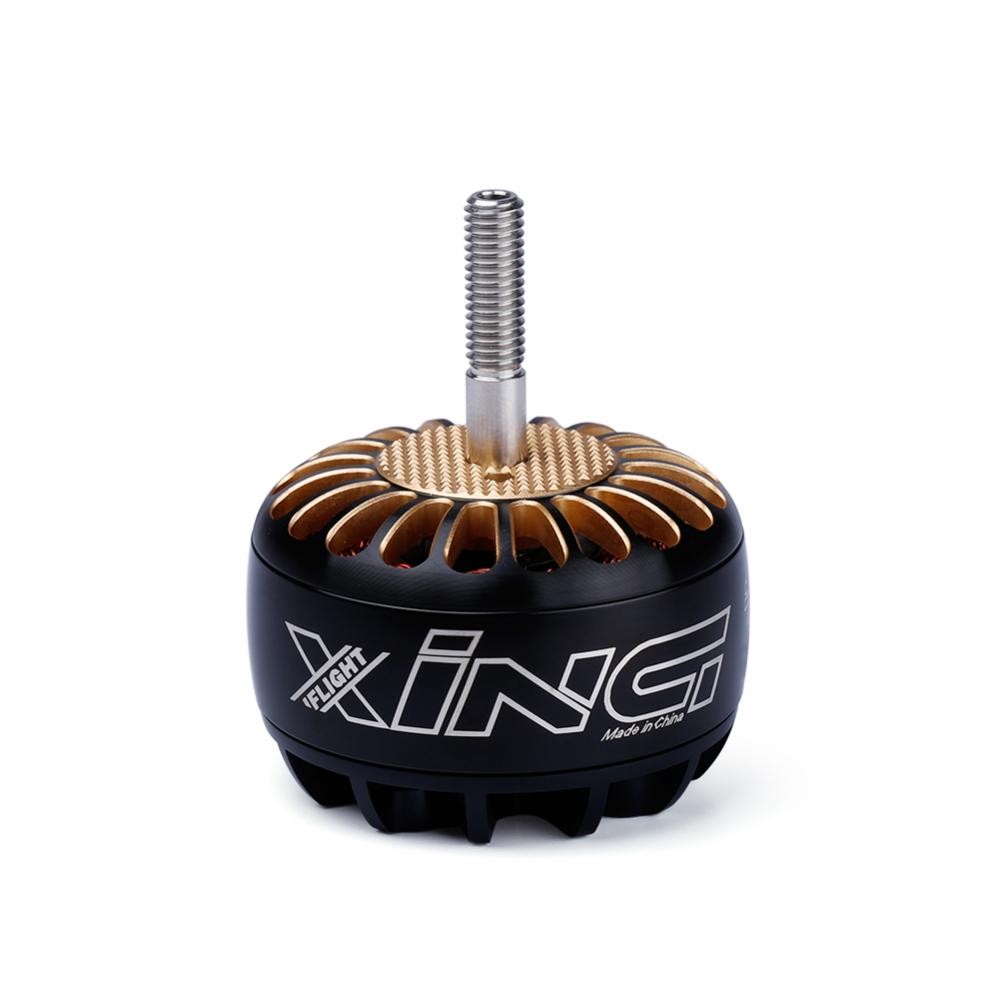

The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!

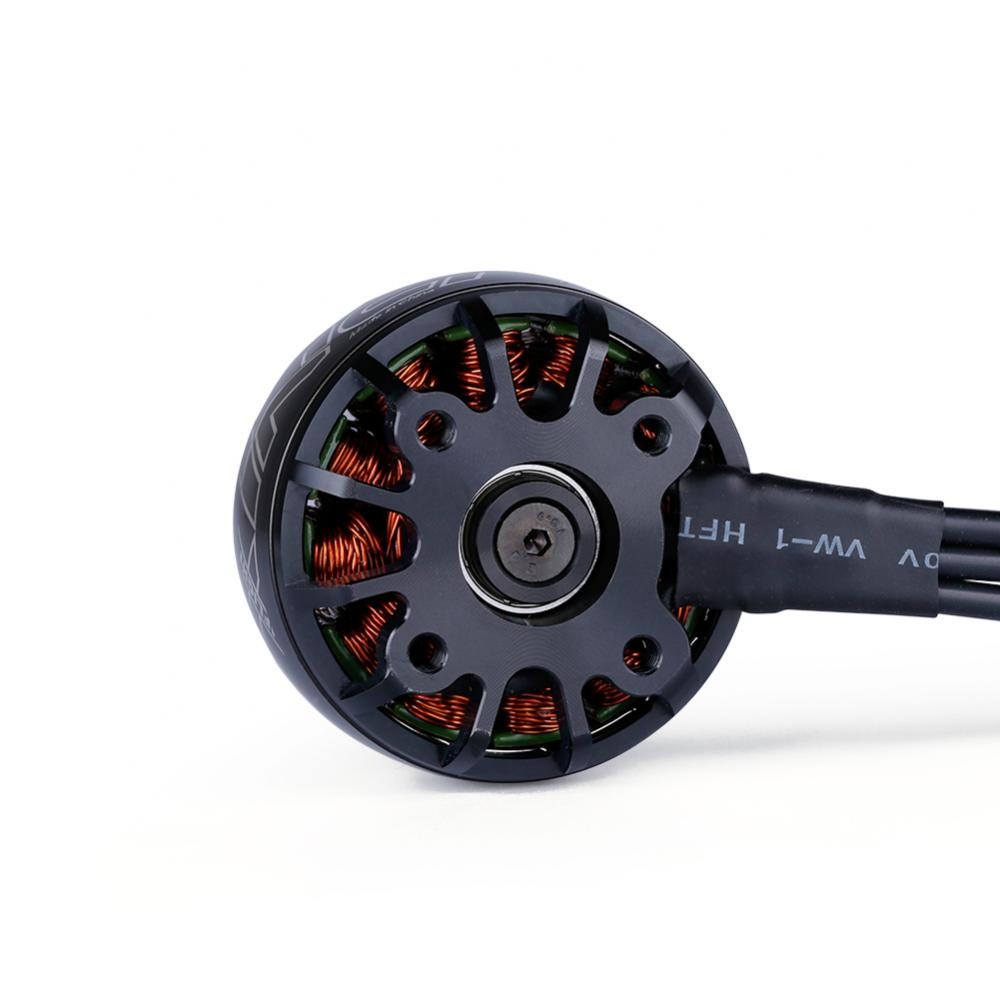

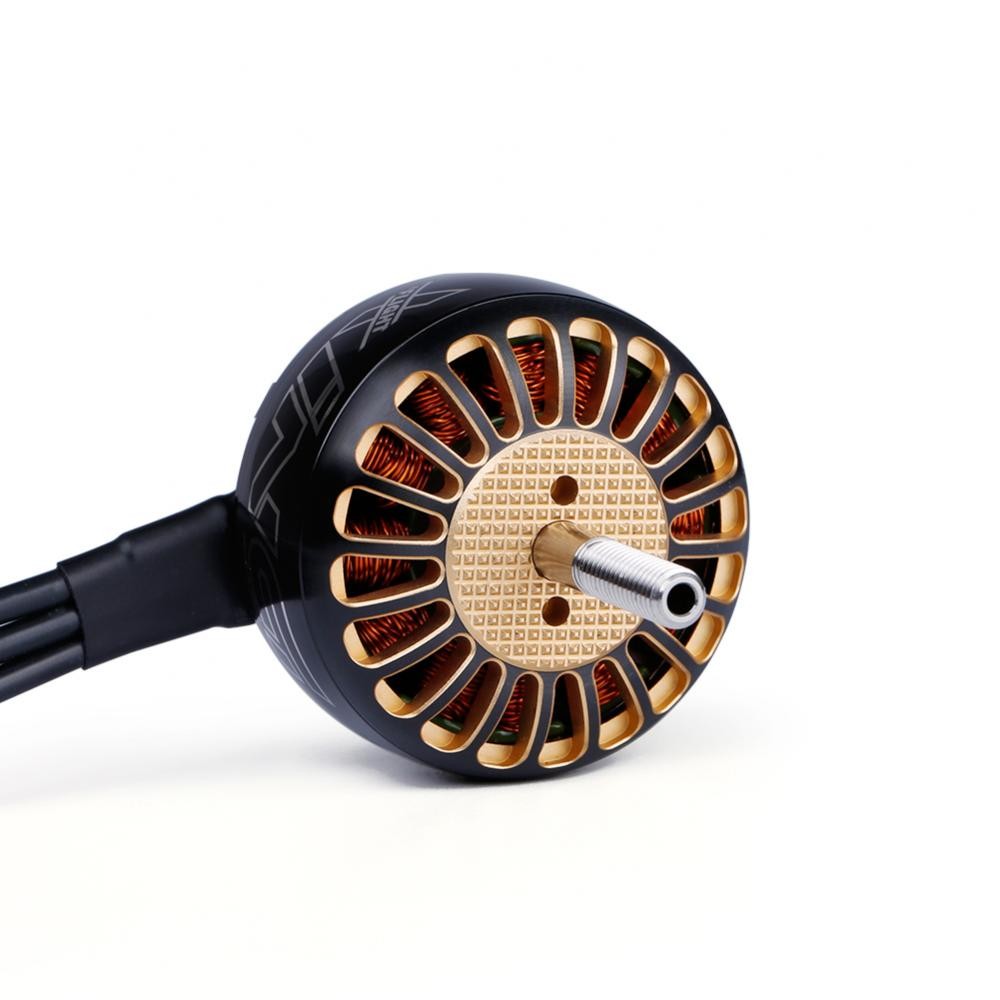

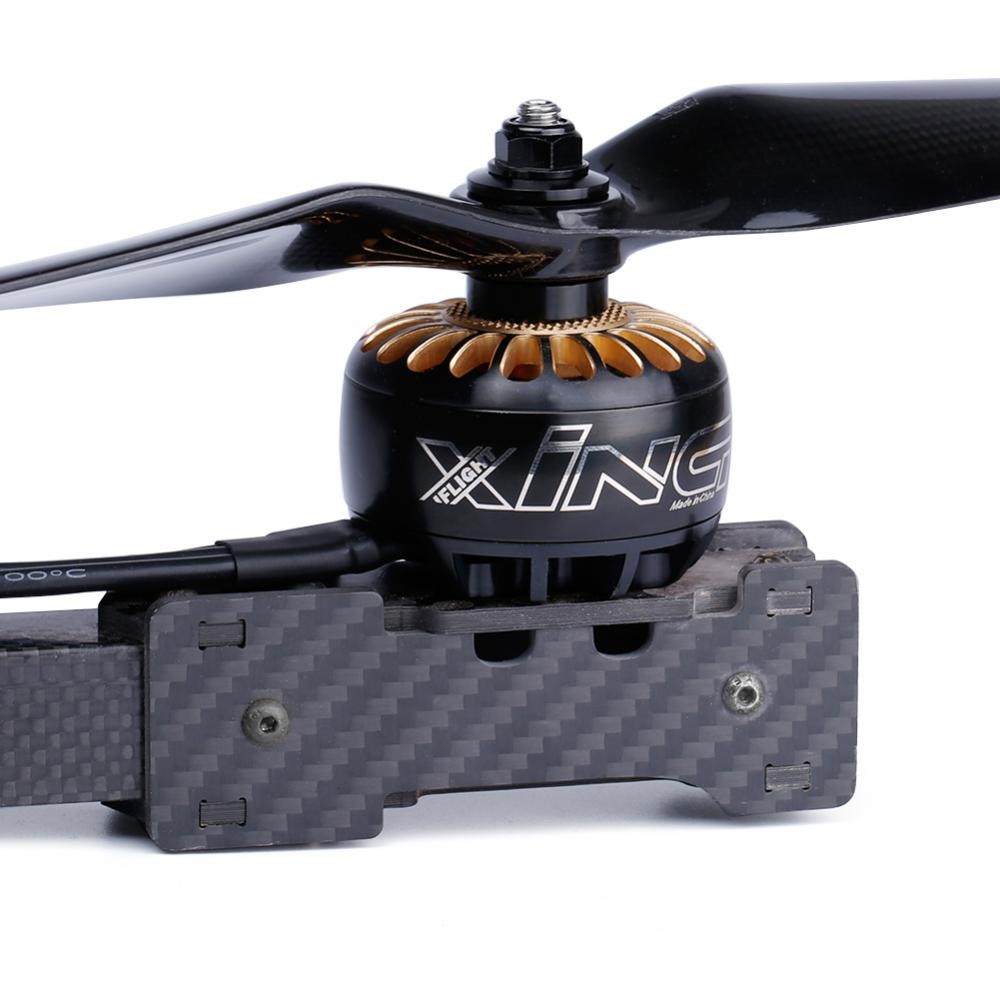

Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) Φ6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on 4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the backplate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.

All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!

Features

• Specially designed for X-Class Racing
• Oxidation-Color 7075 T6 milled aluminum Bell and Base
• 420 stainless steel
• Japanese Kawasaki 1200 Iron Core
• Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding
• Long-life Japanese EZO bearings
• N45SH High-temperature tegular magnets, small air gap
• Electromagnetically matched magnets and stator
• Optimized heat dissipation structure design, 20% heat reduced
• Max 7.9kg thrust of 660kv
• 50%-90% thrust max efficiency and thrust
• Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
• Hex bolt shaft set screw for easy maintenance
• Dynamically balanced
• Motor wire protected

Specifications

• Name: iFlight XING 4214
• KV: 400KV/660KV
• Structure: 12N14P
• Stator Diameter: 42mm
• Stator length: 14mm
• Outer Shaft length and diameter: 26.5mm M6
• Motor size: φ50*33mm
• Magnet: N45SH
• Bearing: EZO
• Cable: 14AWG,800mm
• Weight: 270.1g w/ cables

Includes

• 1 x iFlight XING X4214 Motor
• 1 x Hardware Set
