The iFlight XING series motors were designed and named by pilot and FPV specialist, Patrick Xing.
By combining IFlight's high-quality motor production technology with the technical expertise of Patrick Xing, a high-end motor was manufactured.
iFlight XING provides the most incredible power and thrust at low weight.
The elliptical body, the powerful stator with N52H magnets and a very small air gap make the iFlight XING series an incredible motor .
iFlight continues the tradition of manufacturing the best and most suitable products to offer different sizes and KV values to meet different pilot needs.
The 4mm titanium alloy shaft and high quality N52H magnets surrounded by high temperature resistant windings.
This means that the iFlight XING series motor can be taken to extremes.
Thanks to its sturdy structure and high-quality materials, the iFlight XING motor behaves like a beast.
The contact surface of the iFlight XING motor and propellers is non-slip to increase friction and improve durability.
The design of the bell helps to evacuate heat continuously.
The standard M3 16mm * 16mm mounting center distance, adapts to all chasis on the market;
The 150mm motor cable length can meet different requirements, whether it is connecting a single ESC or a 4in1.
Each motor has been dynamically balanced and all have successfully passed the most stringent iFlight manufacturing and assembly procedures.
5mm titanium alloy shaft
7075 aluminum bell
Durable NSK 9x9x4 bearing
Motor wire protection
Power supply: 6S
Configuration: 12? 14P
Stator Diameter: 22mm
Stator Length: 7mm
Cables: 20AWG 160mm
Fitment: 16 * 16mm

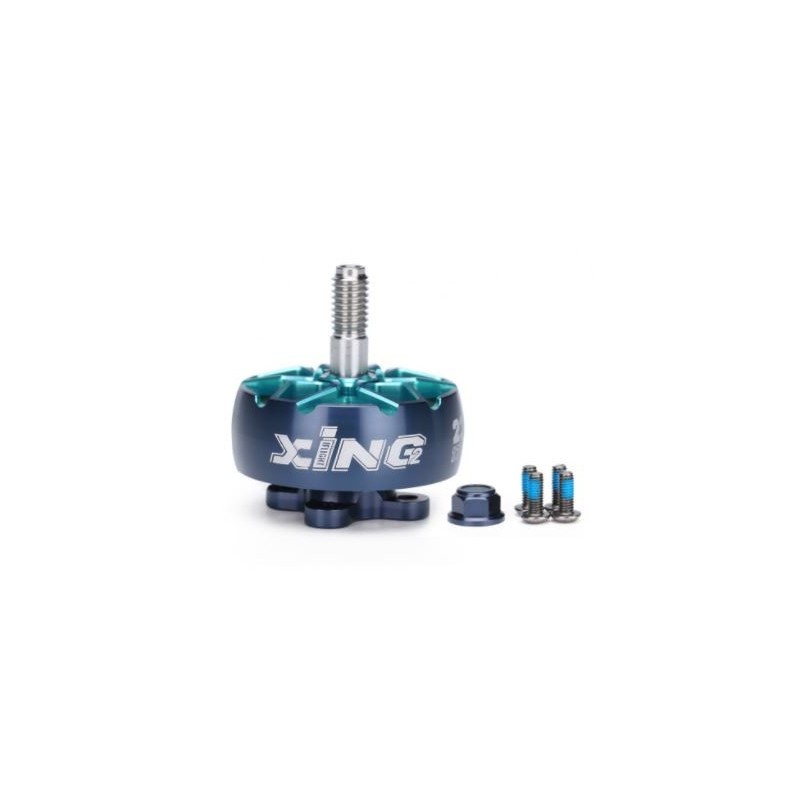

1x Xing2 2207 - 1855 Kv
4x M3 * 6 Screw
1x M5 Nylon Lock Nut
