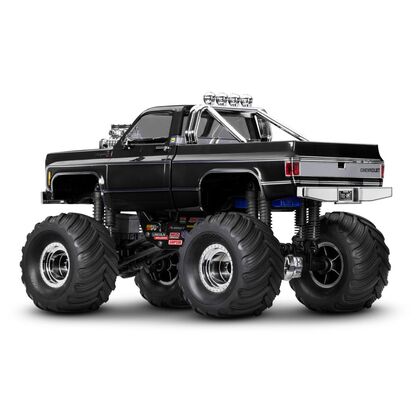

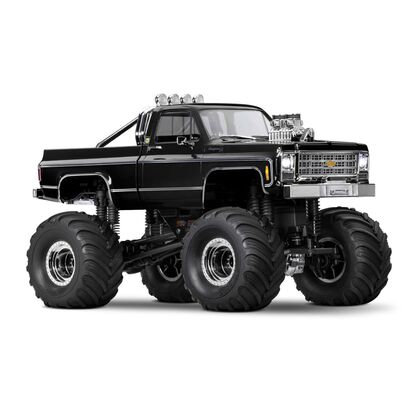

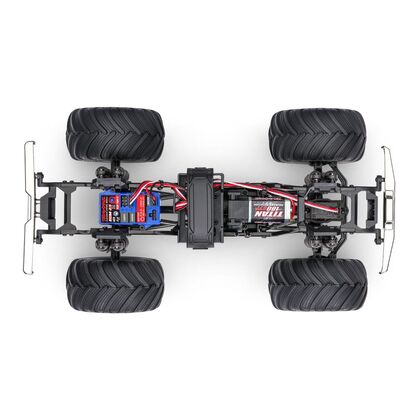

MODEL 98064-1: TRX-4MT® with Chevrolet® K10 pickup body: 1/18 scale 4X4 monster truck, fully-assembled, Ready-To-Drive®, with TQ™ 2.4 GHz 2-channel transmitter, and ECM-2.5 waterproof electronics.
What’s In The Box:
- TRX-4MT Monster Truck
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What You’ll Need:
- AA Alkaline BatteriesFour AA alkaline batteries for the transmitter
MODEL SPECS
| Model Name:
|
TRX-4MT Chevrolet C10 Monster Truck
|
| Model Type:
|
Monster Truck
|
| Model Skill Level:
|
1
|
| Scale:
|
1/18
|
| Weight:
|
1.27 pounds (577 g)
|
| Length:
|
10.6 inches (276 mm)
|
| Width:
|
6.5 inches (166 mm)
|
| Front Track:
|
6.5 inches (166 mm)
|
| Rear Track:
|
6.5 inches (166 mm)
|
| Height:
|
6.7 inches (170 mm)
|
| Wheelbase:
|
6.45 inches (164 mm)
|
| Center Ground Clearance:
|
2.16 inches (55 mm)
|
| Battery Type:
|
Lithium polymer (LiPo)
|
| Drivetrain:
|
Shaft-driven 4WD
|
| Transmission:
|
Single speed direct drive
|
| Differential Type:
|
Locked spool
|
| Gear Ratio (Internal):
|
11.38
|
| Gear Pitch:
|
64 pitch
|
| Servo(s):
|
2065R
|
| Battery Compartment Specs:
|
51 mm X 31 mm X
|
MOTOR SPECS
| Motor Name:
|
Titan 180
|
| Motor Type:
|
87-turn brushed motor
|
| Motor Weight:
|
1.16 ounces (33 g)
|
| Motor Length:
|
1.66 inches (42 mm)
|
| Motor Diameter:
|
.81 inches (21 mm)
|
ESC SPECS
| ESC Name:
|
ECM 2.5™
|
| ESC Type:
|
Brushed
|
| ESC Case Size:
|
1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
|
| ESC Weight:
|
.92 ounces ( 26 g)
|
