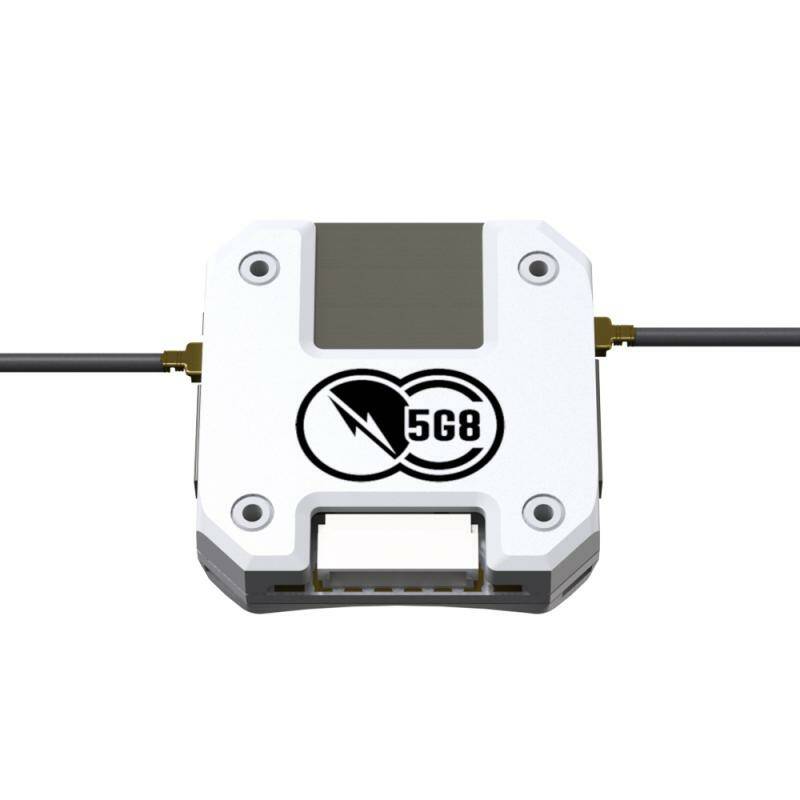

TBS Tracer SIXTY9 - RX with VTX


59,00
69TRACER
Σε Απόθεμα
+
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

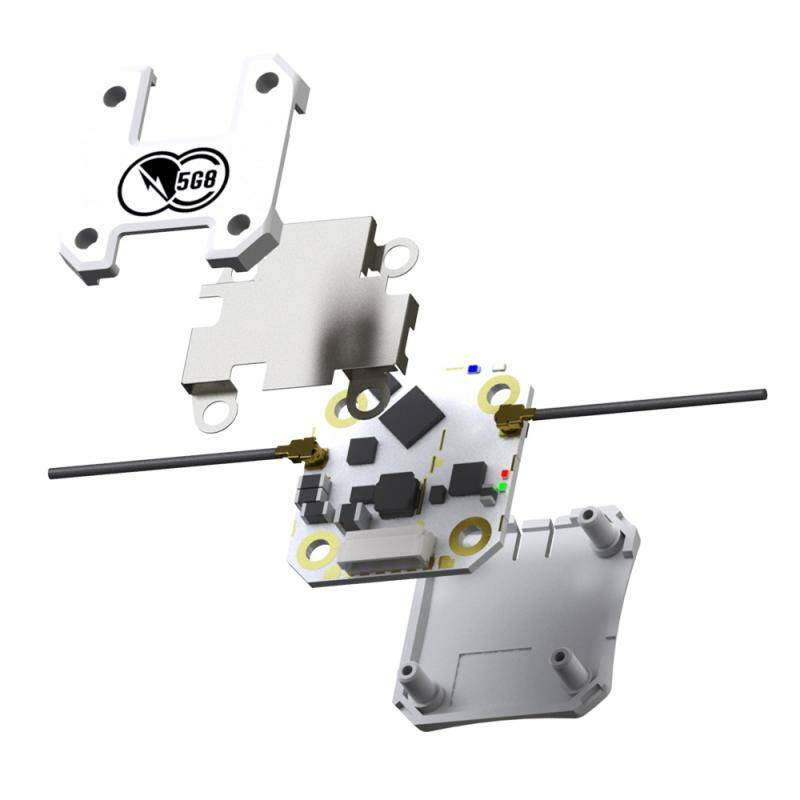

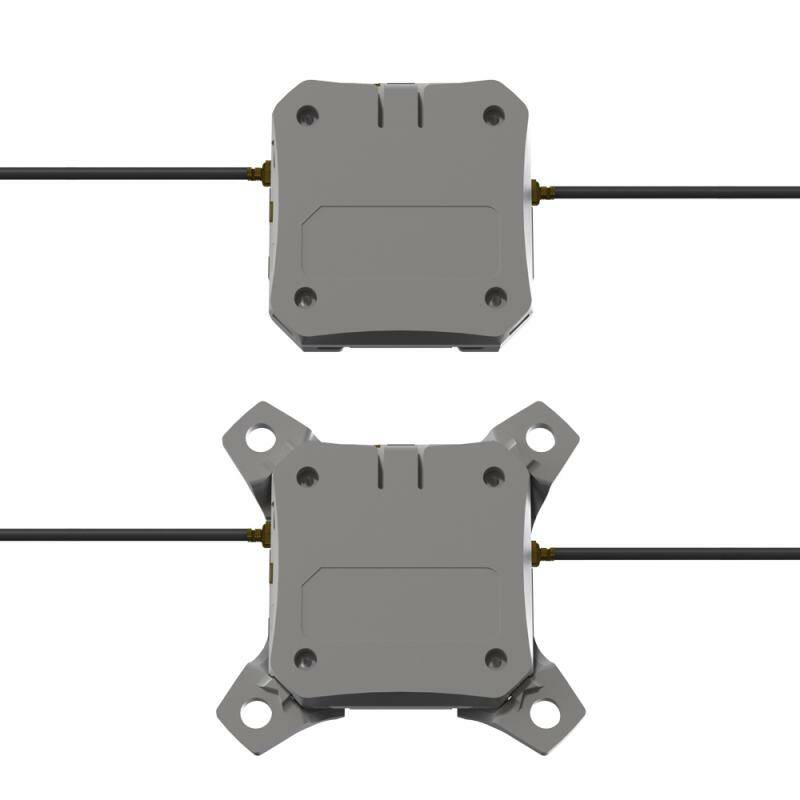

Introducing the TBS Tracer Sixty9, sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame - without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

SPECIFICATIONS
Weight: 4.1g (board only)
Antenna ports: 1x video transmitter, 1x R/C receiver
Size: 24mm x 24mm
Requires: Firmware V5.62 and above
CRSF V3 ready

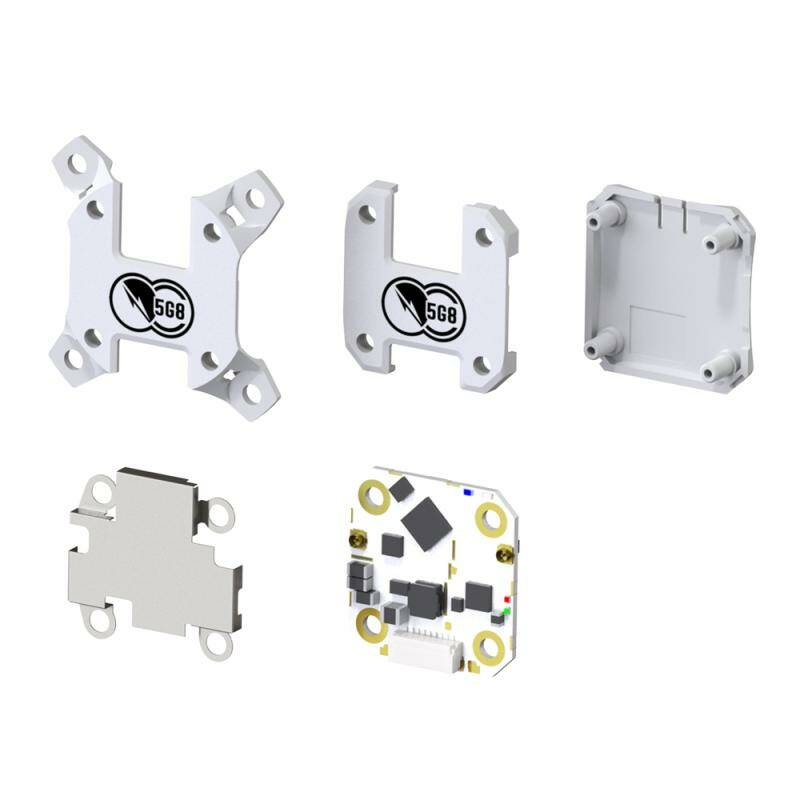

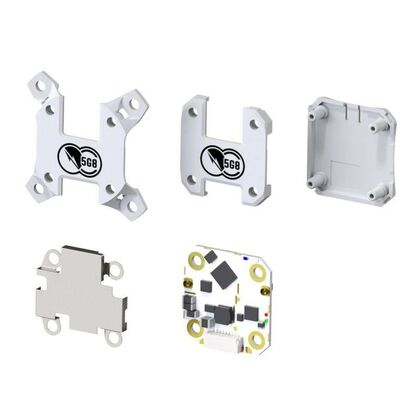

INCLUDES
1x TBS Tracer Sixty9
1x TBS Tracer Immortal-T antenna
1x u.FL to SMA mount (for VTx)
1x 30x30 heatsink / case
1x 20x20 heatsink / case
1x optional tin-shield (for added low-noise tolerance)
1x JST-SH x 9 connector


DOWNLOADS
TBS Tracer - RED Declaration of Conformity

TBS Tracer Manual
