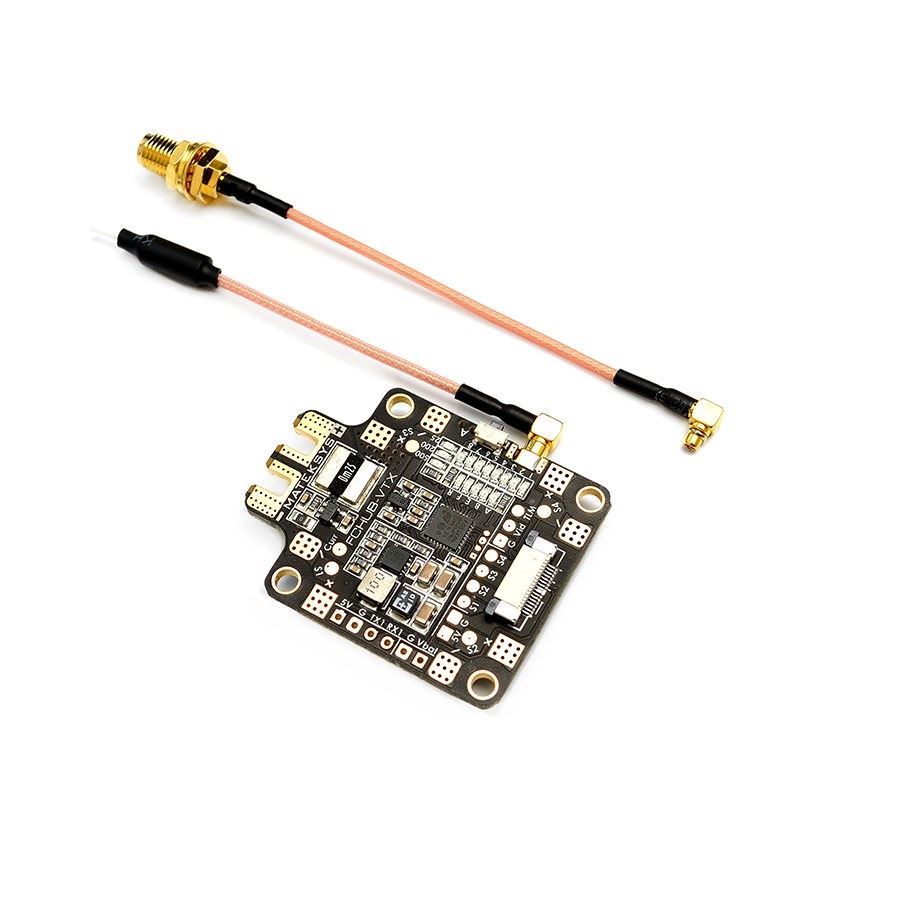

The FCHUB features an integrated VTX with Betaflight Control, 184A current sensor and 5V & 10V filtered DC voltage output.

This PDB is designed to work with the new Matek F405 Flight controller.

Features:

- 40CH & 25/200/500mw switchable VTX
- Traditional button+LED control
- BFCMS control via FC Uart_TX
- Ribbon cable connection with FC F405-OSD

Specifications:

- Input: 6-27V (2~6s)
- PDB: 4x30A (Max 4x46A)
- BEC 5V 1A (For Camera or FC)
- Current Sensor 184A
- Current Scale (1/10th mV/A): 179
- 36x45x7mm 14 (w/ MMCX Whip Antenna)
- Mounting holes: 30.5mm square spacing (Naze32, CC3D, etc.)

Included:

- Matek FCHUB-VTX PDB
- Rubycon ZLH 35V/470uF Low ESR capacitor
- Linear Antenna
- MMCX to SMA Female Adaptor

- Nylon mounting fixtures
