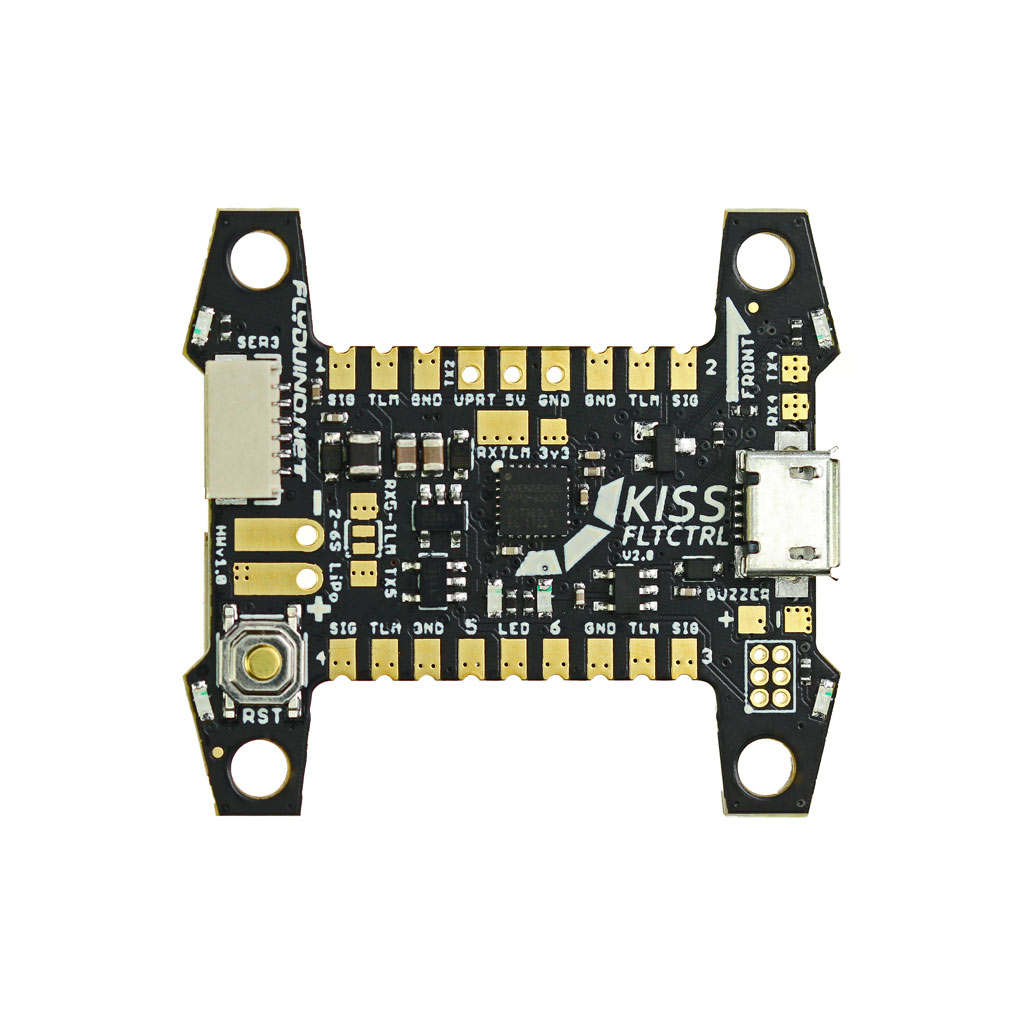

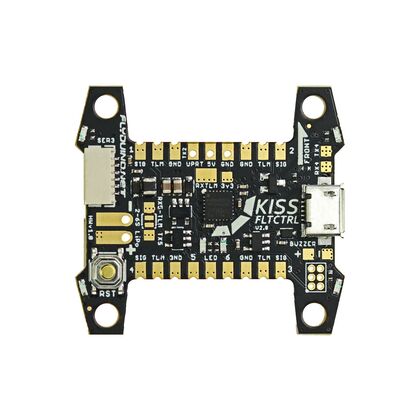

KISS FCv2 - 32bit Flight Controller


59,00
kissv2
Δεν υπάρχει απόθεμα

Περιγραφή

KISS FC - 32bit Flight Controller

V2

Flyduino CMS- Sample image floating




A new simplified Flight controller, the KISS FC V2 includes a complete own Flight Control Firmware development.

The Idea was to get the simple KISS FC to the next level and due to intensive long term tests of some pretty good Pilots we were able to optimize the code to a point where you hopefully get your quad in the air quite quick.

Normally you just need to choose your Airframe in the GUI and you are able to fly (at least with KISS ESC), otherwise you can download presets of well known pilots for given configurations.

And of course you can tweak the PID yourself through the GUI.








ARM-Cortex M7 MCU

with FPU @ 216Mhz

for even the most complex algorithms.
up to 12 times faster now.

Powered directly by the battery

(2-6S) max. 500mA @ 5V

avoids unnecessary weight.

Onboard USB

CP2102 USB-UART

USB controller for easy updates of FC and ESC directly via GUI.



Bidirectional communication

ultrafast Dshot 2400, sinHybrid and full Kiss Telemetry support.

Serial Monster

5 for all use cases.
