Smallest, Lightest in the Business

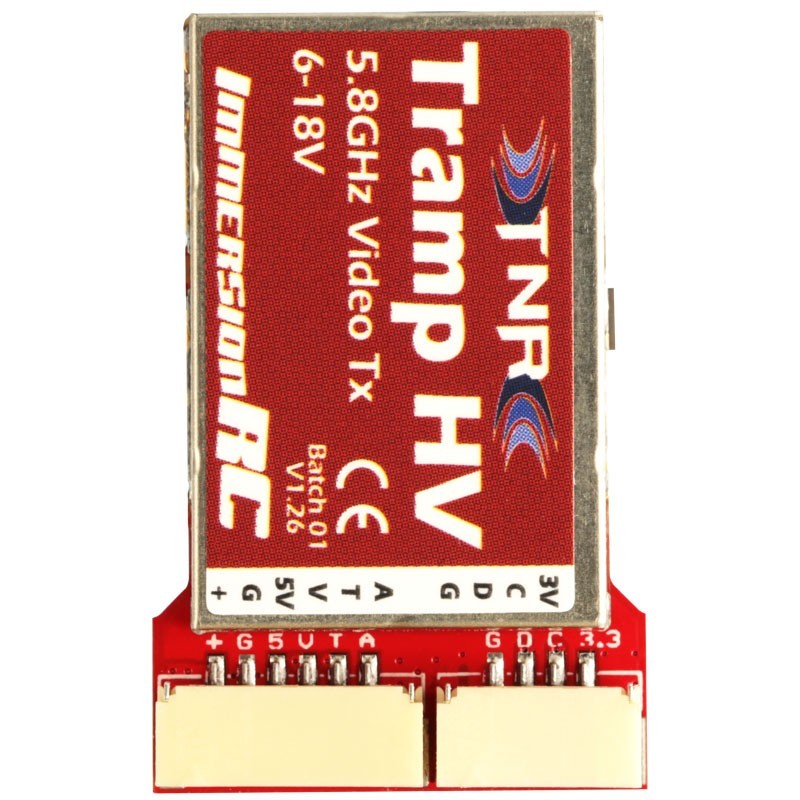

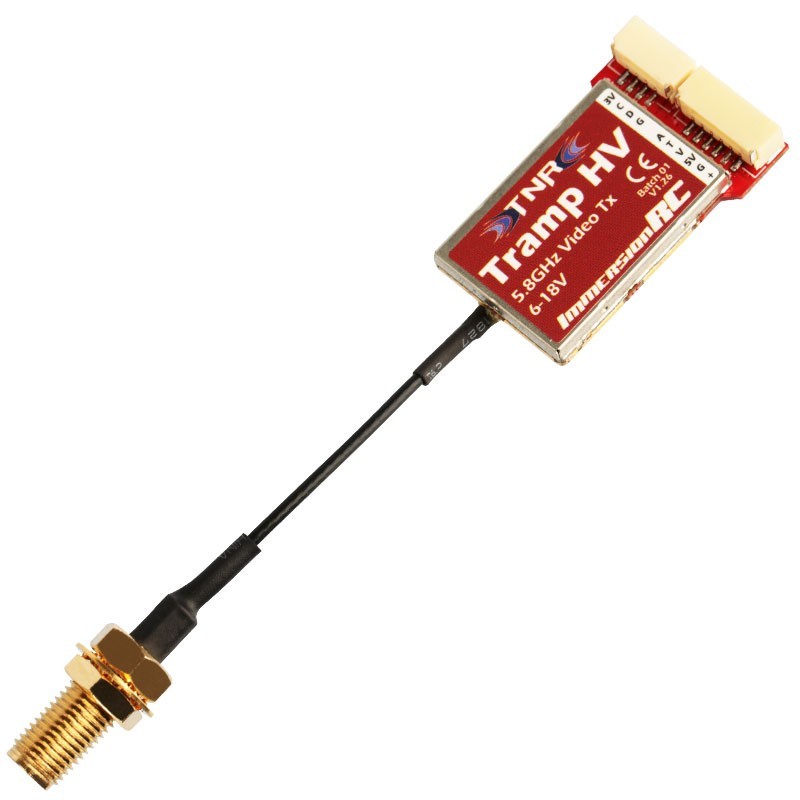

This is the smallest, lightest, high-power, high-voltage A/V Transmitter in the business, 31 x 20mm, with a slender 17mm waist, weighing only 4 grams!

Even at this size, the traditional ImmersionRC 5V filtered camera power supply is also included. Twin ground cables from the tiny locking connectors ensure that noisy supply currents keep the camera supply clean.

To cap it off, in addition to running directly from a 2s-6s* (HV) LiPo, the TrampHV will happily run from a 5V supply already available in the quad.

• Smallest direct LiPo powered vTx in the business.
• TNR Touch-free wand control
• Traditional button+LED control of frequency and power
• 1mW -> 600mW linear power control
• All 40 standard channels
• Built-in thermal protection
• Factory power normalization
• Glitch-Free frequency changes
• Micro-power pit mode
• Additional channels for race events (Race Wand only)
• Retail regional locking without opening package

PRODUCT SPECIFICATIONS

Initial Release Date: Sept 2016

Dimensions: L=32mm x W=20mm x H=8mm

Weight: 4g (Tx only, without SMA cable)

Power Output: Programmable, 1mW to > 600mW

Channels: 48 standard, arbitrary using race wand

RF Impedance: 50 ohms

RF Connector: U.FL

AV Connector: JST-GH, 6 pin, locking

TNR Connector: JST-GH, 4 pin, locking

Audio: Mono, Subcarriers on 6.0 and 6.5MHz (cloned)

Modulation: FM, Audio and Video

Pit Frequency: User/Race Organizer Definable

Video Impedance: 75 ohms

Power Requirements: 2s-6s HV Lipo (6s as of March 2017)

Power Consumption: ~4W max. @ 600mW, ~1.9W @ 200mW
