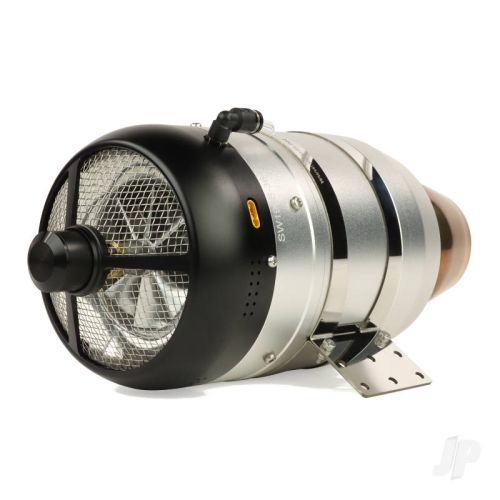

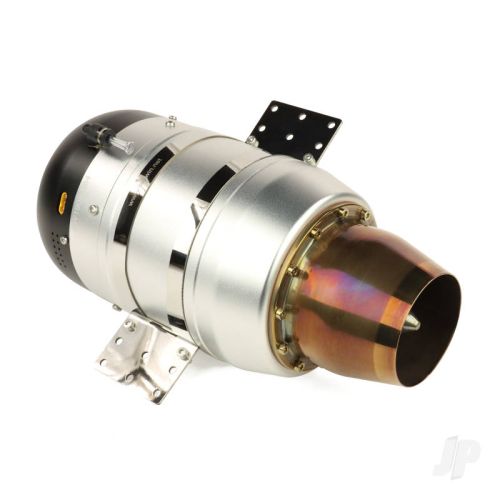

Swiwin SW190B Turbine Jet (19kg thrust) (SWWT190B-001)

Established in 2013 to design, develop and manufacture miniature turbine engines for the aircraft industry, the Swiwin Turbojet Company has been around more than long enough now to have honed its craft to perfection. And so it has. One look at the design, engineering, performance and overall quality of the engines in this ever-expanding range will tell the jet flying cognoscenti all they need to know. However, for those who aren’t quite so well informed we can begin by telling you that Swiwin’s latest generation of kerosene-fuelled auto-start turbines offer exceptional response times, brushless starter technology, telemetry functionality and, crucially, Greece servicing and repair.

Key Features

• Compact design.
• Brushless starter and telemetry functions.
• 32-bit auto restart ECU.

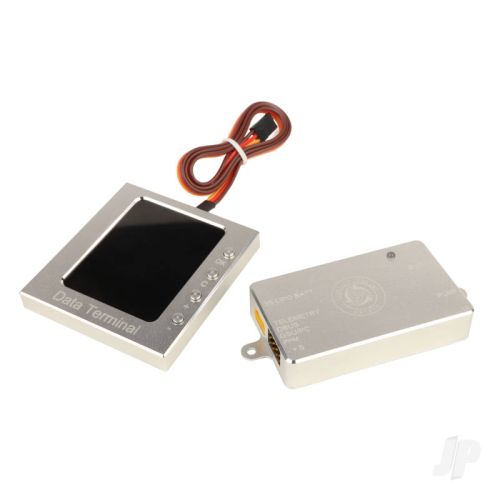

• Colour screen data terminal.
• CNC compressor wheel.
• Rapid throttle response.

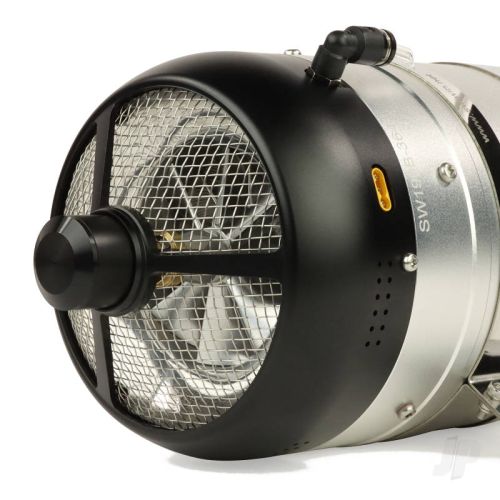

• Built-in FOD guard.
• Silver / black can.

SPECIFICATION:

• Diameter: 109.4mm
• Length: 258.0mm
• Weight: 1450g
• RPM range: 36,000 – 115,000
• Thrust: 190N / 19kg at 15°C
• EGT: 700°C max
• Fuel consumption: 550 g/min
• Fuel: Kerosene
• Lubrication: 5%
• Maintenance cycle: 25 hours
• Start: Full auto start
